ASSA ABLOY Flow control
Keep your footfall in line with ASSA ABLOY Flow Control

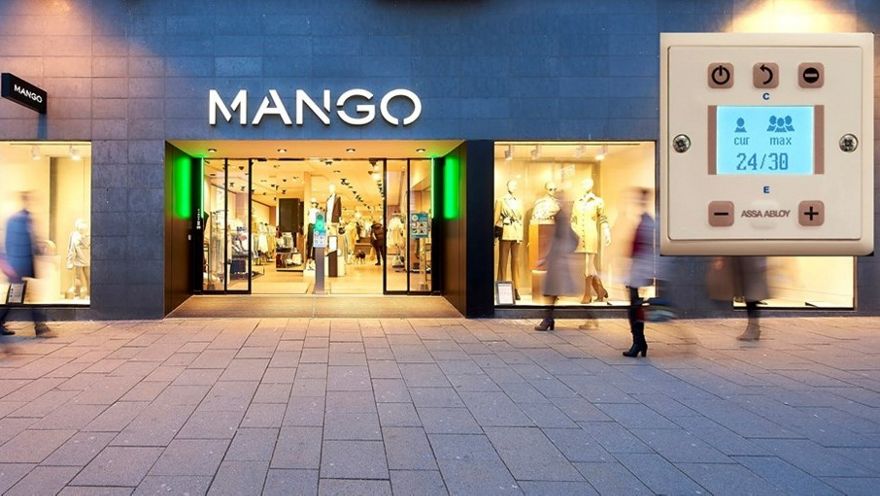

ASSA ABLOY Flow Control is an automatic people counting system designed for stores and shops. Track everyone who enters or leaves your store – using top-of-the-line sensor technology – and set maximum occupancy rates, with entry automatically blocked until enough visitors have left. ASSA ABLOY Flow Control is also able to connect up to four separate doorways – for unbeatable control and flexibility.
With ASSA ABLOY Flow Control, enjoy:
- Automatic safety procedures once maximum occupancy is reached
- +99% counting accuracy
- Quick and easy installation (between two and four hours)
- Clear signaling via green and red LED lights (IP65)
- GDPR compliance (DVSGO requirements)
- A solution designed to work with a variety of building management systems
- Installation height required is 2,100 – 3,000mm
- Maximum width of 2,100 mm and maximum height of 3,000 mm
- Minimum object height of 1,300 mm
- Maximum number of sensors which can be combined: 4
- Configuration layouts for multiple entry or exit doors
- Manually adjustable counting system (+/- buttons)
- On/Off button
- ASSA ABLOY BDE-D FC control unit
- Compatible with any ASSA ABLOY or third-party door which has built-in radar sensors (radar sensors with a BUS connection must be checked by a professional technician)
Installation requirements
- Power supply – 110-230 V AC, 50-60 Hz
- Indoor and outdoor LEDs (IP65)
- Time-of-flight 3D sensor technology
- Maximum distance between sensors: 60 m if you have four sensors; 100 m for three, and 120m for two
Product leaflet
