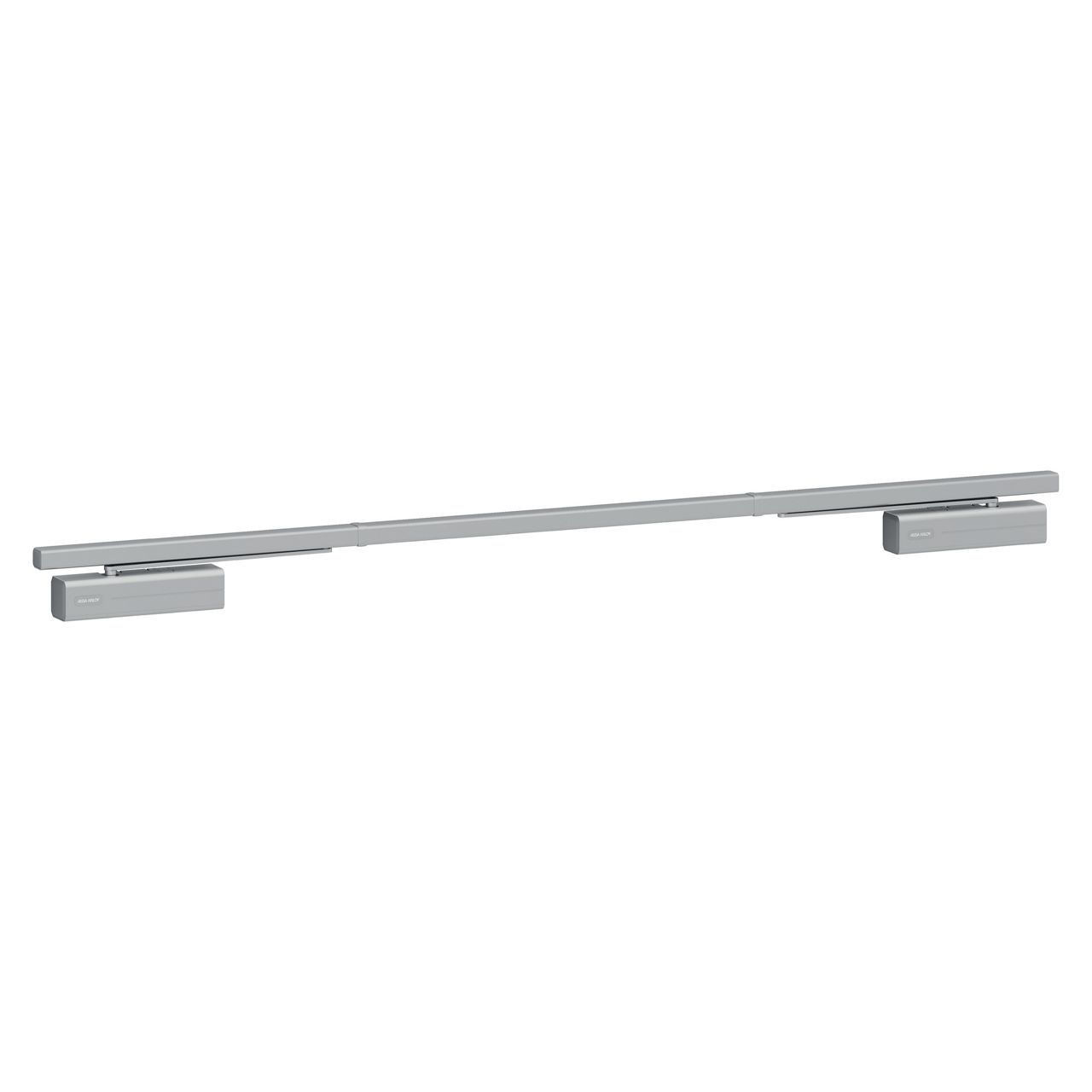

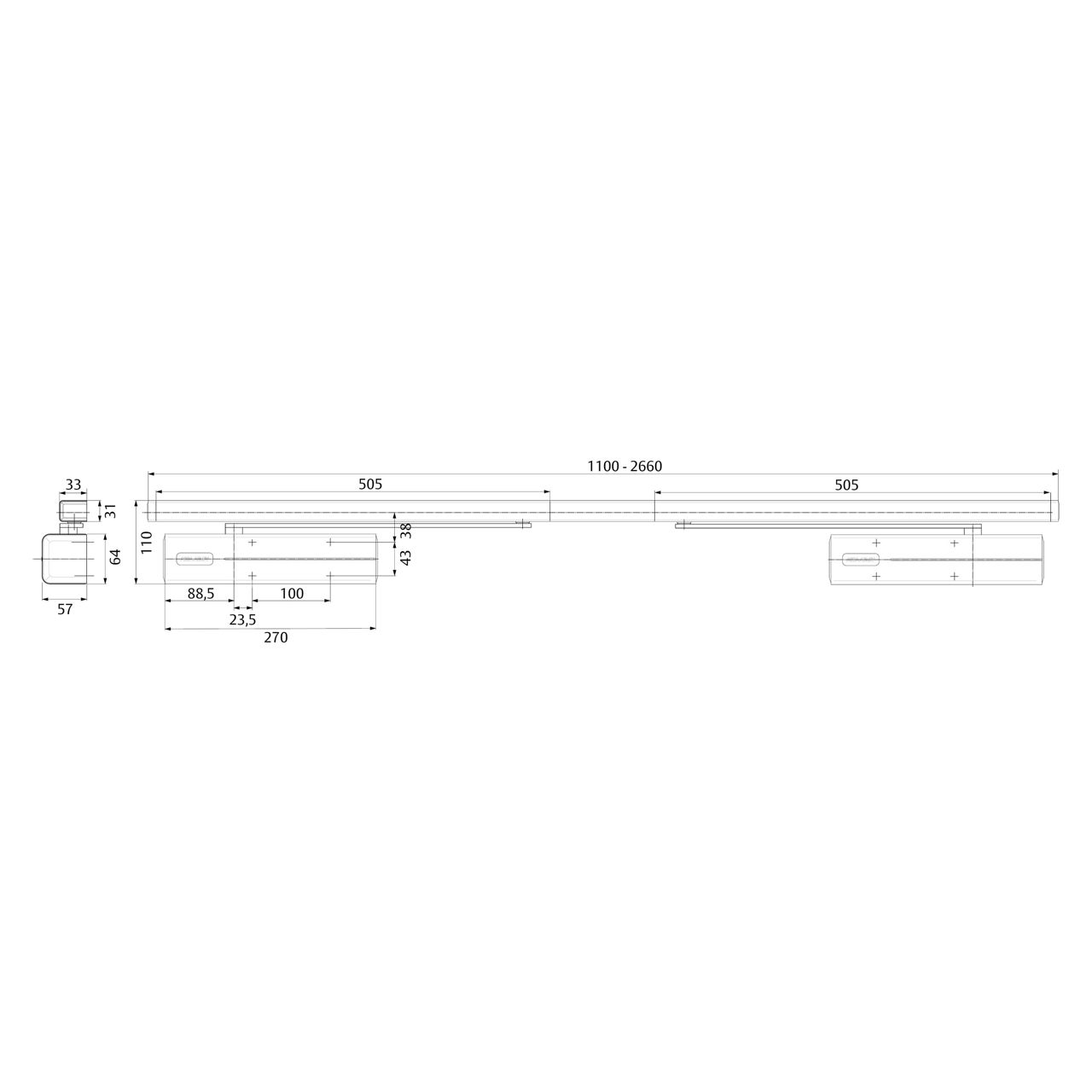

DC700 with G462 / G464 Cam-Motion^®

Door closer with Cam-Motion^® technology, integrated mechanical door coordinator and electro-mechanical hold-open device(s).

ASSA ABLOY DC700 with G462 / G464

• Door closer with Cam-Motion^® technology and gui- de rail with integrated mechanical door coordinator and two electromechanical hold-open devices for double-leaf doors
• Certified in compliance with EN1154, EN1155 and EN1158, size 3-6
• Operates independently of door closers and offers best possible functions, safety and reliability
• Suitable for fire and smoke protection double leaf doors, hinge distance 1350 - 2800 mm, non-hinge side installation hinge distance 1400 - 2800 mm

Characteristics of DC700 with G462 / G464

• Continuously adjustable holding force
• Correct closing sequence guaranteed for double leaf doors, inactive leaf closes before active leaf starts to close
• Standard mounting position on hinge side and non-hinge side
• Non-hinge side mounting requires hook arm G120
• Axis continuoulsy height adjustable up to 14 mm
• Large range of applications
• Standard colours: silver EV1; white, similar to RAL9016; brown, similar to RAL8014; black, similar to RAL9005, stainless steel
• Customised finishes available on request
• G462 hold-open angle adjustable between 70°-130° on hinge side and 70°-120° on non-hinge side
• G464 inactive door leaf hold-open angle adjustable between 70°-130° on hinge side and 70°-120° on non-hinge side

Characteristics of G462

• Integrated mechanical coordinator with two elec- tro-mechanical hold-open devices
• Possible to keep active leaf or both door leaves open

Characteristics of G464

• Integrated mechanical coordinator with one elec- tro-mechanical hold-open device
• Possible to keep both door leaves open
• Active leaf can stay open in any selected angle up to 150° when inactive leaf is open

Specification for G462 / G464

ASSA ABLOY guide rail with mechanical coordinator and electro-mechanical hold-open device for double leaf doors used with DC700 Cam-Motion^® technology door closers

• Hinge distance 1250 - 2800 mm
• Hold-open angle of inactive leaf adjustable between 70° - 130°
• Continuously adjustable holding force
• Correct closing sequence guaranteed for double leaf doors, inactive leaf closes before active leaf starts to close
• Standard mounting position on hinge side and non-hinge side
• Non-hinge side mounting requires hook arm G120
• Axis continuoulsy height adjustable up to 14 mm
• Large range of applications
• Possible to keep active leaf or both door leaves open (G462)
• Possible to keep both door leaves open (G464)

Accessories:

•  Mounting plate A115
•  Angle bracket A116
•  Angle bracket A117
•  Hook arm G120 for non-hinge side moun- ting
•  Carry bar A101 for hinge side installa- tions
•  Carry bar A102 for non-hinge side instal- lations
•  Smoke detector
•  Flush mounted or sur- face mounted release button
• Mechanical bearing A151, for double doors
•  Smoke protection de- tector A177
•  Flush mounted door release button A178
• Opening damper A191

Colour:

• Silver EV1
• White, similar to RAL9016
• Brown, similar to RAL8014
• Black, similar to RAL9005
• Stainless stee
• Customised finish
