Door Closer
Land plot CN2E in Maritime and Service Industrial Zone (DEEP C 2B), Dinh Vu – Cat Hai Economic Zone, Dong Hai 2 Ward, Hai Phong, Hai An District 180000

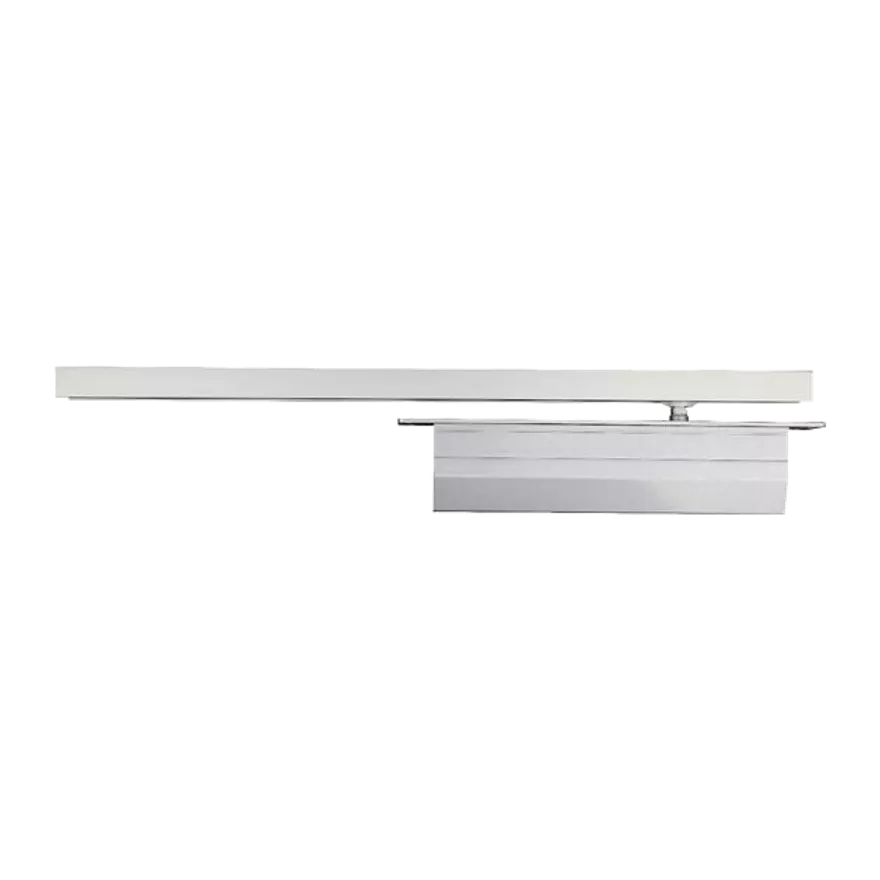

DC703
Key features:
- Concealed door closer with Rack and Pinion technology
- CE certified with EN1154, size EN3 and EN1634
- For single action doors up to 950mm
- Opening angle up to 120˚
- Single action with easy installation (Non-directional body to avoid any installation and adjustment mistakes)
- Suitable for wooden, metal and narrow profile aluminum door
- Powder coated finish, provides better reliability and better appearance
- Suitable for interior and external door application
- Optional 90˚ HO
- Standard colour: Silver
Closing Force Size EN3 Door width up to 950mm Fire and smoke protection Yes Door swing directions Non-handed Closing speed Variable between 120˚ - 15˚ Latching speed Variable between 15˚ - 0˚ Opening angle 120˚ Height 54mm Depth 32mm Length 215mm In compliance with EN1154 & EN1634
