Spacer plates
Product description
Spacer plate for striking plate as compensation for excessively large strike margin.

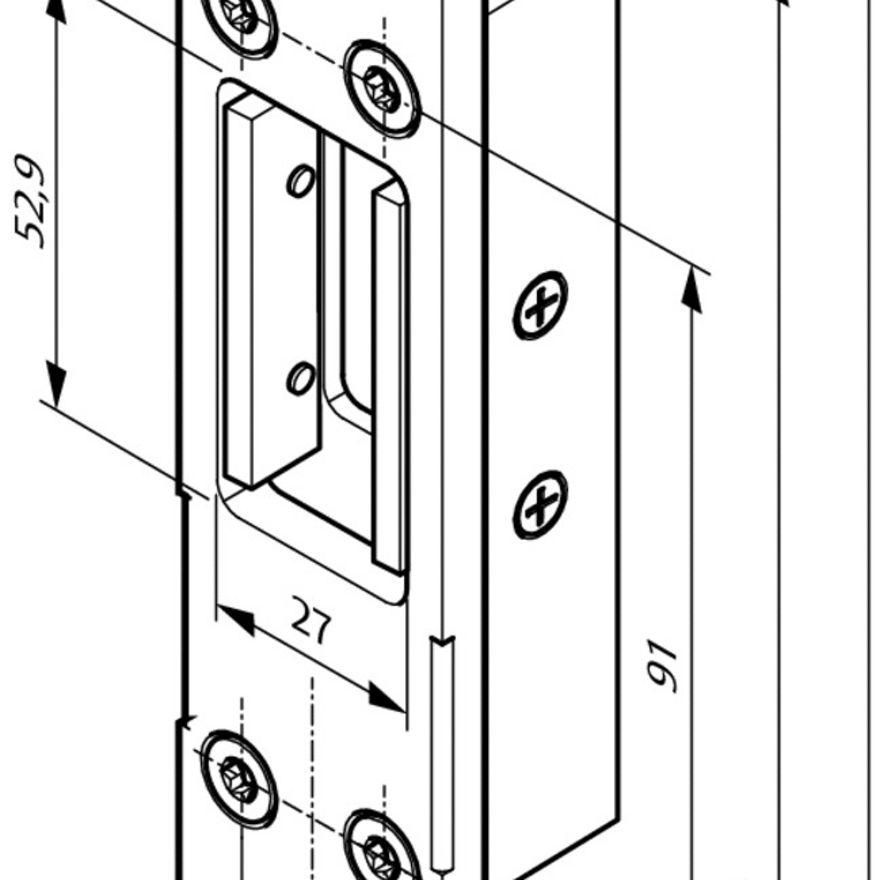

Replacement striking plate L4 (adjustable)
Product description
Adjustable L4 striking plate with integrated magnets suitable for Technilock® L4; Dimensions compatible with the Technilock® M4 striking plate
Overview of advantages
- DIN left and right usable
Scope of delivery
- 1 piece striking plate
Note
- *= plate build-up about 26.5 mm. Overall width: 63.5 mm
- *= material thickness + incl. build-up for bolt pocket: 3 mm striking plate shim
Version Adjustable Length 255 mm Width 37 mm Thickness 6 mm Case depth 3 + 18 mm* Color Stainless steel Material EST: 1.4301 DIN-direction Universal Product Order Number Replacement striking plate L4 - Adjustable, M4-compatible dimensions, DIN universal 844L4SBLM3---01
Similar products
Bolt case (30mm)
30 mm backset, only for Technilock® L4 variant without handle followerBolt case (35mm)
35 mm backset, only for Technilock® L4 variant without handle followerBolt case (40mm)
40 mm backset, only for Technilock® L4 variant without handle followerBolt case (60mm)
60 mm backset, only for Technilock® L4 variant without handle followerStriking plate box
Product description
For the mounting of the L4 striking plate with a length of 265 mm.
Scope of delivery
- 1 striking plate case
Security escutcheon
With core drawback protector; for Eurocylinder; nickel-plated matCircuit board
Potential-free contact; compatible with M4; only for Technilock® L4 variant without handle follower
