Flanged striking plate L4 (standard, right hand) | ASSA ABLOY

Product description

Flanged striking plate L4 standard with integrated magnets for Technilock^® 844L4

Overview of advantages

DIN right

Scope of delivery

1 piece striking plate

Note

*= material thickness + magnet build-up

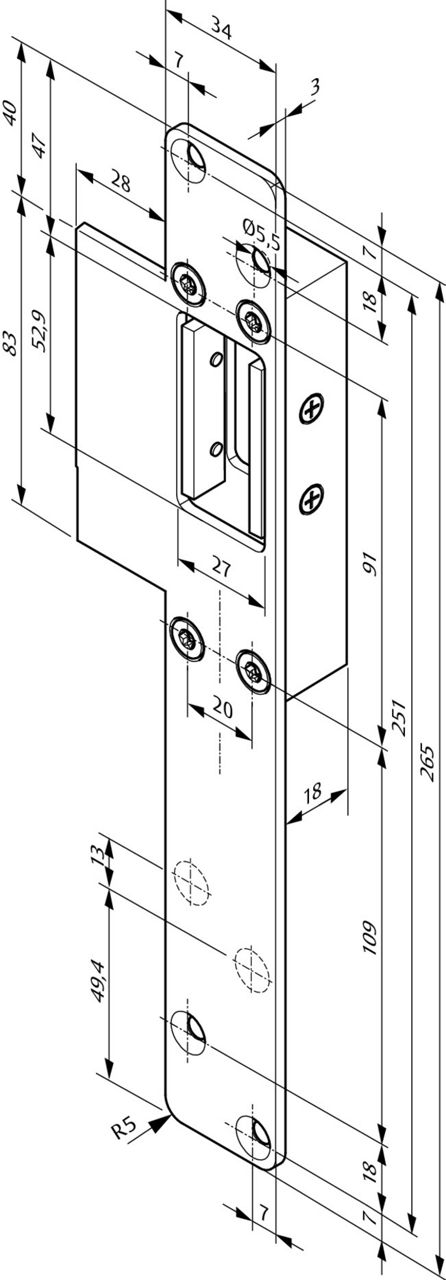

Flanged striking plate L4 (standard, right hand)

Version Standard, LAP
Length 265 mm
Width 34 mm
Thickness 3 mm
Case depth 3 mm + 3 mm*
Color Stainless steel
Material EST: 1.4301
DIN-direction Right
Product Sheet(PDF, 213 KB)
Product Order Number
Flanged striking plate L4 - Standard, flanged 28 mm, DIN right hand 844L4SBL2----05

Similar products

Spacer plates
Product description

Spacer plate for striking plate as compensation for excessively large strike margin.
Bolt case (30mm)
30 mm backset, only for Technilock^® L4 variant without handle follower
Bolt case (35mm)
35 mm backset, only for Technilock^® L4 variant without handle follower
Bolt case (40mm)
40 mm backset, only for Technilock^® L4 variant without handle follower
Bolt case (60mm)
60 mm backset, only for Technilock^® L4 variant without handle follower
Striking plate box
Product description

For the mounting of the L4 striking plate with a length of 265 mm.

Scope of delivery

1 striking plate case
Security escutcheon
With core drawback protector; for Eurocylinder; nickel-plated mat
Circuit board
Potential-free contact; compatible with M4; only for Technilock^® L4 variant without handle follower
