K20, KP20 Series Cabinet Lock
The cost effective solution for stand-alone access control to secure drawers or doors. The battery operated Cabinet Lock is the flexible, low cost cabinet locking solution for low to medium security applications with 75 lbs of holding force.
Product Features
- Supports 3rd party locking cams (i.e. hook)
- Stand-alone access control
- No audit trail
- K20 has 13.56 MHz RFID card technology
- LEDs indicate valid/invalid access
- Supports 1 to 20 master credentials
- Supports 1 to 20 user credentials
- Aluminium die-cast construction
- Non-handed
- Installs on wood or metal cabinet drawers or doors 1 to 23 mm thick

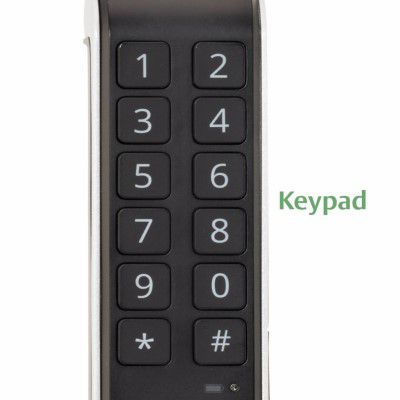

- KP20 has 12 button keypad
- KP20 Supports 1 (4 to 12 digit) master code
Keypad
Card Technology
- Card Technology [125 kHz]: NA
- Card Technology [13.56 MHz]: MIFARE CLASSIC|MIFARE Ultralite (CSN)
- Maximum Master Credentials: 20
- Maximum User Credentials: 20
- Card Reader Depth (in): 2.490
- Card Reader Height (in): 6.020
- Card Reader Width (in): 2.190
Keypad Technology
- Keypad Option: Yes
- Keypad Type: Pushbutton
- Maximum User Codes: 2
Electrical
- Power Source: Battery Operated
- Battery Type: "AAA" Alkaline Batteries
- Battery Cycles: 30000
- Number of Batteries: 3
- Battery Backup: Yes- MicroUSB for Emergency Power
Environmental
- Operating Humidity: 0 to 90%
- Maximum Operating Temperature (° F): 122
- Minimum Operating Temperature (° F): 32
Certifications & Listings
- Fail Safe | Fail Secure: Fail Secure
- Certified: No
- RoHS Compliant: Yes
- FCC & IC Compliant: Yes
Application
- Door Material: Wood|Metal
- Door Type: Swinging|Sliding
Strength & Durability
- Static Strength (lbs): 75
General
- Handing: Non-handed
- Credential Type: Card or Keypad
- Audit Capabilities: No audit trail
- LED: Multi-color LEDs
- LED Indicates: Valid/ Invalid Entry
