Works with a wide range of locks due to deeper than normal strike area
Can be set up to fail safe or fail secure on site, for flexibility
Suitable for 18mm latch
Extension lips available to enable installation on door frames with different thicknesses
Optional mounting kit available
Voltage tolerance: 12 and 24v DC
Solenoid: Rated for Continuous use
Name | Value |
---|---|
Current Draw | 243 MA @ 12Vdc - 187mA @ 24Vdc |
Dimensions (mm) | 220 60 40 |
Door Leaf Material | Timber Metal |
Electric Locking Function | 12v 24v |
Electric Locking Types | Wired |
Finish Type | Stainless Steel |
Fire Rated | No |
Holding force (kg) | 680 |
Operating Temperature | 20 To 60 |
Product Subtitle | Introducing The ES110 Series, A Robust Electric Strike Designed For High Security And Reliability. Crafted From Solid Cast Aluminium With A Stainless Steel Striker, It Ensures Durability. Its Versatile Design Accommodates A Wide Range Of Locks And Can Be Configured For Fail Safe Or Fail Secure Operation, Offering Ultimate Flexibility. |
Side Load Force | N A |
Standard | Ce, EN 61000 6 1, EN 61000 6 3, Ukca, Ul1034 |
Product | Product ID | Attributes |
---|---|---|
ES110 series | 110111-060M | Duty: Fail Safe Faceplate: Ansi Short And Ansi Long |
ES110 series | 110111-150M | Duty: Fail Safe Faceplate: Square Corner Lipless |
ES110 series | 110111-160M | Duty: Fail Safe Faceplate: Square Corner And Ansi Long |
ES110 series | 110111-190M | Duty: Fail Safe Faceplate: Ansi Short And Ansi Long Lipless |
ES110 series | 110112-060M | Duty: Fail Secure Faceplate: Ansi Short And Ansi Long |

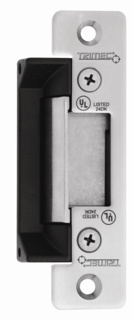

ES110 series | 110112-140M | Duty: Fail Secure Faceplate: Square Corner |
