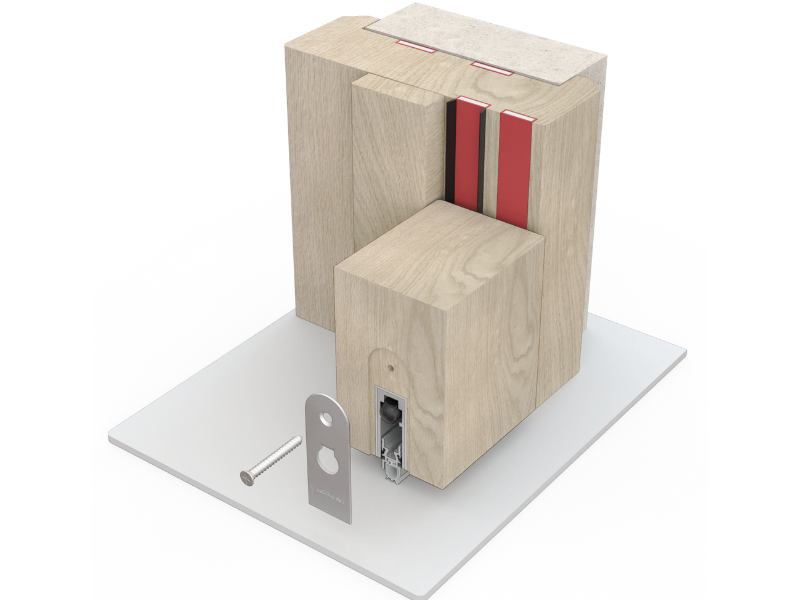

Our DS door seal offers the ultimate in acoustic, smoke + fire protection, with the added benefit of thermal containment. Its unique design means that whichever way round the product is installed, the seal can always be fitted in the correct place, maintaining the integrity of the acoustic + smoke seal at the ironmongery points.
A range of sizes to cover 30, 60, 90 + 120 minute applications, the DS seal also includes integral antimicrobial protection.
Note: The limitations of the printing process mean the colours + finishes shown here may not be exactly the same as the seals supplied. Request free samples to assist in colour matching.
Name | Value |
---|---|
BBA | 92 2841 |
Certifire | Cf330 |
Height (mm) | 4 |
IFC | Frpp454 |
Location | Double Leaf Door, Single Leaf Door |
Material | Flexible Elastomeric Fins, Pvc Encased Sodium Silicate |
Min/Max Gap Sizes (mm) | 3mm 4mm |
Performance | Meets Smoke Requirement Of Bs 99992017 |
SKU | Ds acoustic smoke fire seal |
Standard | Bs 476221987, Bs 4763111983, EN 163412008, EN Iso 1014022010 |
LP1004, LP1504, LP2004, LP2504
