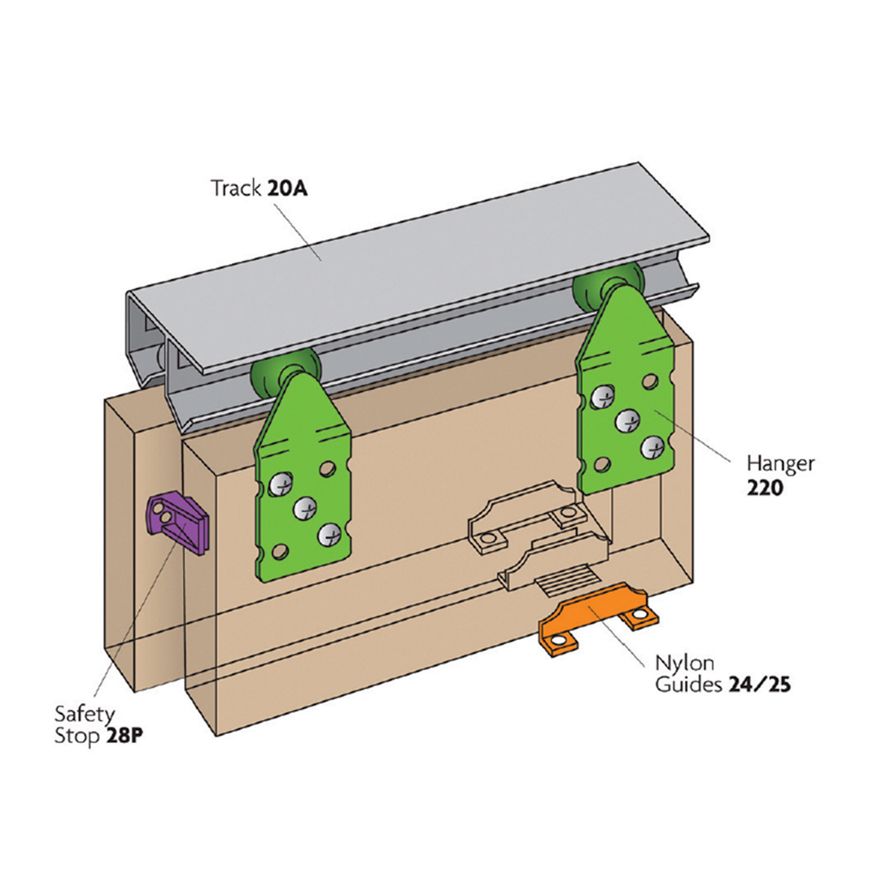

Double Top
Application:
- For heavy duty applications - wardrobes, cupboards, in
- hotels, schools and offices
- For timber, timber framed or composite doors
- Silent - nylon wheeled bearing hangers and aluminium track
- Easily adjusted door height
- Floor component - Nylon
- Guide with channel available as a non standard option
Specification:
- Maximum door weight: 45kg
- Maximum door width: 900mm
- Maximum door height: 2400mm
- Door thickness: 16-40mm
Kit Door Width 27-792277 Double Top Kit W12 - 2 Leaves - Max 1200mm 27-792291 Double Top Kit W15 - 2 Leaves - Max 1500mm 27-792318 Double Top Kit W18 - 2 Leaves - Max 1800mm 27-792332 Double Top Kit W24 - 3 Leaves - Max 2400mm 27-792356 Double Top Kit W30 - 4 Leaves - Max 3000mmm
