J-Series Single Door Panic Hardware
Variations

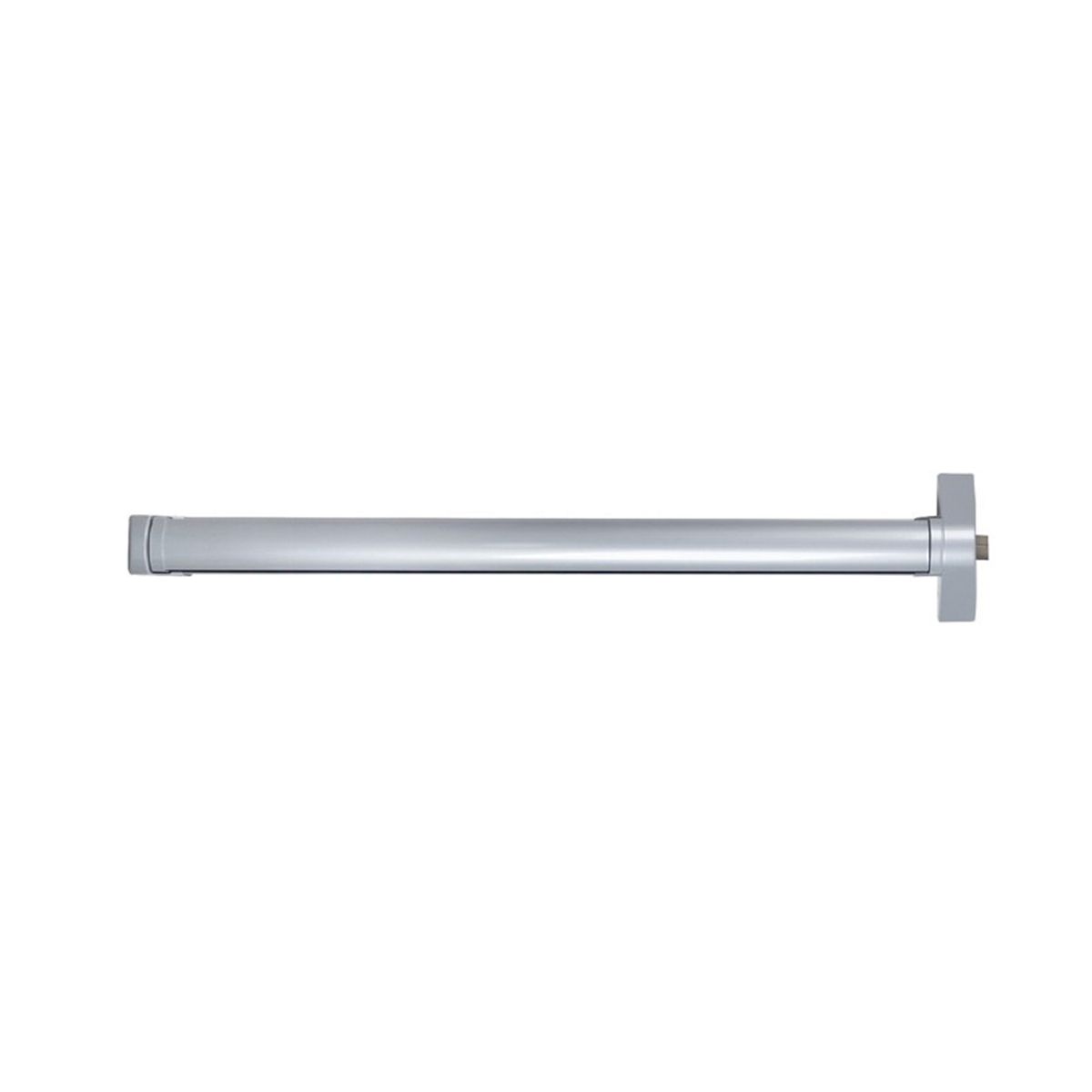

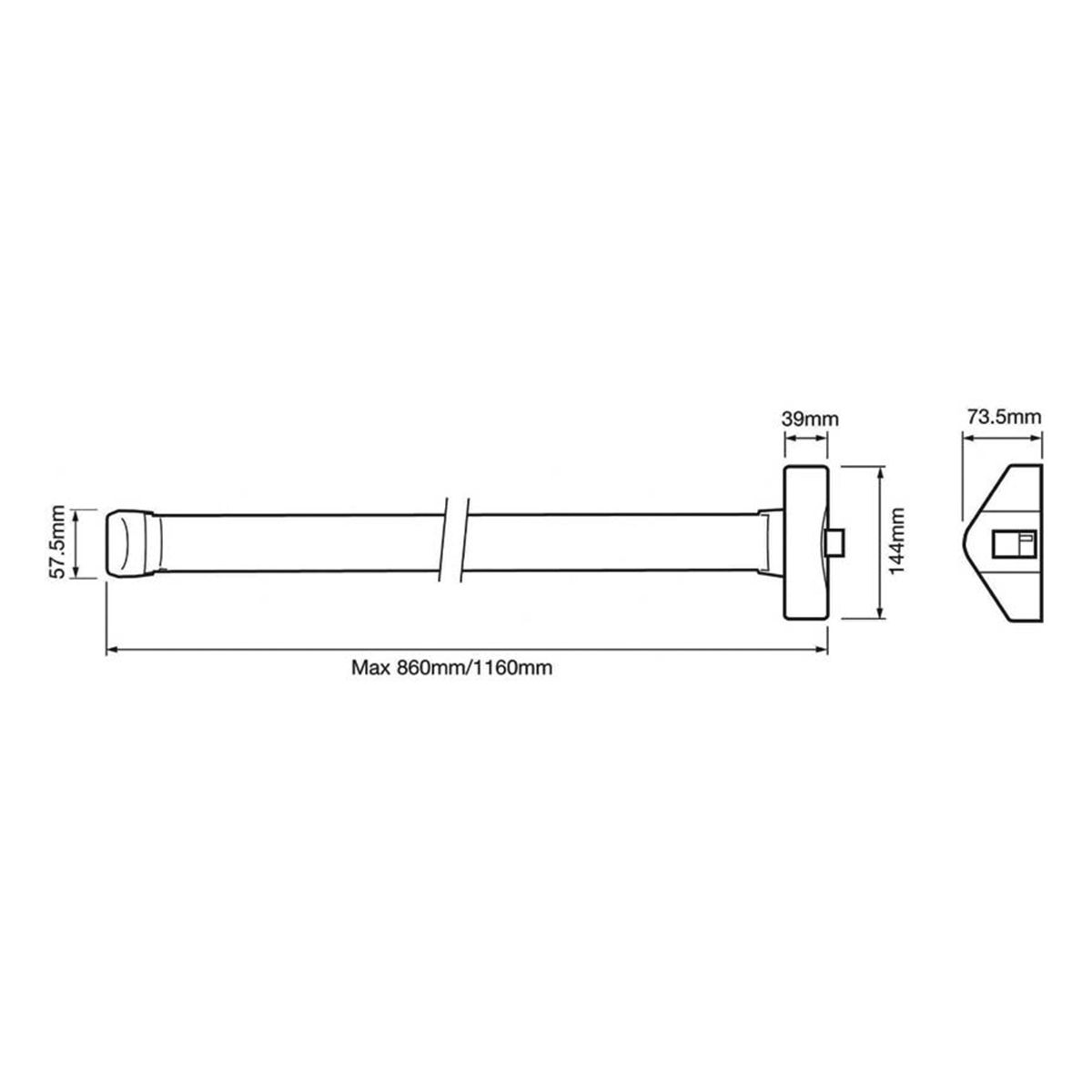

Variant 1
UNION
J-881-SIL (900mm)
J-881-W-SIL (1200mm)
Technical Attributes
Single point lateral locking touch bar
Max. door width 900mm/1200mm
Max. door height 2350mm
Anti-thrust steel deadlatch
Optional outside access device:
J-885-SIL
Certification
BS EN 1125
3 | 7 | 6 | B | 1 | 3 | 2 | 2 | A | A

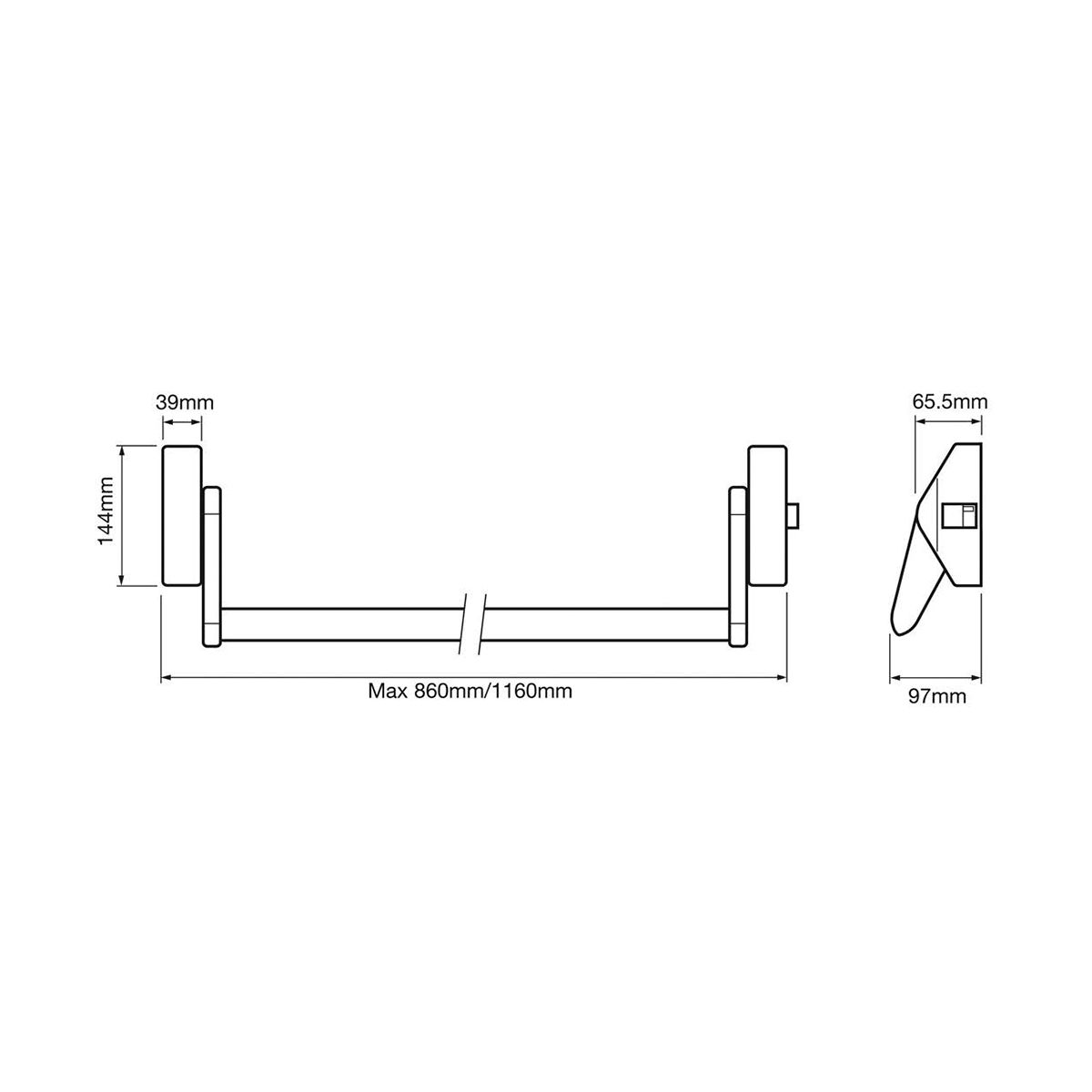

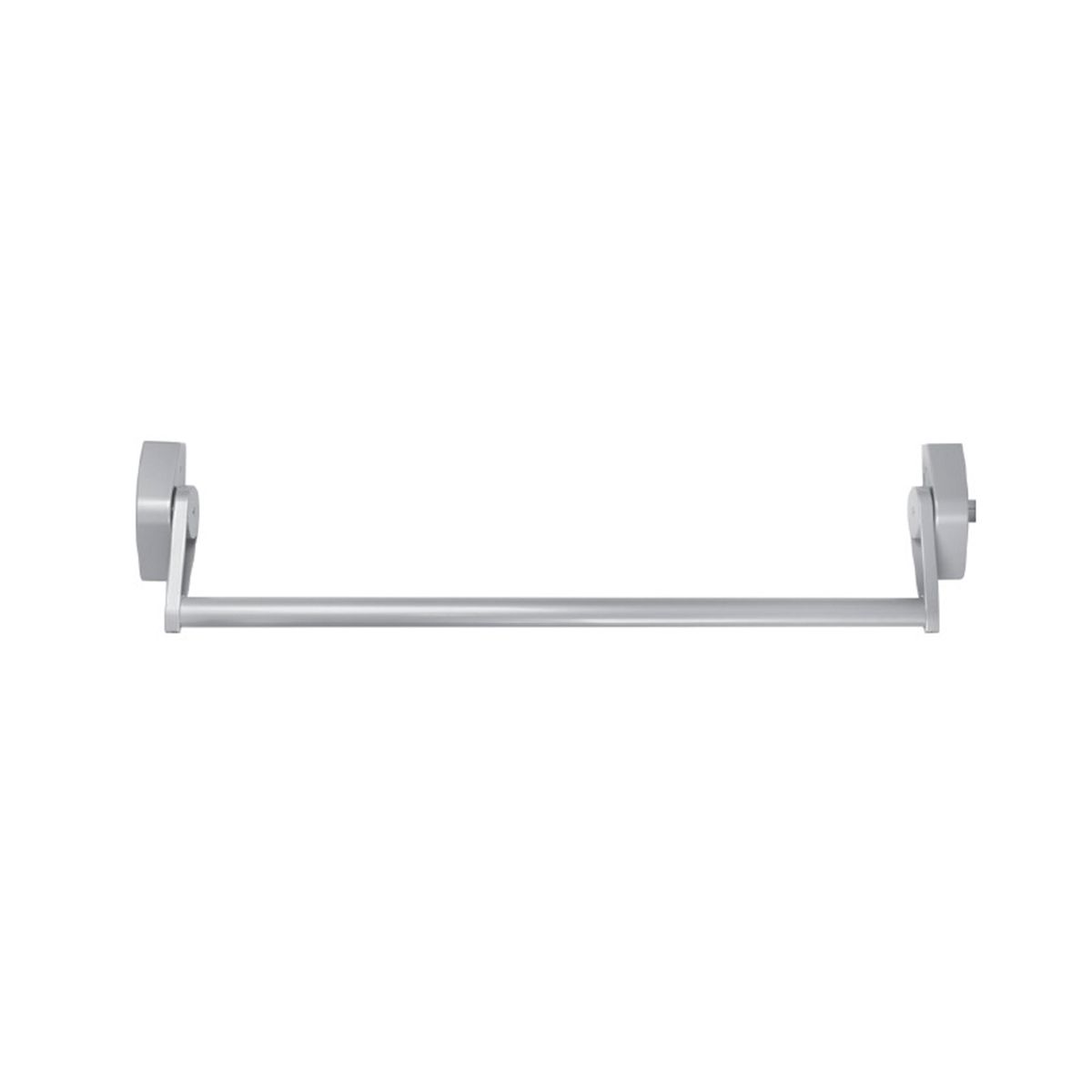

Variant 2
UNION
J-881TD-SIL (900mm)
J-881TD-W-SIL (1200mm)
Technical Attributes
Single point lateral locking touch bar
Low projection touch bar
Max. door width 900mm/1200mm
Max. door height 2350mm
Anti-thrust steel deadlatch
Integrated dogging device
Optional outside access device:
J-885-SIL
Certification
BS EN 1125
3 | 7 | 6 | B | 1 | 3 | 2 | 2 | B | A

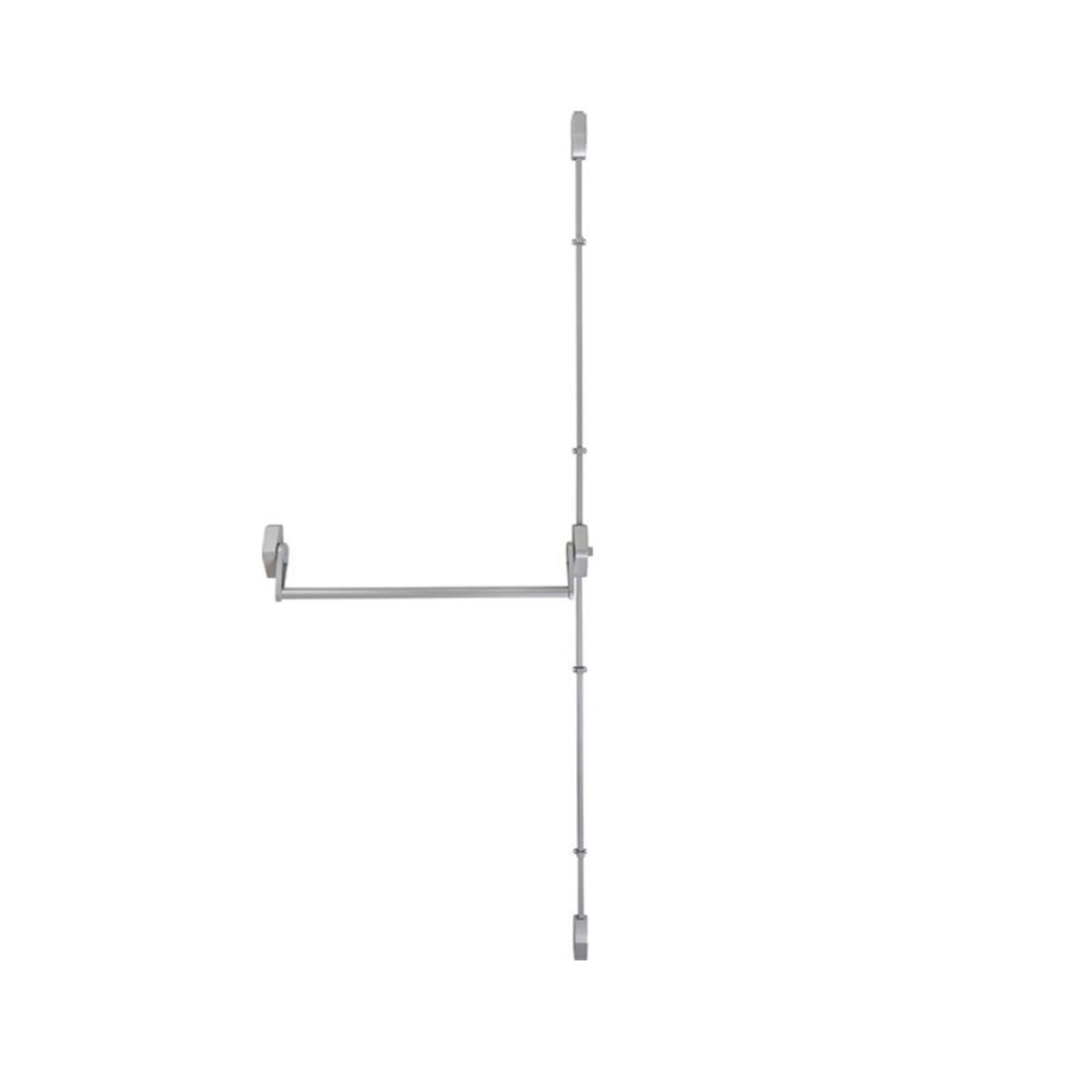

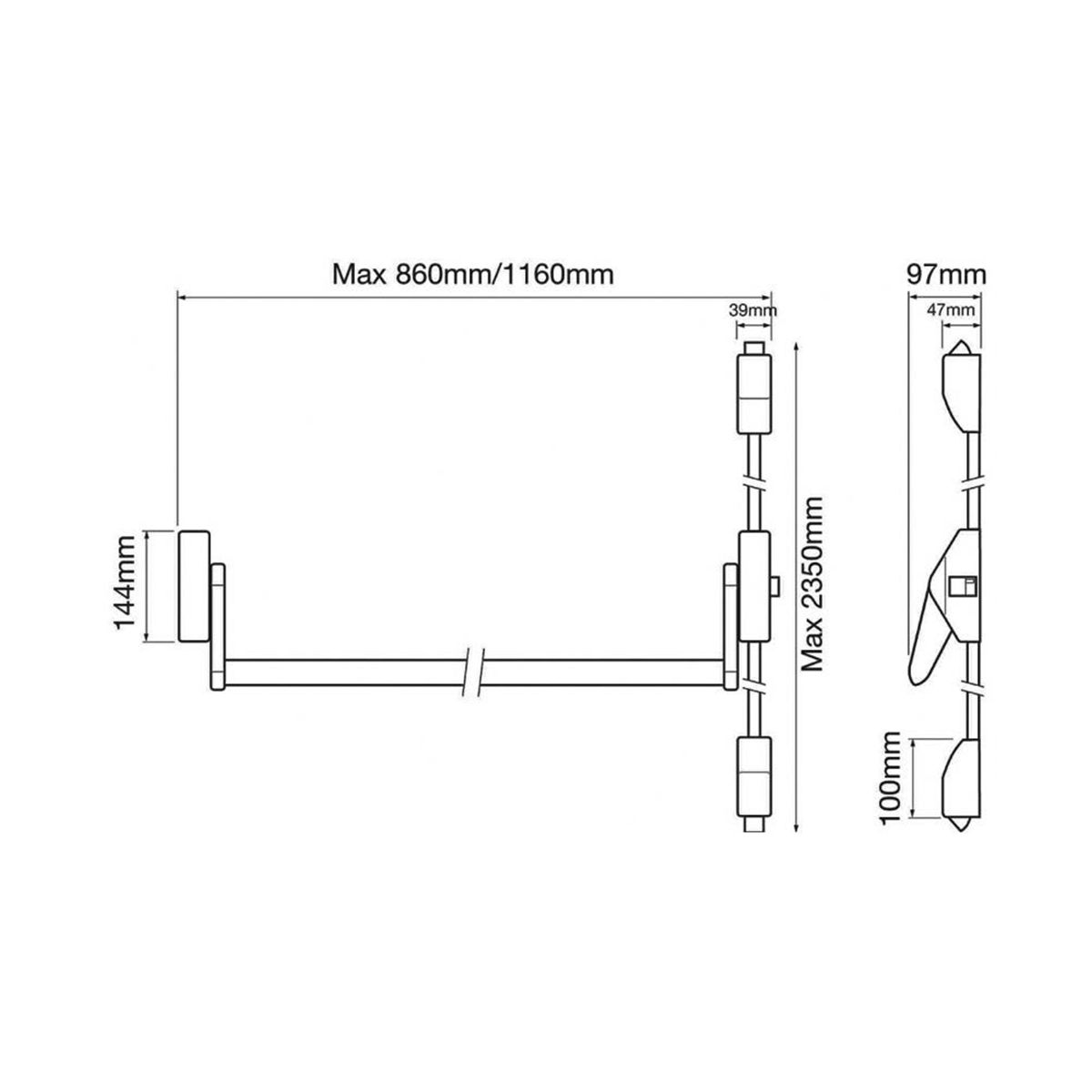

Variant 3
UNION
J-882-SIL (900mm)
J-882-W-SIL (1200mm)
Technical Attributes
Suitable for non-rebated double doors (will require 2 units)
3 point locking
Max. door width 900mm/1200mm
Max. door height 2350mm
Anti-thrust steel deadlatch
Optional outside access device:
J-885-SIL
Certification
BS EN 1125
3 | 7 | 6 | B | 1 | 3 | 2 | 2 | A | A

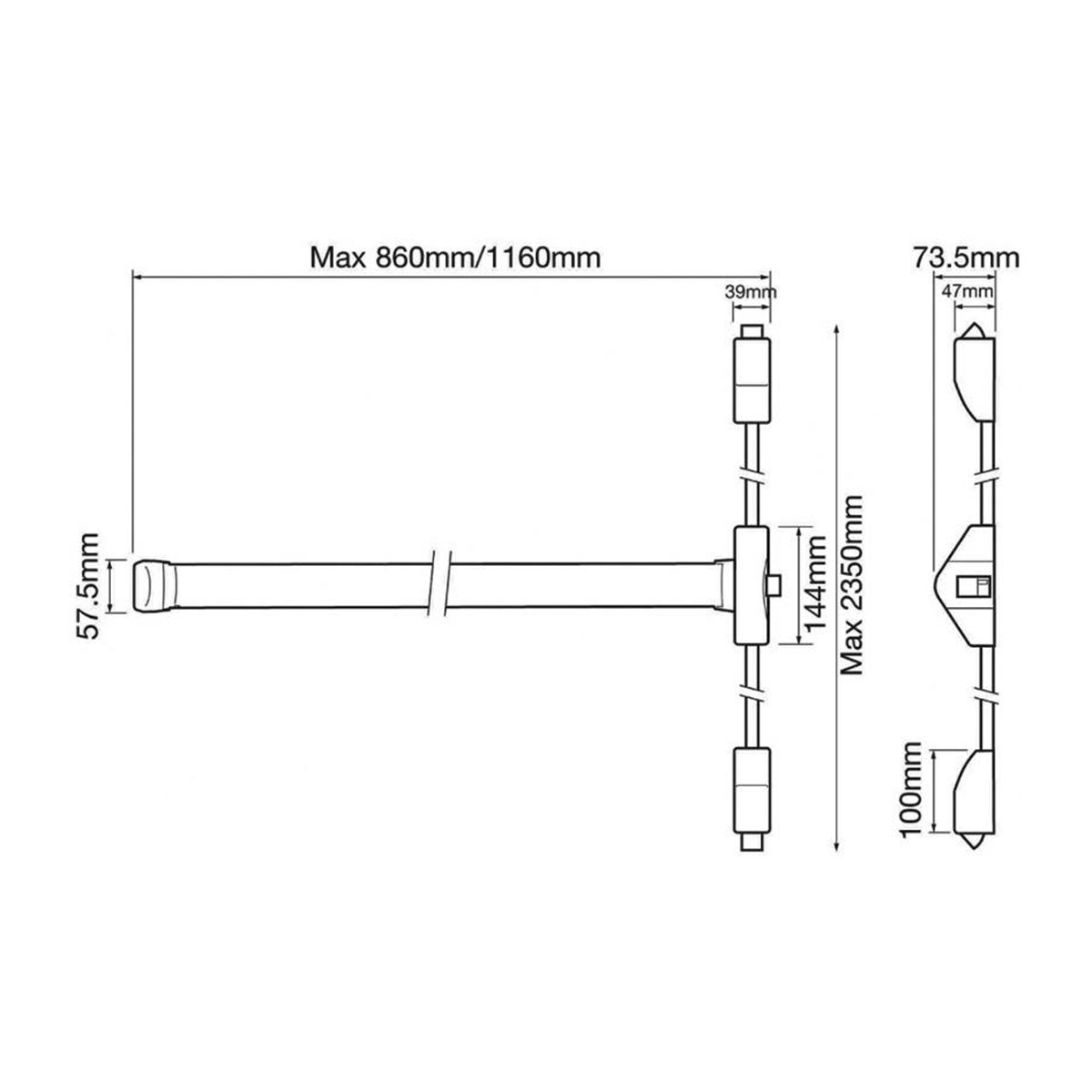

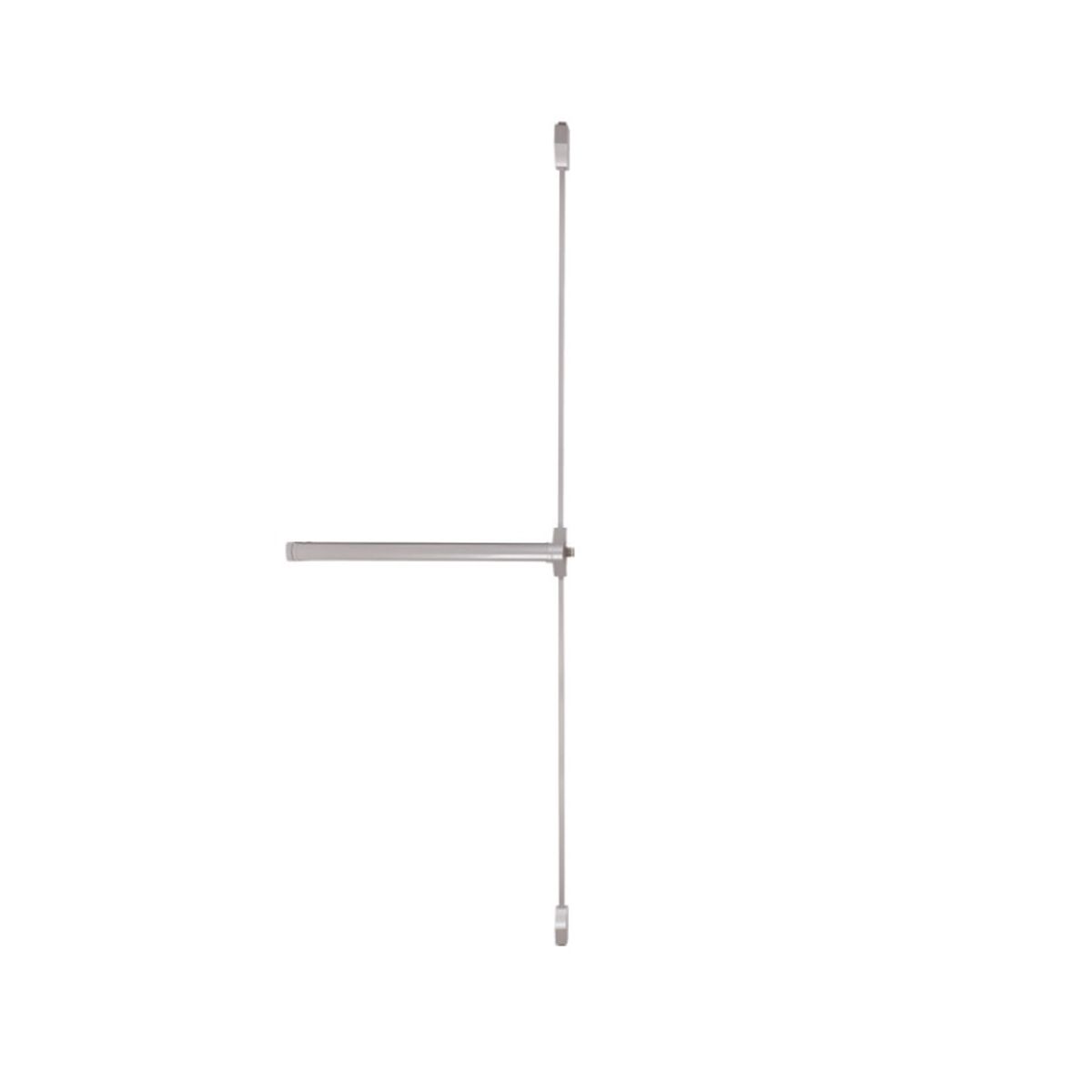

Variant 4
UNION
J-882TD-SIL (900mm)
J-882TD-W-SIL (1200mm)
Technical Attributes
Suitable for non-rebated double doors (will require 2 units)
3 point locking
Low projection touch bar
Max. door width 900mm/1200mm
Max. door height 2350mm
Anti-thrust steel deadlatch
Optional outside access device:
J-885-SIL
Certification
BS EN 1125
3 | 7 | 6 | B | 1 | 3 | 2 | 2 | B | A
