FD461-DC500
Variations
- ASSA ABLOY-FD461-DC500
- EN 1-4
Technical Attributes

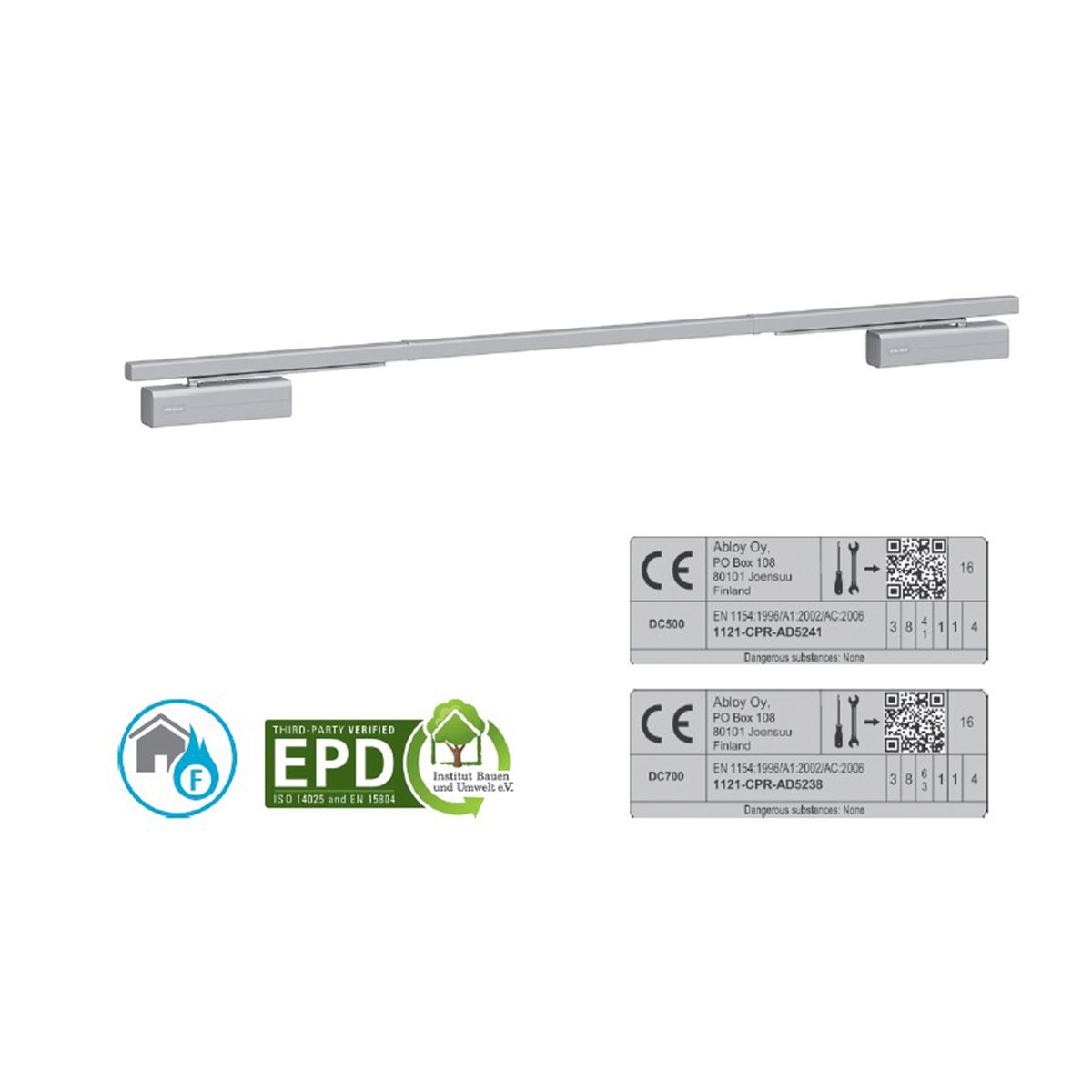

- Door closer with Cam-Motion® technology and guide rail with integrated mechanical coordinator
- Certified in compliance with EN 1158, size 1-4
- For double leaf doors 1250 - 2800mm wide
- Correct closing sequence guaranteed for double leaf doors,
- inactive leaf closes before active leaf starts to close
- Active leaf able to stay open in any selected angle up to 150° when inactive leaf is open
- Suitable for fire and smoke protection doors
- Adjustable closing speed, latching speed and backcheck
- Variable adjustable closing force
- Opening angle of active leaf (hinge side / non-hinge side) 150° /
- 120° Opening angle of inactive leaf (hinge side / non-hinge side)
- 170° / 120°
