Description:

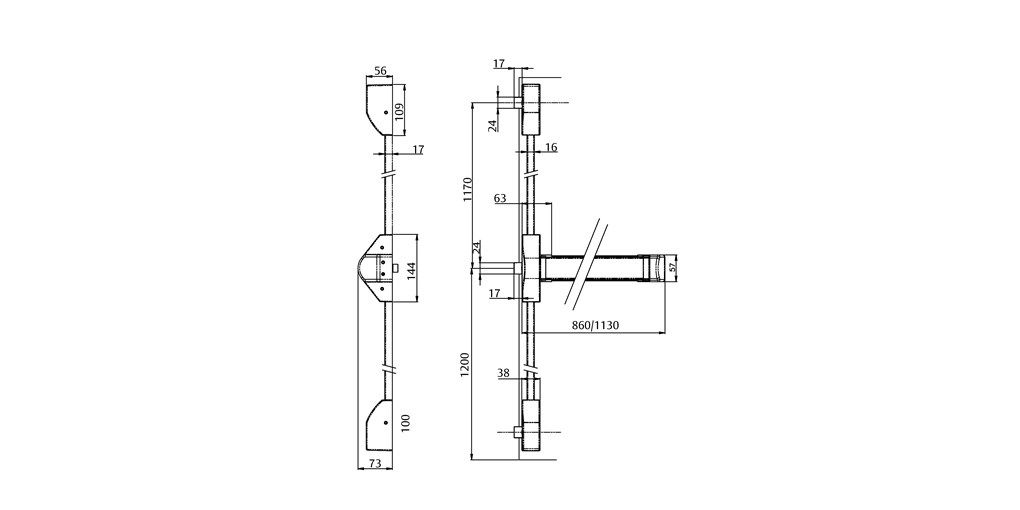

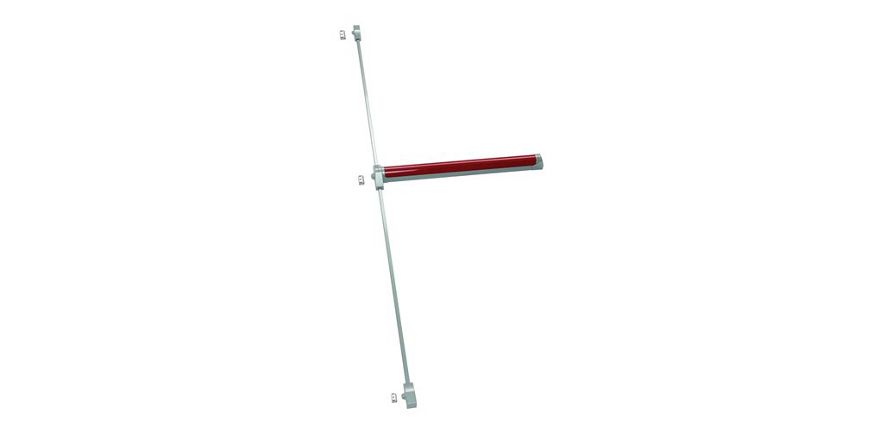

- Set of PED composed of Modular Push Bar and kit for 2/3 lateral locking points
Characteristics:
- Modular push bar type
- For fire and smoke applications
- High durability 2,00,000 cycles
- One central locking point
- For one or double leaf door up to 200 kg
- For all types of door
- For doors up to 1200mm width in standard
- For doors up to 1400mm width in option
- Steel pulman latch in standard
- Dead latch in standard
- Steel or zinc alloy swing latch
- Zinc alloy cover 38mm width
- Aluminium touch bar 1046mm long
- Bar to be cut
- 73mm projection
- HO function in option
- Micro switch version in option
Characteristics of PED 300+PED/GL:
- Set of rods, rod covers and lateral latches
- To fit modular cross bar
- For 2 lateral locking points installation
- For one or double leaf door
- For doors up to 2350mm high in standard
- For doors up to 3200mm high in option
- Steel pulman latches
- Dead latches in standard
