Description:

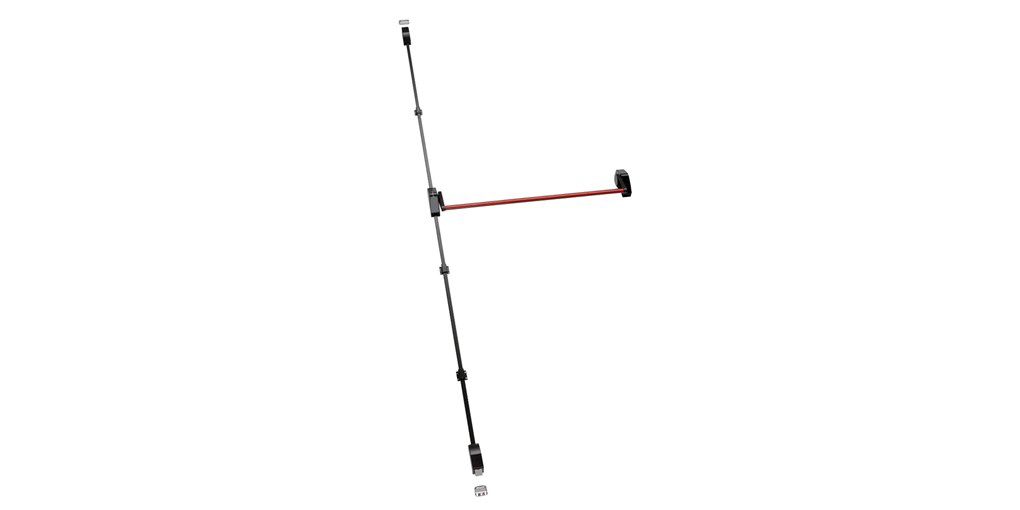

- Set of 2/3 locking points PED composed of Modular Cross Bar and kit for 2 vertical locking points
Characteristics:
- Modular cross bar type
- For fire and smoke applications
- High durability 2,00,000 cycles
- One central locking point
- For one or double leaf door up to 200 kg
- For all types of door
- For doors up to 1200mm width in standard
- For doors up to 1400mm width in option
- Dead latch in standard
- Steel swing latch
- Zinc alloy or s/steel cover 38mm length
- Steel or s/steel bar 1075mm long
- Bar to be cut
- 97mm projection
- HO function in option
- Micro switch version in option
Characteristics of PED/GV:
- Set of rods, rod covers and lateral latches
- To fit modular cross bar
- For 2 lateral locking points installation
- For one or double leaf door
- For doors up to 2350mm high in standard
- For doors up to 3200mm high in option
- Steel pulman latches
- Dead latches in standard
