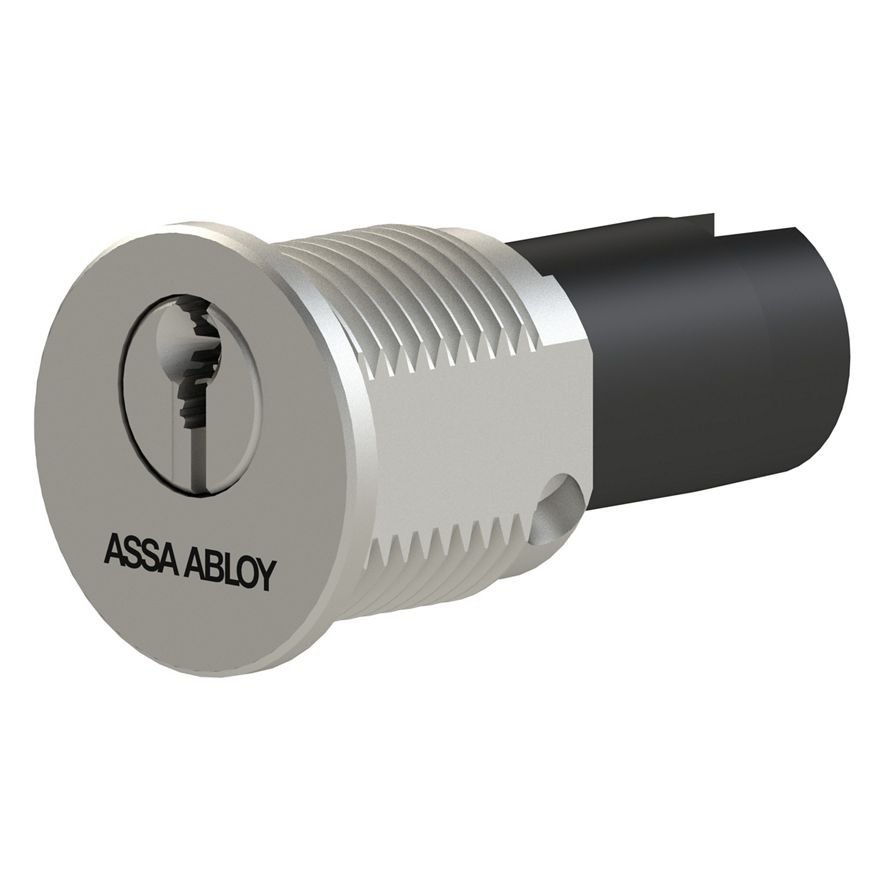

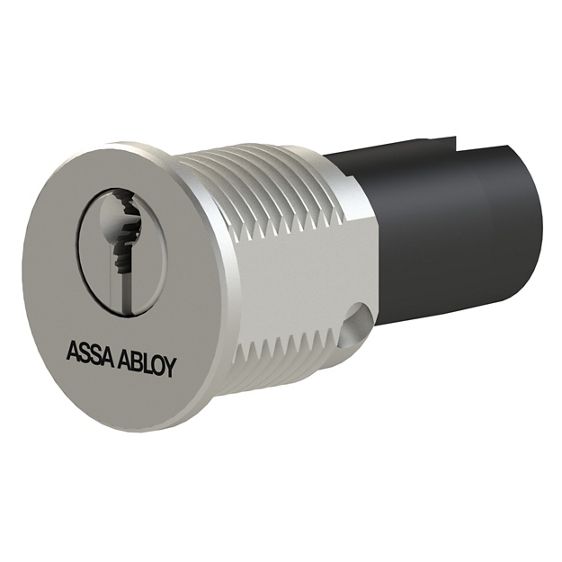

The CYS10 Switch Cylinder is designed for switchboxes, control panels and similar applications.
To unlock, a keyholder turns their key through 90 degrees, left or right, to complete the electrical circuit. The left/right setting can be adjusted with one screw on the cylinder.
Applications:
Feature | Detail |
---|---|
Security | EN 1303:2015 tested, 1 6 – B – C 6 0 |
Attack resistance | Anti-pick | Anti-bump (for MKS consult your master key specialist) |
Number of keys | MKS and KA: according to order | KD: 3 |
Max. number of effective key differs | 144,729 |
Max. number of MKS profiles | 63 |
Number of pins | 6 |
Raw material | Brass, Plastic |
Finish | Satin Nickel |
Dimensions | Face diameter: 32 mm | Body diameter: 26.9 mm | Length: 56 mm | Thread form: M27x1 mm |
Weight | 165 g |
