DC500
Product description
Door closer with Cam-Motion
®
technology and height adjustable guide rail G195
Fulfils barrier-free building requirements (EA / CEN TR 15894)
Certified in compliance with EN 1154, size 1-4
For single action doors up to 1100 mm wide
Can be used in four installation types: hinge and non-hinge sides in standard and frame installation
Suitable for fire and smoke protection doors
Characteristics Door closer with Cam-Motion
®
technology and height adjustable guide rail G195
Can be used with concealed mounting plate, suitable for fire and smoke protection doors
Can be used for left and right-handed doors
Axis continuously height adjustable up to 14 mm
Closing speed, latching speed and backcheck adjustable via front facing regulating valves
Thermodynamic valves for consistent performance
Variable adjustable closing force
Opening angle up to 160°
Effective backcheck and latching speed range adjustable
Large range of applications
Standard colours: silver EV1; white, similar to RAL9016; brown, similar to RAL8014; black, similar to RAL9005, stainless steel
Customised finishes available on request
Characteristics for guide rail G195
Height adjustable by 2 mm for tolerance
Concealed fastening screws
Show more

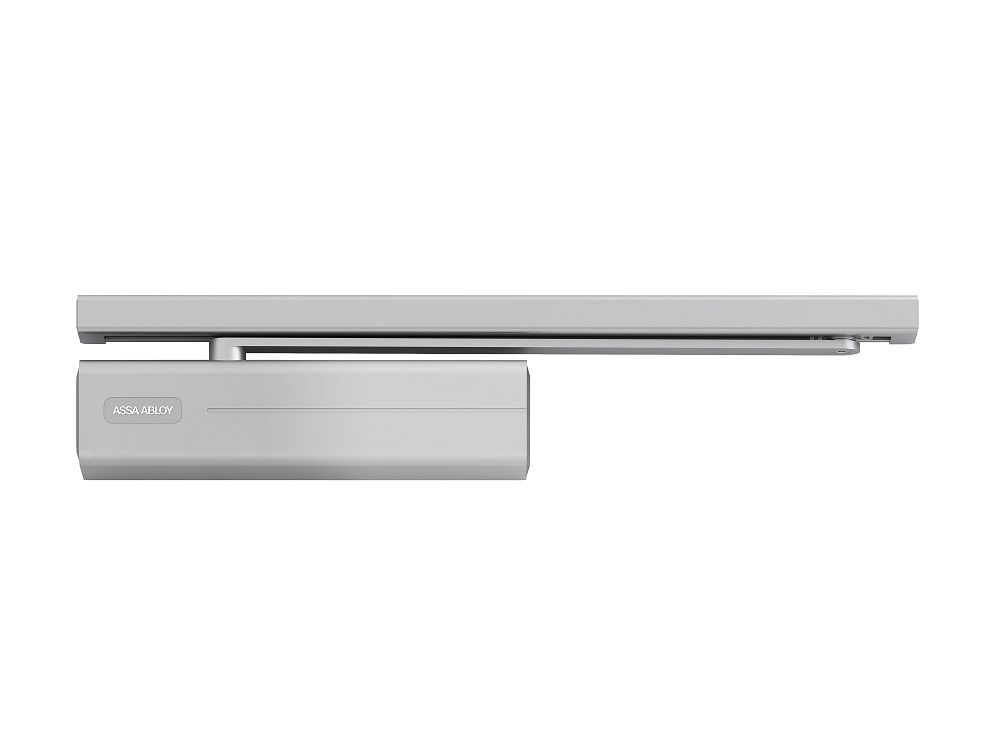

DC500 Guide Rail - Silver

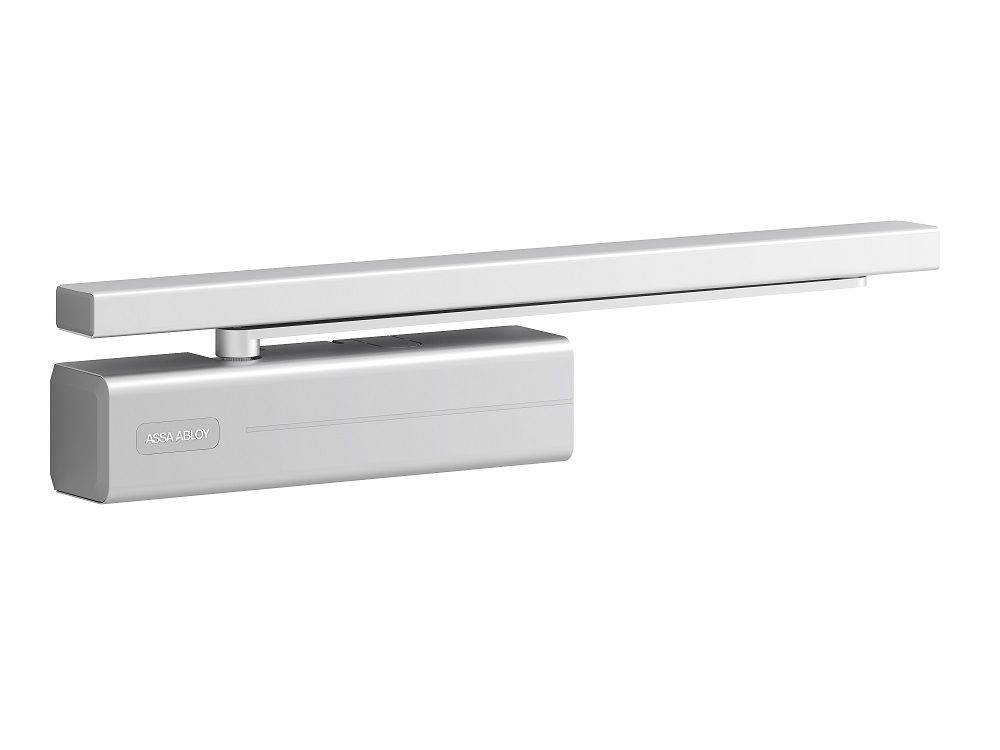

DC500 Guide Rail - Silver
DC500 Guide Rail - Silver

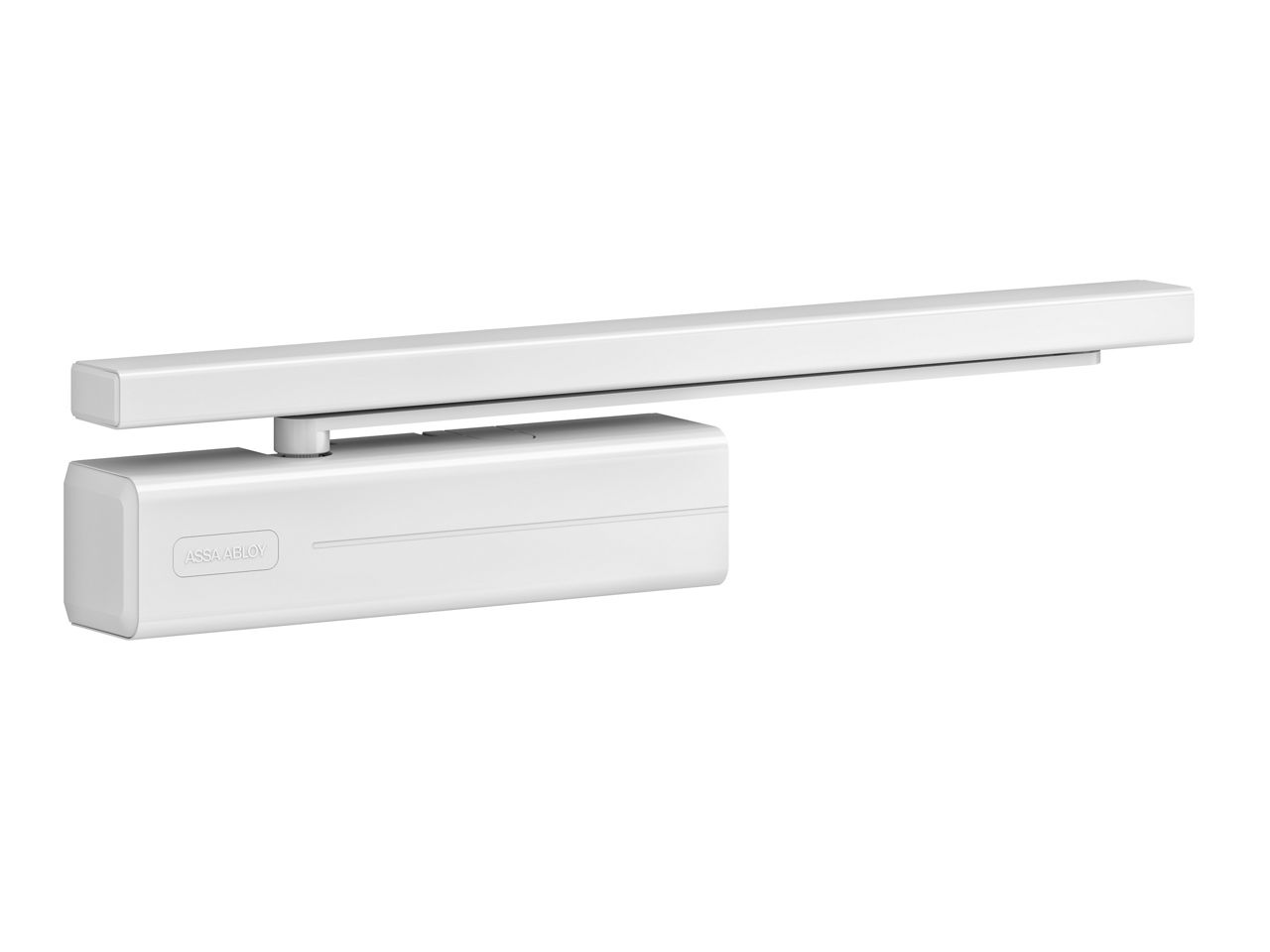

DC500 Guide Rail - White

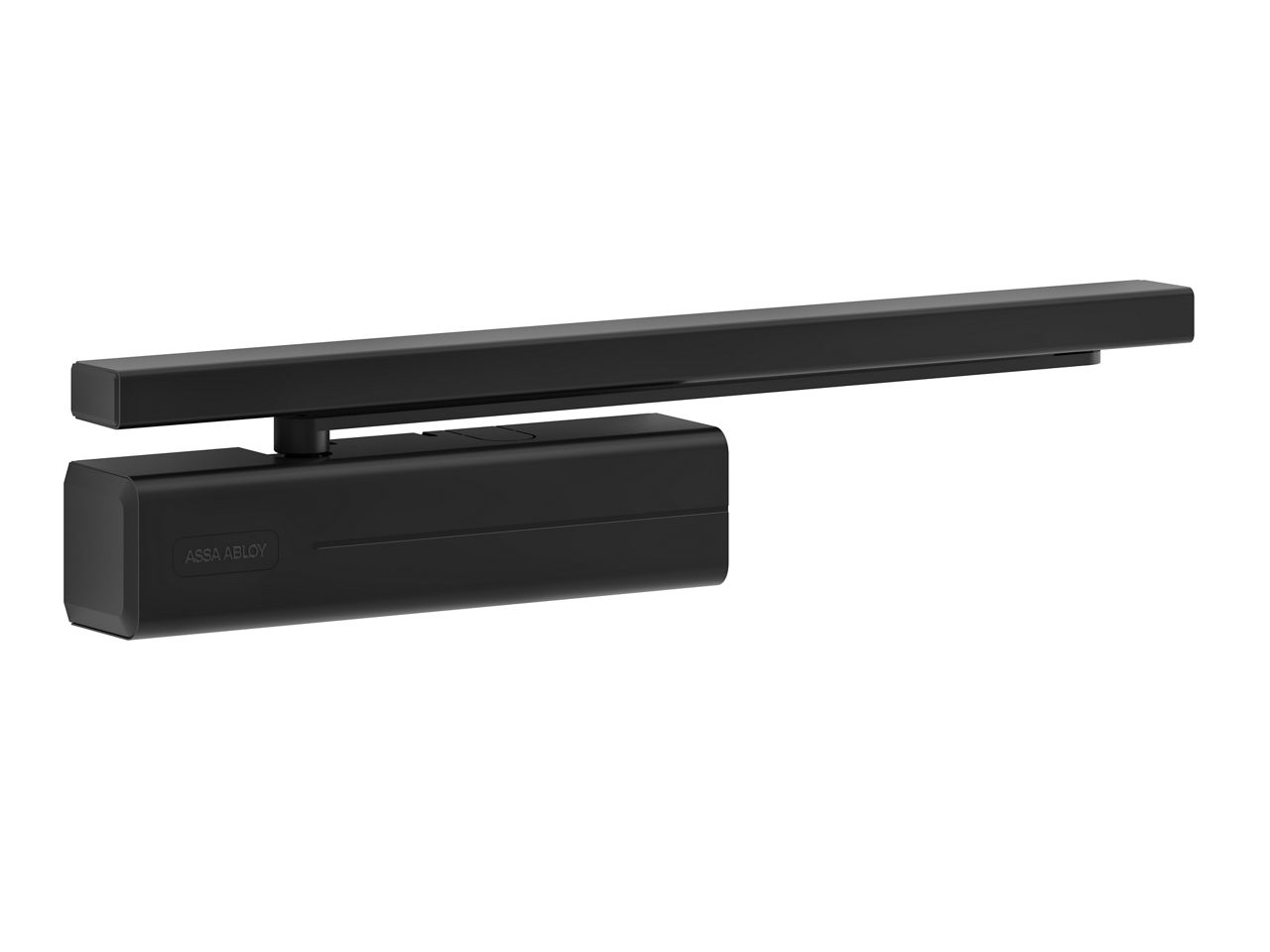

DC500 Guide Rail - Black
