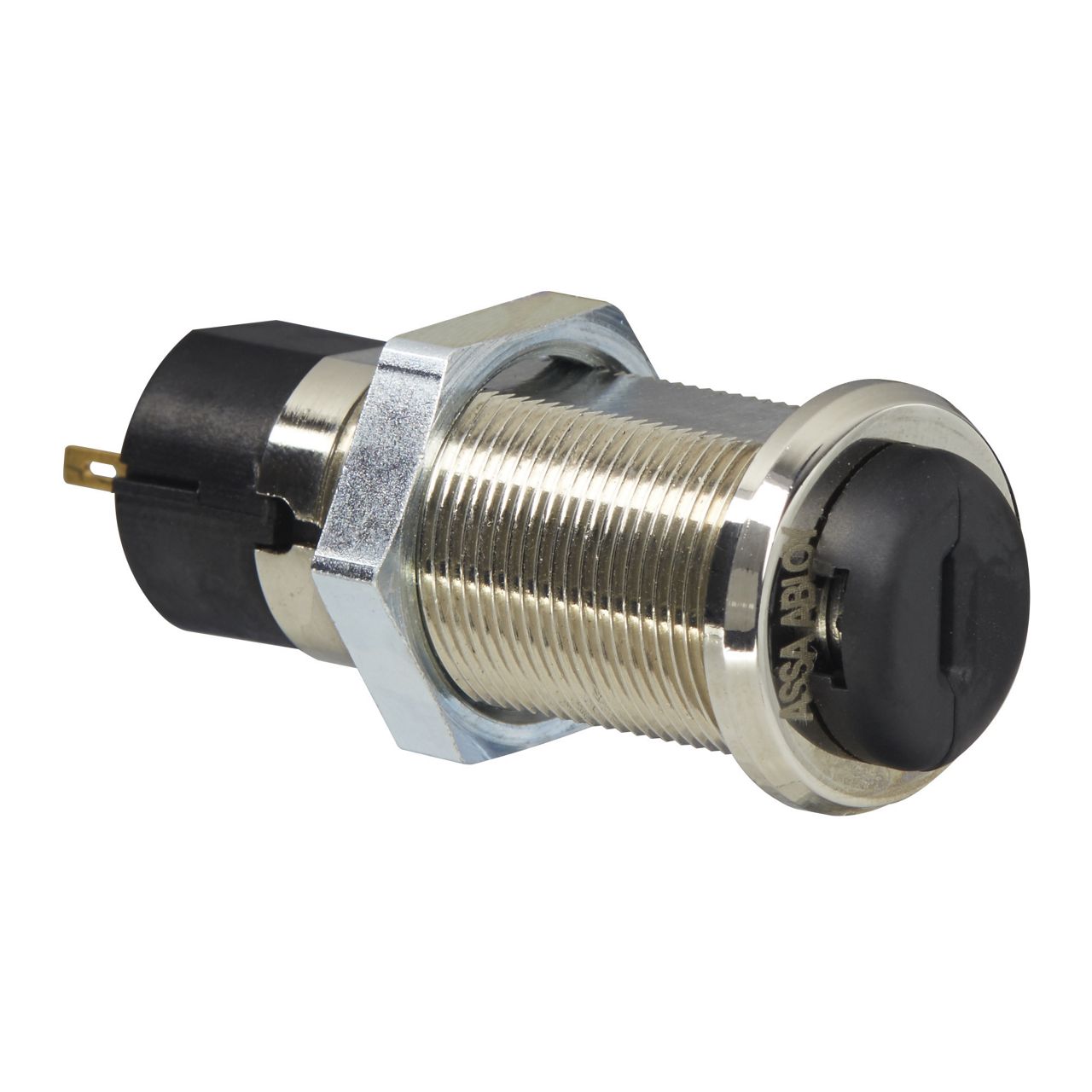

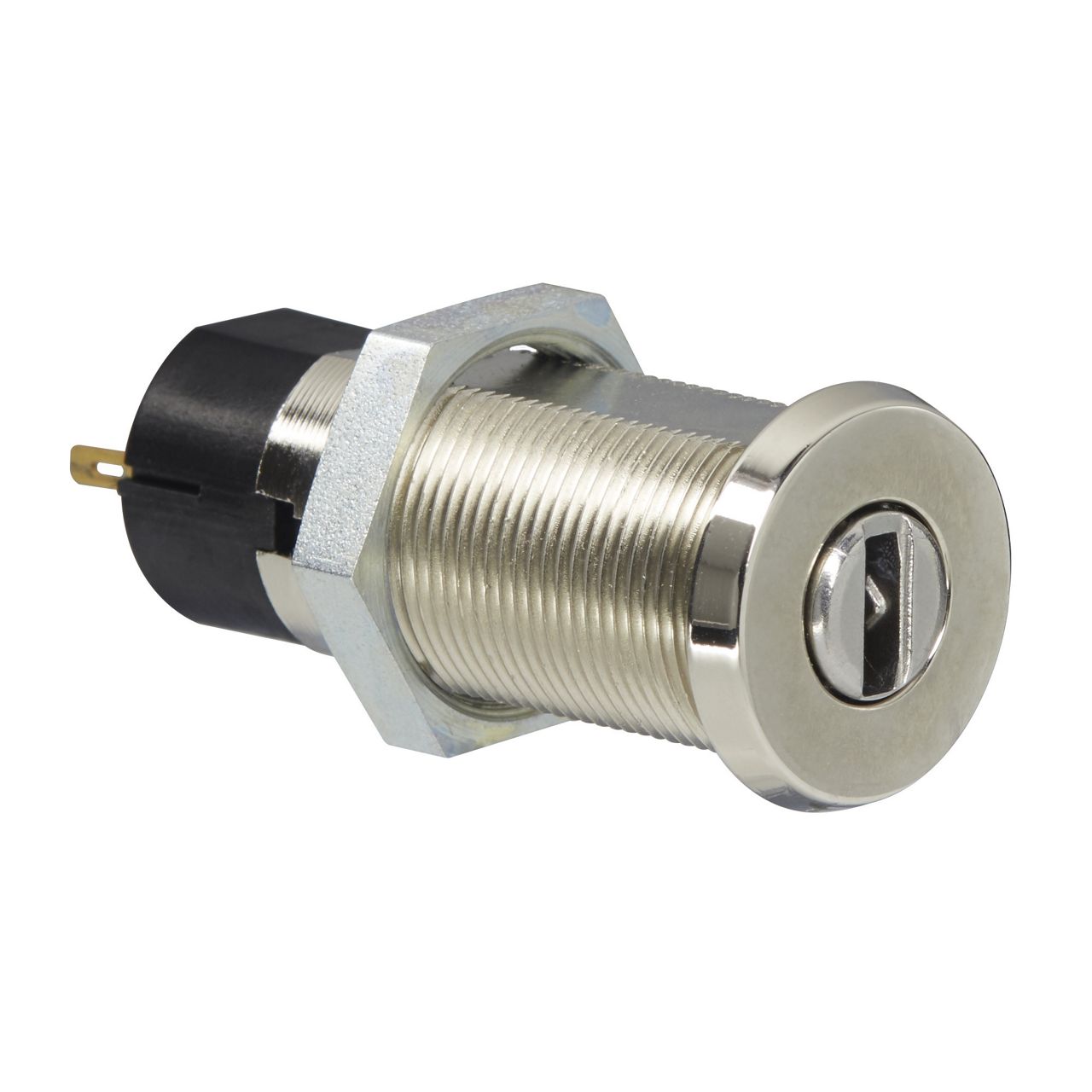

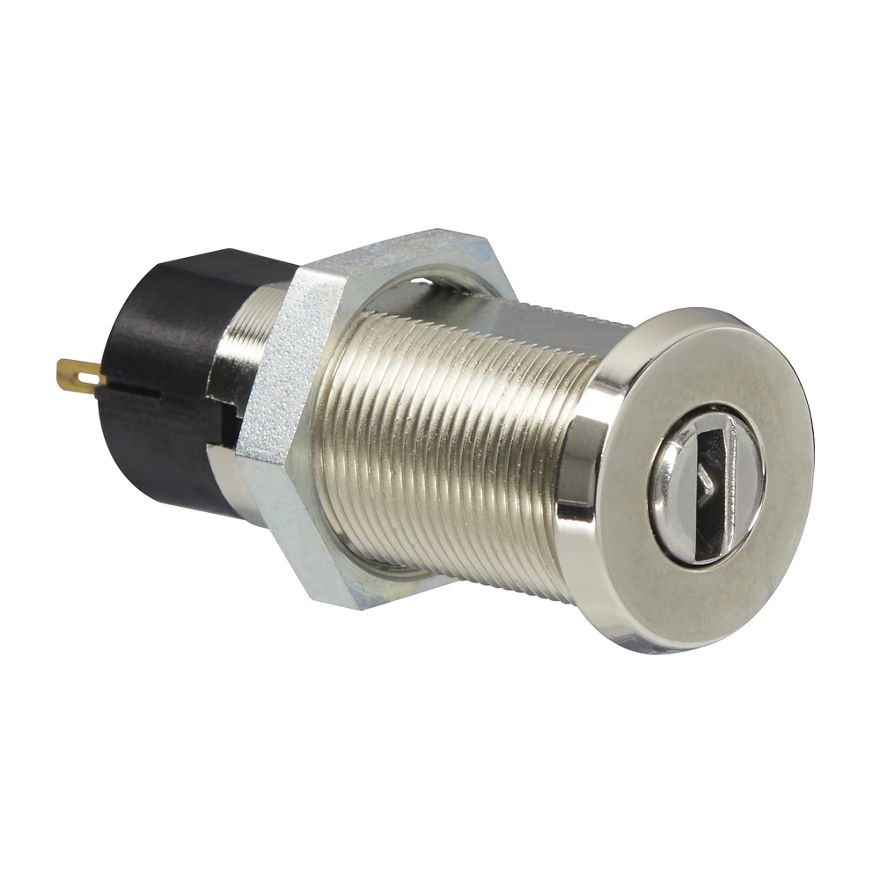

Switch cylinder eCLIQ NT04

Product description

Available as electronical version (V=)
Switch cylinder with one key withdrawal position at 0° and one scanning position at 60° (AUS=OFF)
Optionally with 2 key withdrawal positions at 0° and 60° (AUS=ON/OFF)
Brass cylinder housing components
Maintenance-free for up to 200,000 cycles
Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)
Splash-proof IP54
Dust and rain cover available (SUR=1) IP55
Key rotation 60°
A rotation actuates a switch device (e.g. underground car parks, etc.).
One microswitch F4T6-GP UL (Burgess) (VAC 250 V/ resistive load 5A, VAC 250 V/ inductive load 0.5 A)

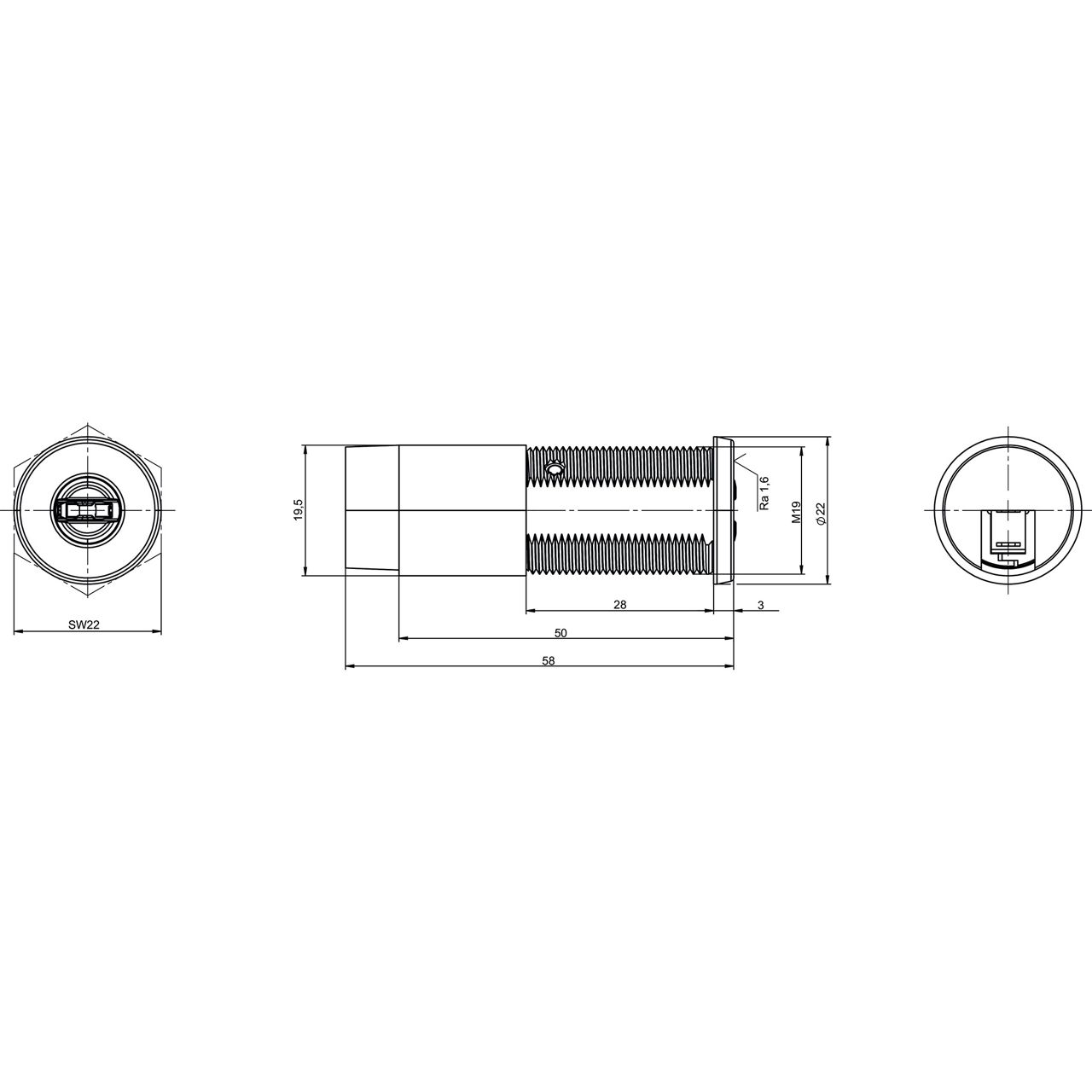

Fixing with M19 x 1 x 5 housing nut

Scope of delivery
