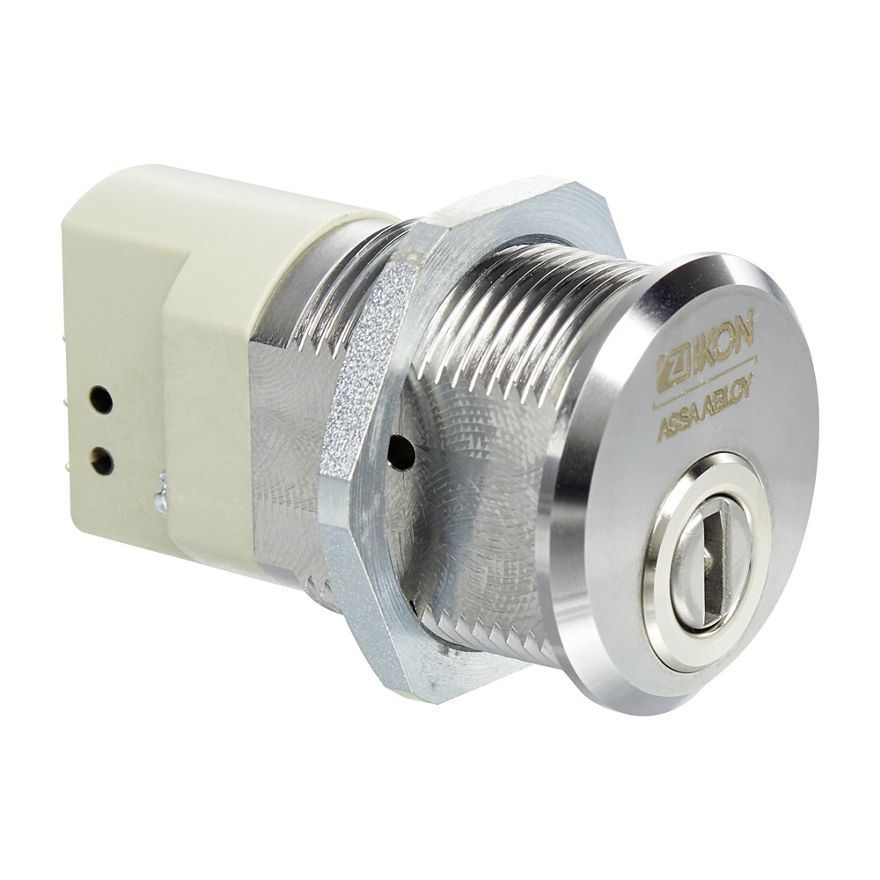

Switch cylinder eCLIQ N512
Product description
Available as electronical version (V=)
Switch cylinder with one key withdrawal position at 0° and one scanning position at 60°
Brass cylinder housing components
Standard finish, satin nickel-plated (OF=MV)
Maintenance-free for up to 200,000 cycles
Dust and rain cover available (SUR=1) IP55
Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)
Optionally available for permanent activation of the switch VAR=RASTUNG without key withdrawal on the scanning position
Two microswitches F4T 7-GP UL (Burgess) (VAC 250 V/ resistive load 5A, VAC 250 V/ inductive load 0.5 A)
Key rotation 60°
A rotation actuates a switch device (e.g. underground car parks, etc.).
Splash-proof IP54
Fixing with M30x1.5 housing nut
Scope of delivery
1 switch cylinder
1 housing nut M30 x 1.5 x 4
