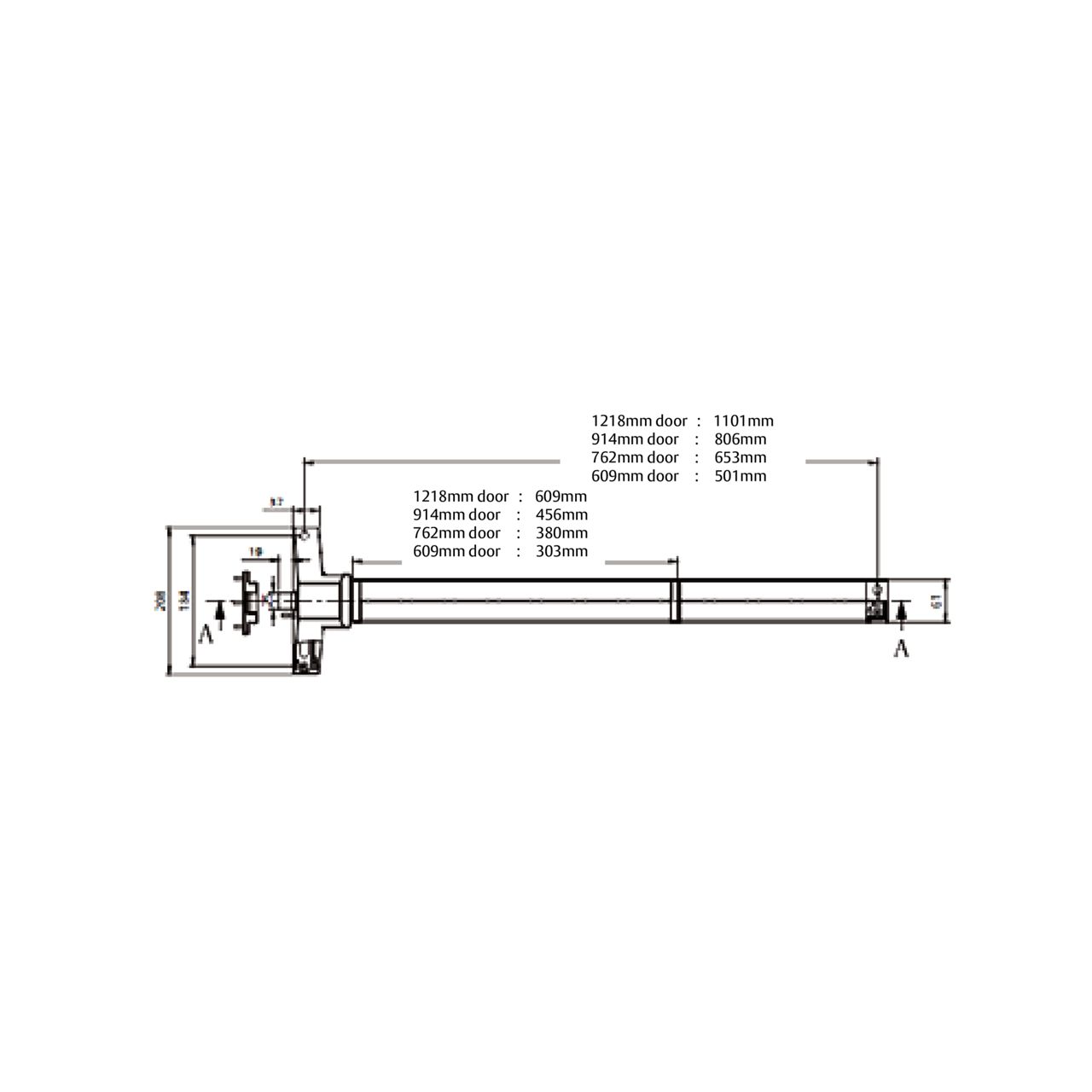

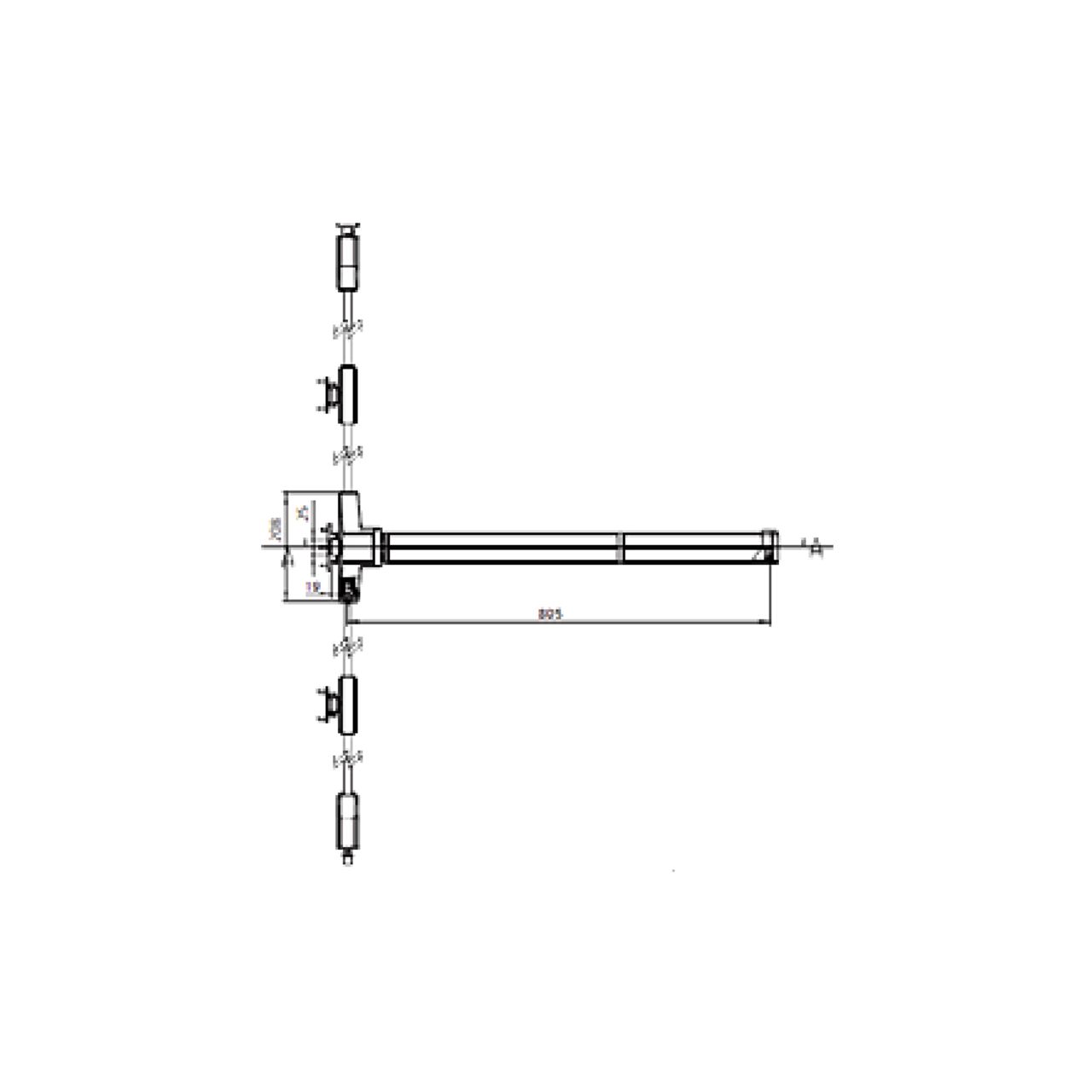

AA21V-3/5
Multi-points Vertical Rod
Key features:
- Surface mounted
- Slim, neat design
- 500,000 cycles tested
- UL 10C and ANSI A156.3 Grade 1
- Fire rated
Function
ANSI Function No.
Model No.
Exit Device Type
Description
Exit
01
AA21V3-01
3 Points Vertical Rod
- Exit only
- No outside operation
AA21V5-01
5 Points Vertical Rod
Classroom
08
AA21V3-08
3 Points Vertical Rod
- Outside lever retracts latch bolt
- Key locks and unlocks lever
AA21V5-08
5 Points Vertical Rod
Passage
14
AA21V3-14
3 Points Vertical Rod
- Entrance by Trim
- Exit by pushing bar Inside
AA21V5-14
5 Points Vertical Rod
Remarks:
- Electric trims are option for mechanical panic exit device
- Supply cylinder is for door thickness 40-54mm
Technical details:
Door Suitability
- For emergency passage doors and anti-fire doors
- Suitable for single and double doors up to 1220mm wide and 2100mm in height (available up to 3000mm upon request)
Material
- Horizontal push bar made of 304 stainless steel
- Latchbolt made of sintering stainless and auxiliary bolt made of die-cast stainless steel
- Lever and trim made of 304 stainless steel
- Strike plate made of die-casting carbon steel with roller to reduce the friction of opening and closing Latchbolt
- Made of sintering stainless steel
Finish
- 630 Satin Stainless Steel Types
- AA21R- Rim
- AA21V- Vertical
- AA21M-Mortise
Electric Function (For AA21M)
- Fail Safe (FSA)
- Fail Secure (FSE)
- 480mA@12VDC (Standard)
- 240mA@24VDC
Electric Function (For Electric Trim ELEC)
- Fail Safe (FSA)
- Fail Secure (FSE)
- 1200mA@12VDC (Standard)
- 600mA@24VDC
Option
- REX (Request to Exit)-An SPDT switch that monitors activation of the free lever (not available with knob trim). REX is available for all mechanical and electrified functions and can be supplied alone or with either LBM or DBM.
- LBM (Latchbolt Monitor)-An SPDT switch that monitors full retraction of the main latch. LBM is available for all mechanical and electrified functions and can be supplied alone or with REX.
- DBM (Deadbolt Monitor)-An SPDT switch that monitors full retraction of the deadbolt. DBM is available for all mechanical and electrified funtions with a deadbolt and can be supplied alone or with REX.
