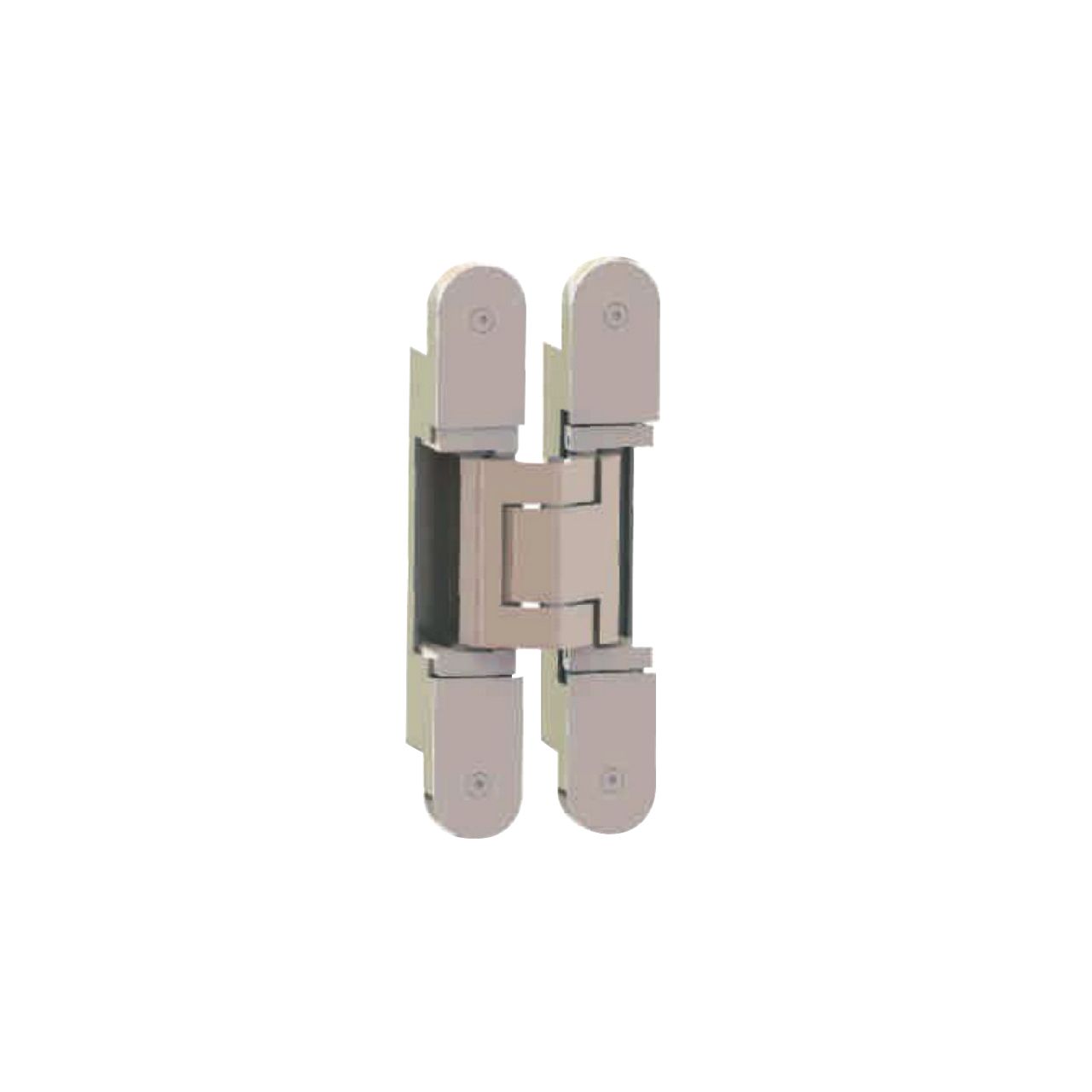

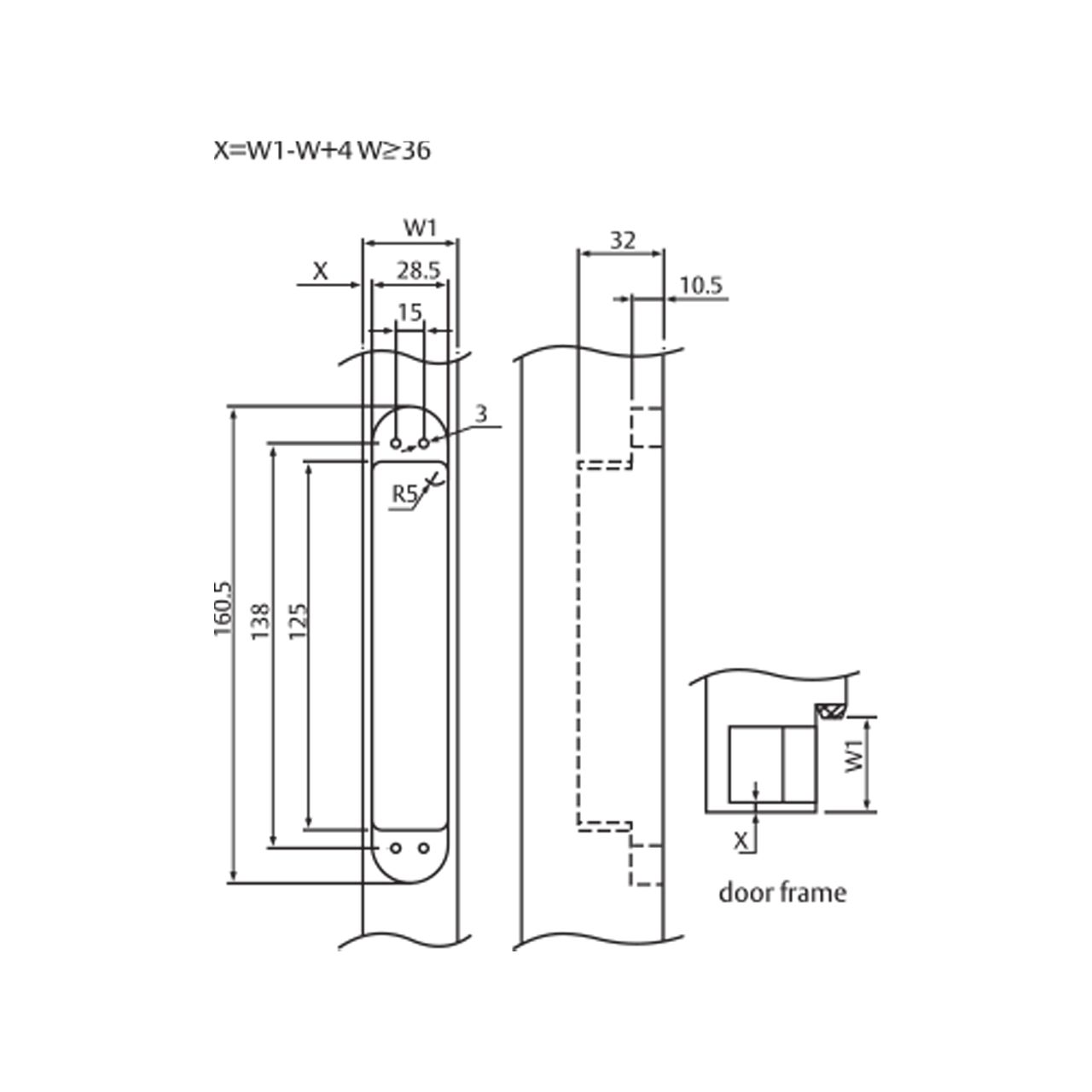

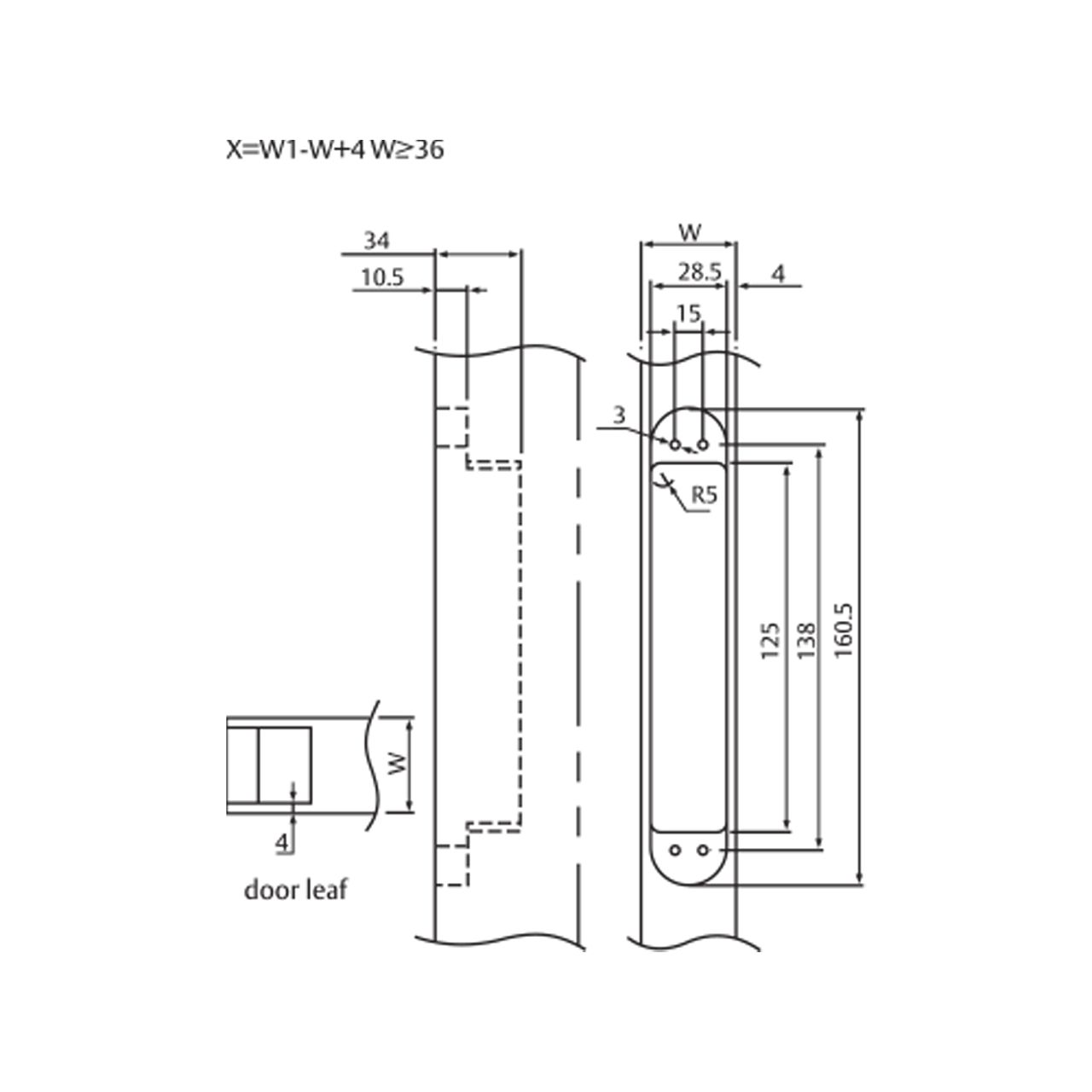

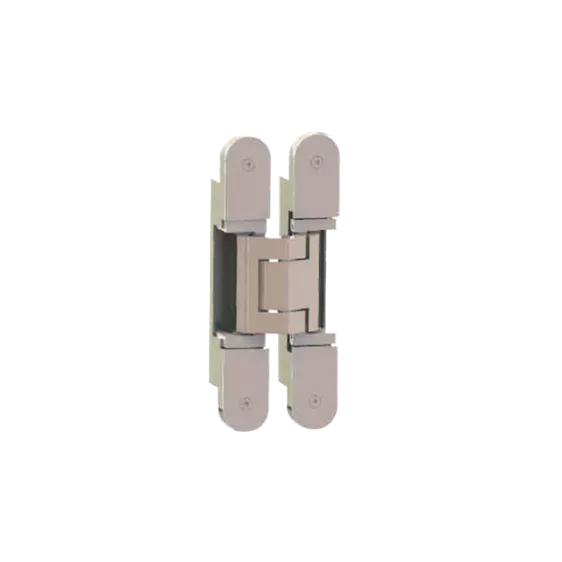

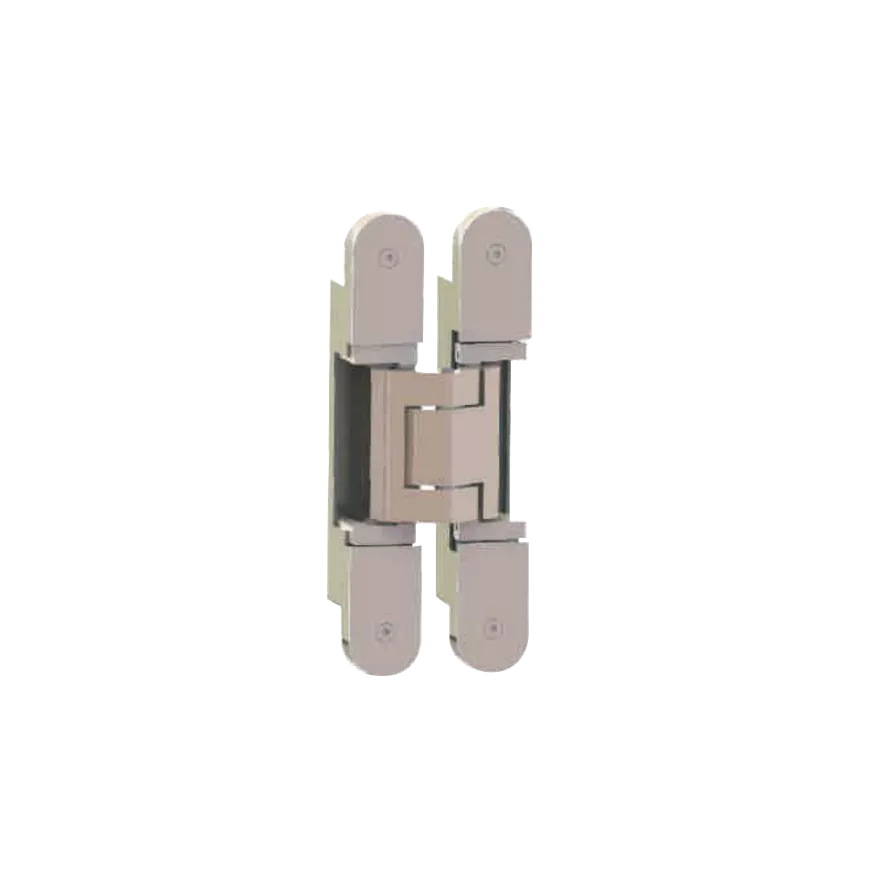

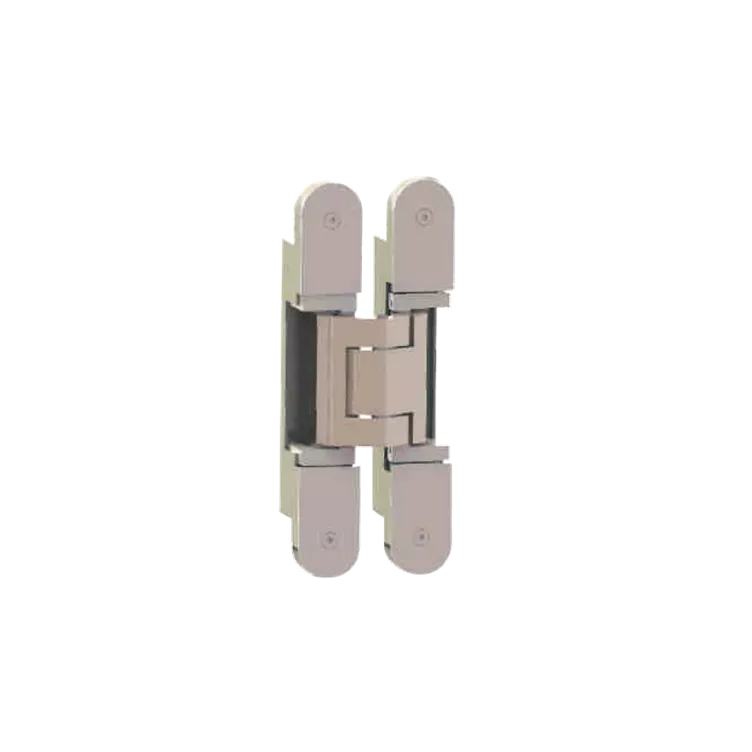

AA-3CH-03, AA-3CH-04

• 3D adjustable concealed hinge
• Application: For wooden frames, for flush wooden interior doors
• Door thickness: ≥35mm; Opening angle: <180˚
• Door weight: AA-3CH-01-40 kg , AA-3CH-02-60 kg
• Adjustment feature: Continuously 3D Adjustable - height, side and closing pressure ±1mm

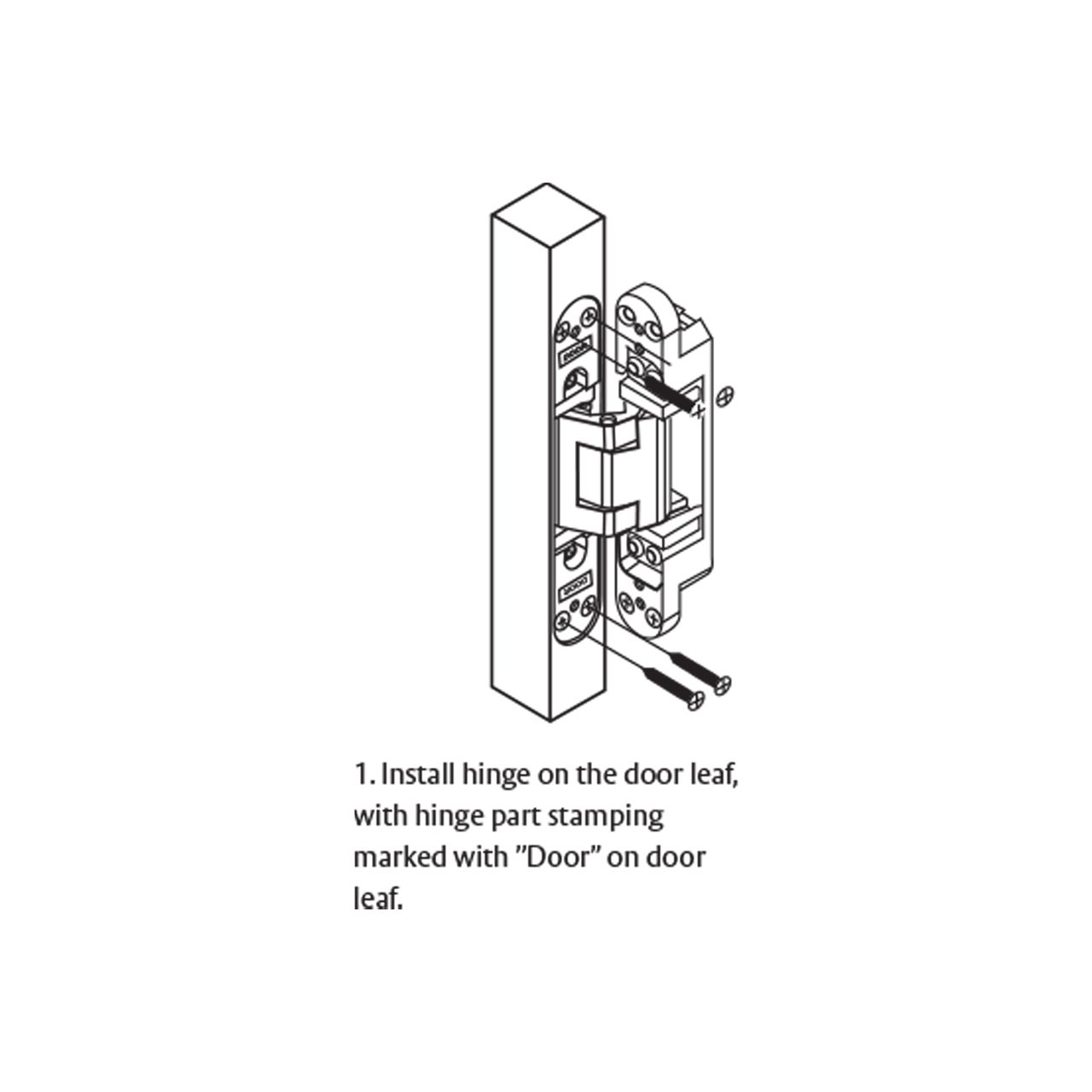

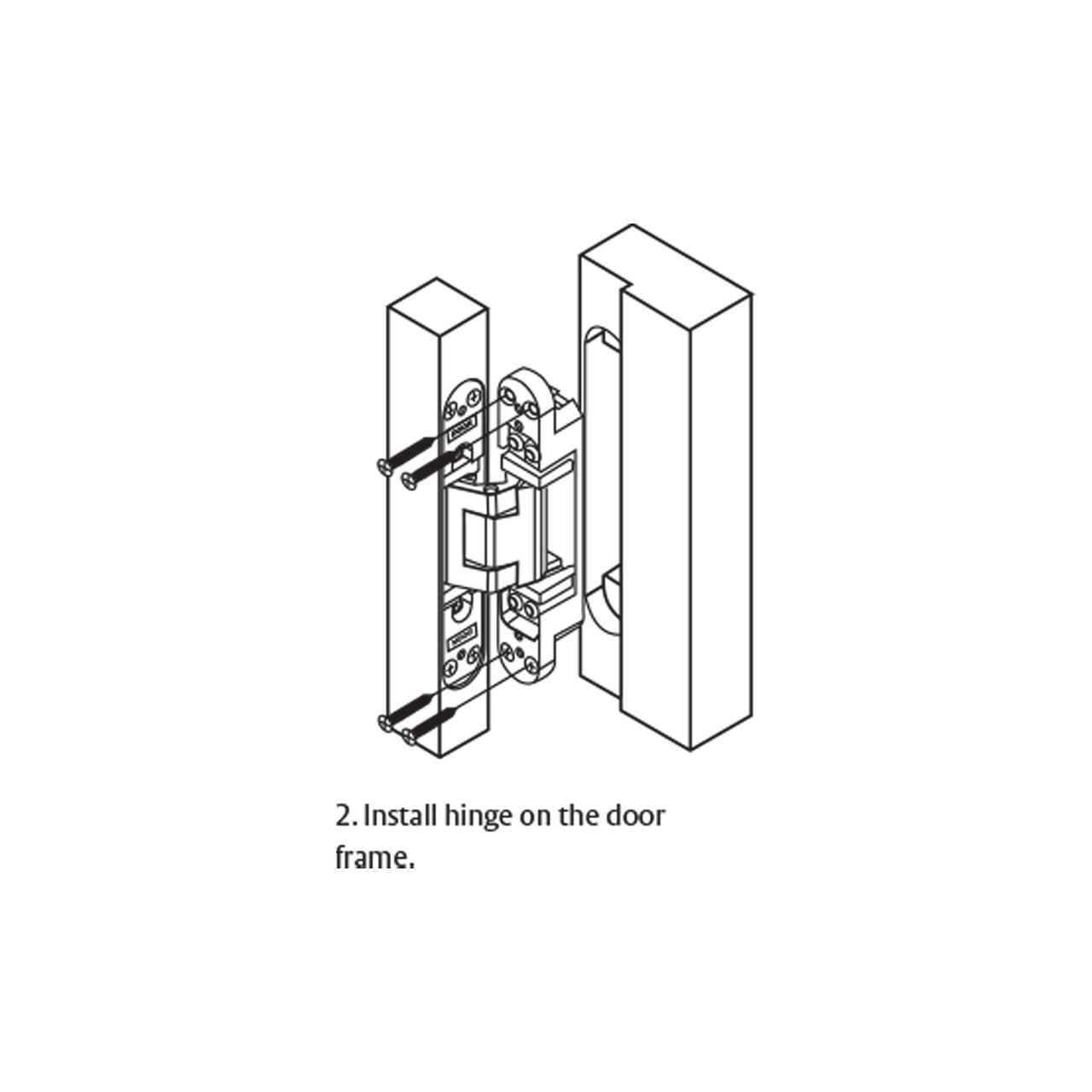

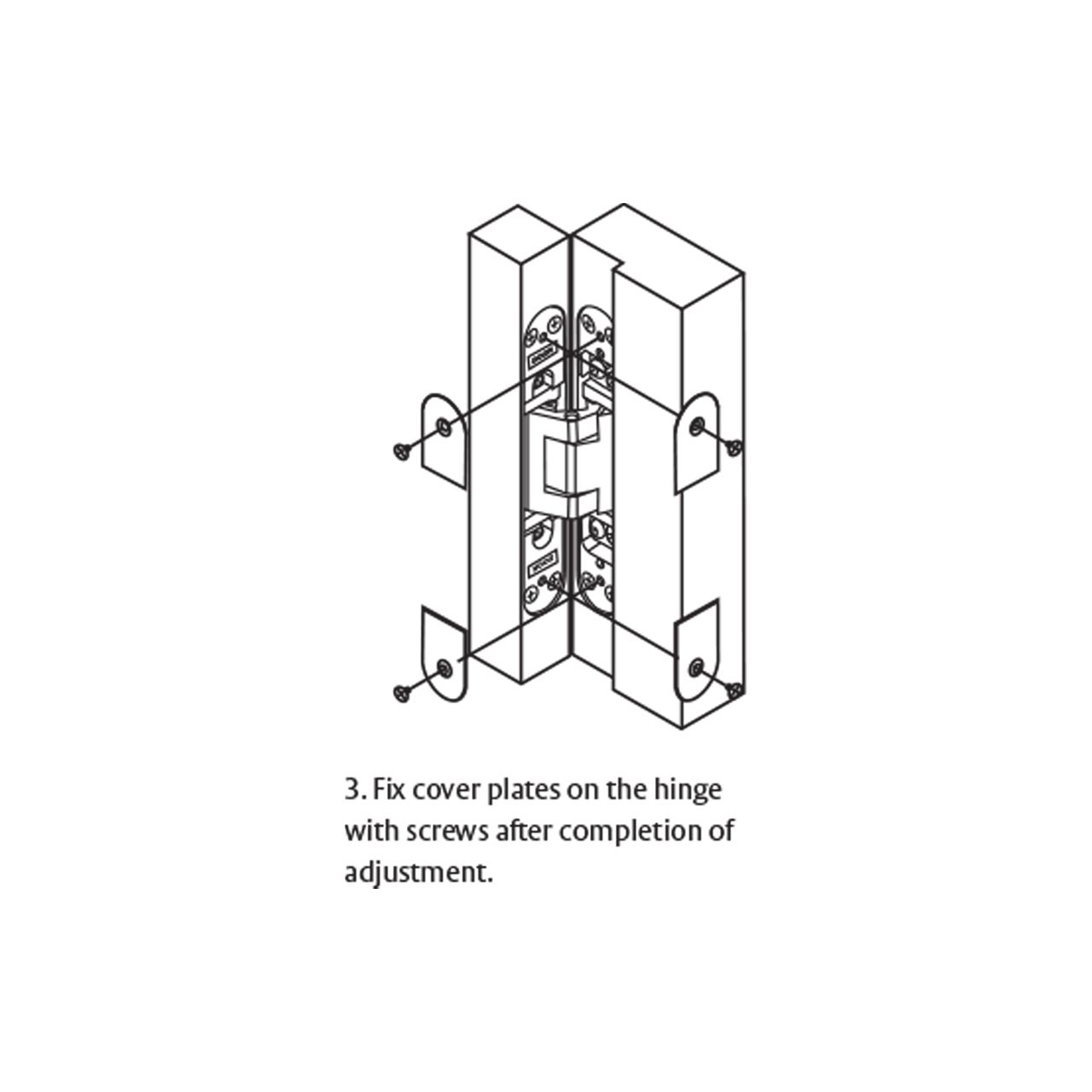

• 3D adjustable concealed hinge
• Application: For wooden/steel/aluminium frames
• Door thickness: >40mm; Opening angle: <180˚
• Door weight: AA-3CH-03-80 kg with 3 Hinges, AA-3CH-04-120 kg with 3 hinges
• Door width: AA-3CH-03- ≤1000mm, AA-3CH-04-≤1200mm

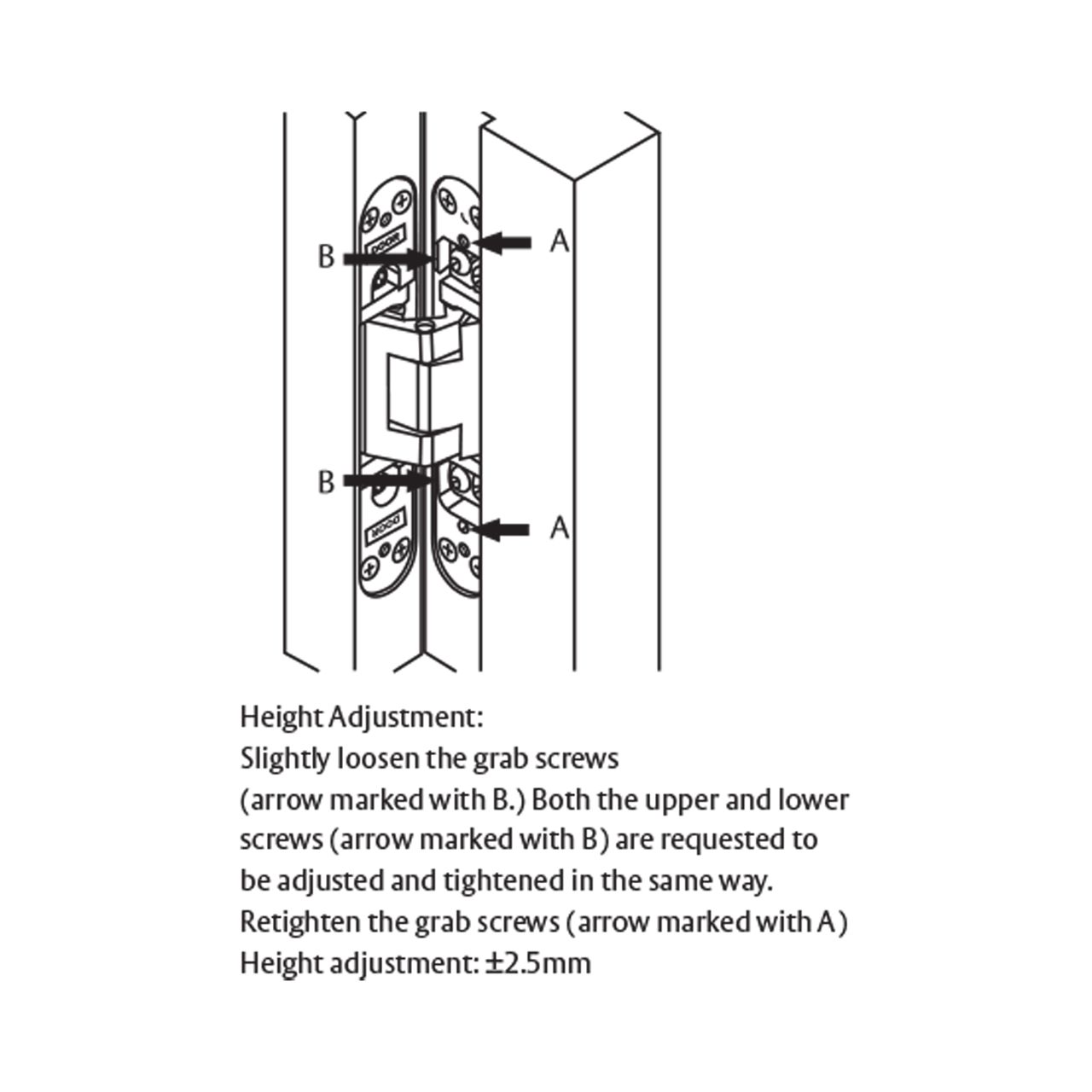

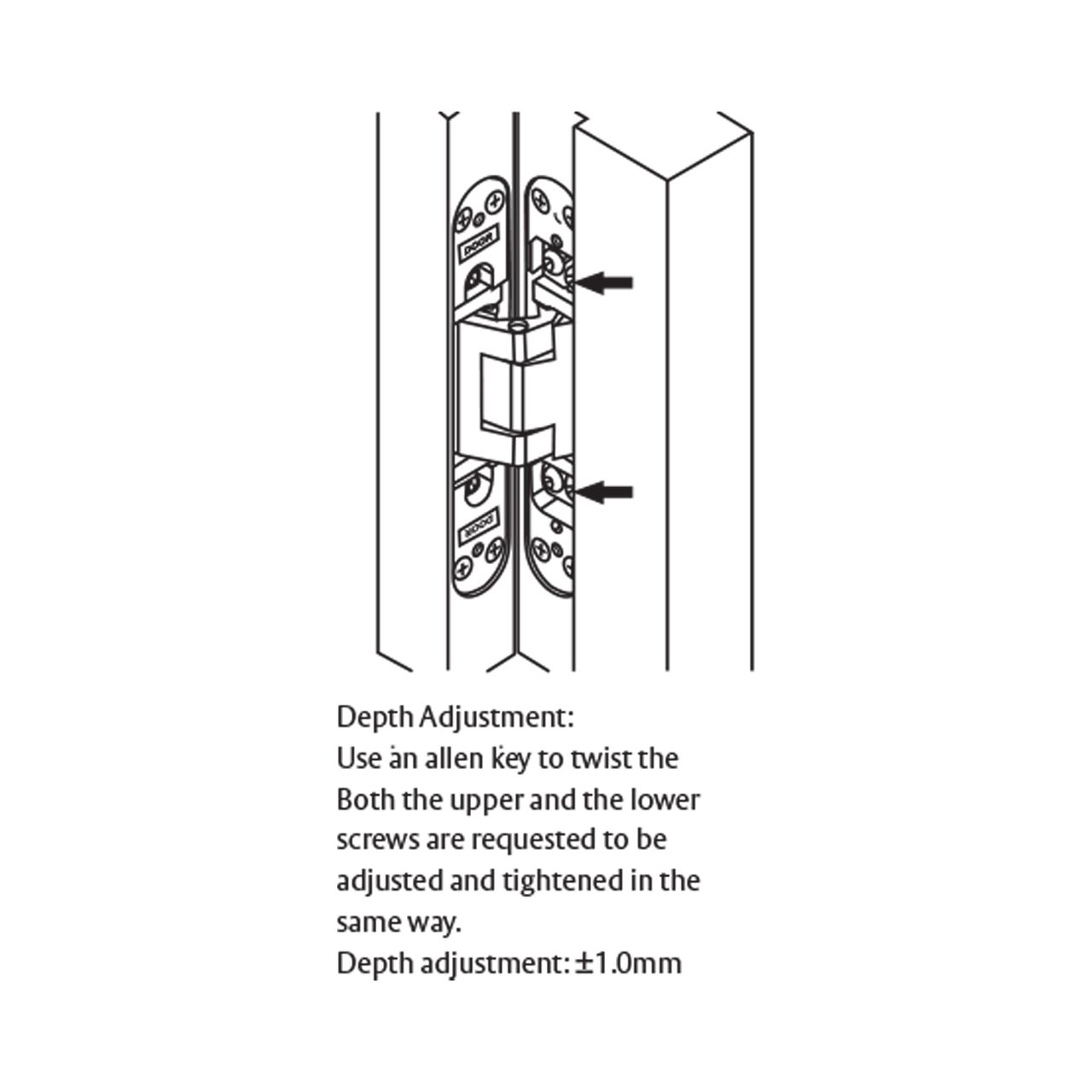

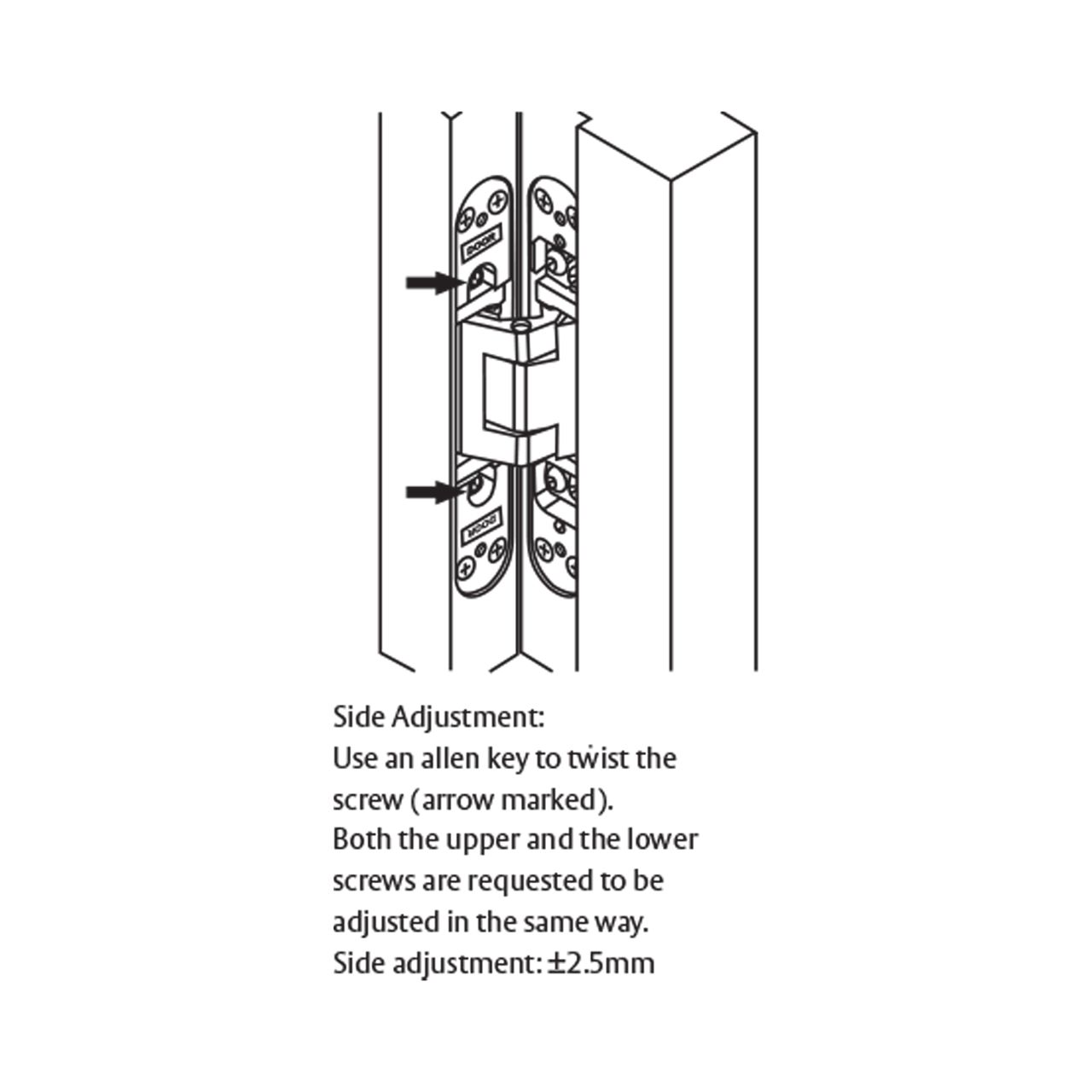

• Adjustment feature: AA-3CH-03- Continuously 3D adjustable height, side ±3.0mm and closing pressure ±1mm, AA-3CH-04- (side ±3.5mm)

There are a few variables which must be considered and guidelines to be observed, in order to determine hinge selection for individual doors. It is recommended that the guidelines contained in this catalogue are followed. When reading dimensions, the first figure always indicates the height and the second indicates the width and the third indicates the thickness.

e.g. 102mm x 76mm x 3mm
