ATEX
For use in explosion-prone areas

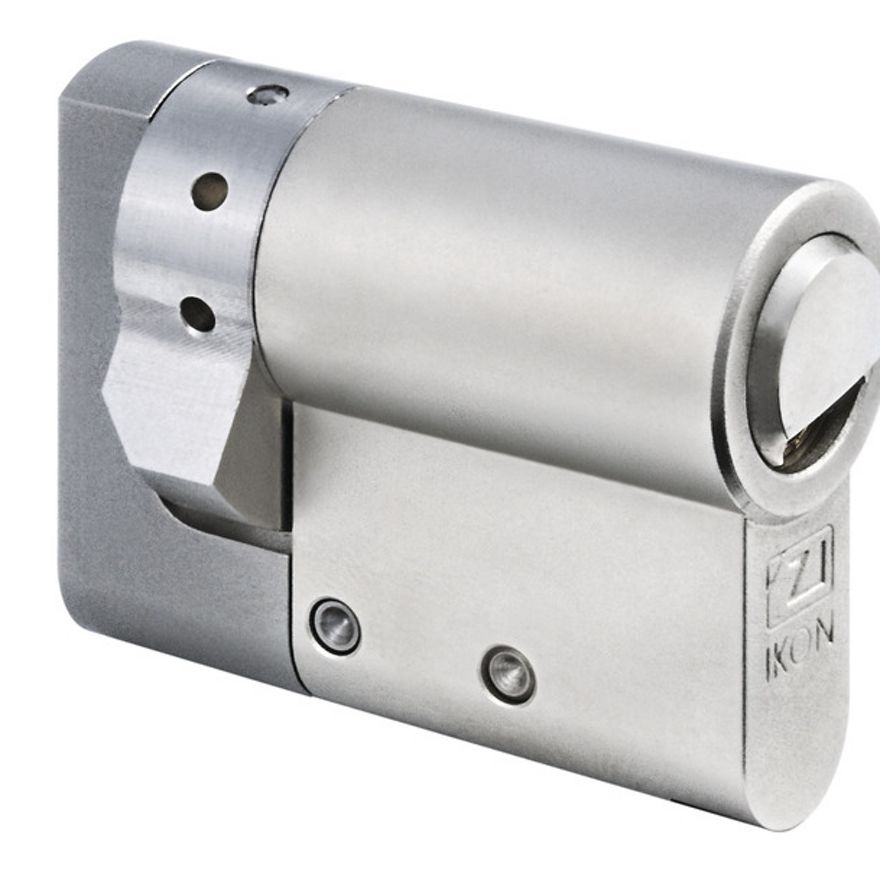

Profile-half cylinder VERSO®CLIQ V532,VAR=R90A008
Without key
Overview of Advantages
- Version with optimum extraction protection (15,000 N / 1.5 t)
- Particularly suitable for use in vending machines
Product description
- Available as mechanical or electromechanical version (V=)
- Brass / steel cylinder housing components
- Version with optimum extraction protection (15,000 N / 1.5 t)
- Particularly suitable for use in vending machines
- Standard finish, satin nickel-plated (OF=MV)
- Basic cylinder length 31mm (L=30/-)
- Standard cam position (SST=6x45°)
- Cam off high strength and high-alloyed steel
- Tumbler elements with special wear-resistant alloy
- Dust and rain cover for one side available under (SUR=1)
- Optionally available with anti drilling protection class 2 (AB=2)
- Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G Ex ib IIC T4 Gb
Scope of delivery
- 1 profile half-cylinder
Security Card
Special identification marking
Description Info Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=) per cylinder ATEX= Description Info II 2G Ex ib IIC T4 Gb Locking cylinders for Zone 1 hazardous areas per cylinder AB= Area of application Info 2 For profile knob, half and special cylinders per cylinder OF= Area of application Info MV For profile and locking lever cylinders per cylinder MC For profile and locking lever cylinders per cylinder MP For profile and locking lever cylinders per cylinder MG For profile and locking lever cylinders per cylinder SUR= Area of application Info 1 For profile knob and double cylinder, double cylinder one side blind, half cylinder and special cylinder per cylinder Cam position and free wheeling function
SST= Description 90-270 90-270 degrees 270-90 270-90 degrees 270-0 270-0 degrees 270-160 270-160 degrees 0-90 0-90 degrees 180-90 180-90 degrees 200-90 200-90 degrees 270-180 270-180 degrees 135-180 135-180 degrees 135-225 135-225 degrees 90-180 90-180 degrees 180-270 180-270 degrees 270-30 270-30 degrees 330-90 330-90 degrees FZG Freewheeling cylinder for gear locks, for cylinder lengths starting from L=35/30 or 30/35 SST= Area of application Description K901179 Mul-T-Lock type Diameter 24 mm / Module 2 / 10 teeth K901180 VIRO/IKON .138 type Diameter 30 mm / Module 1,5 / 18 teeth K901293 Laperche type Diameter 24 mm / Module 1,5 / 14 teeth K901188 Italian type Diameter 27 mm / Module 1,5 / 16 teeth V2= Description Info OHNE AUDIT Cylinder without events list, frontal marking with symbol "§" per cylinder Downloads for Product
