ATEX
For use in explosion-prone areas

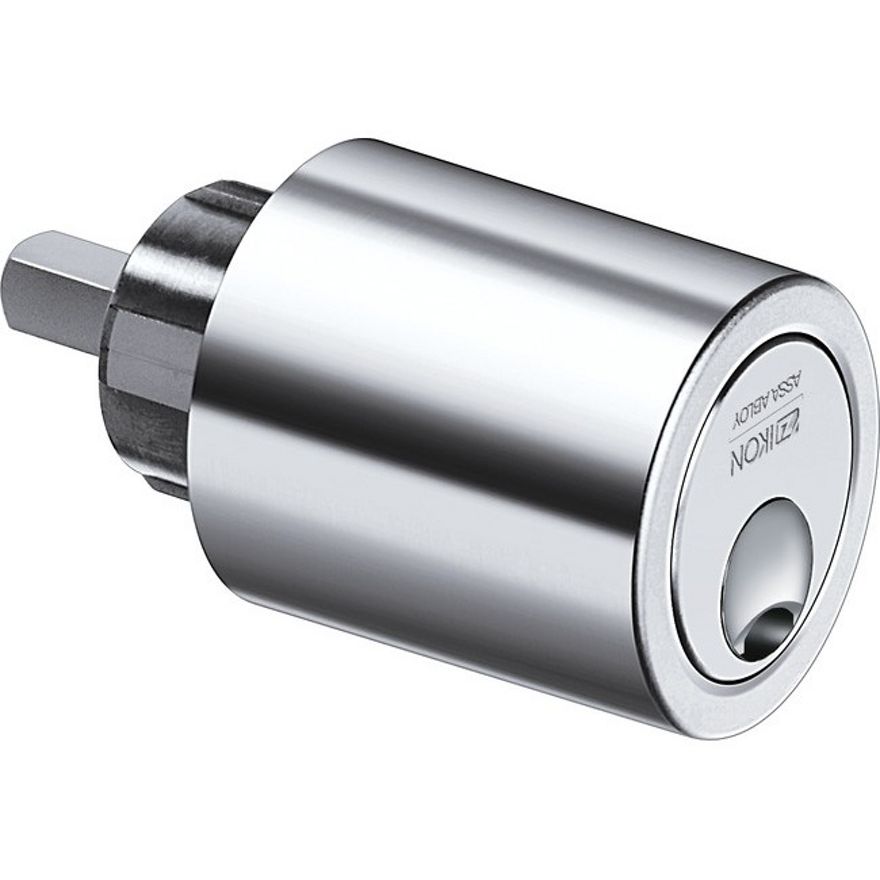

Furniture lock cylinder VERSO®CLIQ V184
40 mm diameter - without key
Product description
- Available as mechanical or electromechanical version (V=)
- Brass cylinder housing components
- Standard finish, satin nickel-plated (OF=MV)
- Tumbler elements with special wear-resistant alloy
- Polyamide or metal housing
- Standard housing colour light grey (FB=LGR)
- Further housing finishes optionally available: brown (FB=BN), navy blue (FB=DBL), dark green (FB=DGN), dark red (FB=DRT), light grey (FB=HGR), olive (FB=OL), red (FB=RT), black (FB=SW), white (FB=WS), satin nickel plated (FB=MV)
- With 7 mm square spindle
- Fixing with Parker screw
- With special escutcheon to facilitate fixing in connection with IKON furniture lock 8657 and sleeve 8068
- Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G Ex ib IIC T4 Gb
Scope of delivery
- 1 furniture lock cylinder
Security Card
Order number Product
VZ03 Maintenance spray .jpg)
VZ05 Maintenance spray
8657 Furniture espagnolette lock Order number Product
V109,V=E3 Key VERSO®CLIQ
V109,V=PR/PSM/PN Key VERSO®CLIQ
V109,V=M Key VERSO®CLIQ V109,V=E1 Key VERSO®CLIQ V109,V=E2 Key VERSO®CLIQ
V109,V=B1/B2/B3 Key VERSO®CLIQ
V109,V=G1 Key VERSO®CLIQ
8068 Combination sleeve Article number FB= (Color) S= (Side) OF= (Surface) V= (Version) V184 LGR (Light grey) L (Left) MV (Matt, nickel-plated) M (Mechanical version) LGR (Light grey) R (Right) MV (Matt, nickel-plated) M (Mechanical version) LGR (Light grey) L (Left) MV (Matt, nickel-plated) E1 (Electromehcanical version "Basic") LGR (Light grey) R (Right) MV (Matt, nickel-plated) E1 (Electromehcanical version "Basic") LGR (Light grey) L (Left) MV (Matt, nickel-plated) E2 (Electromehcanical version "Time") LGR (Light grey) R (Right) MV (Matt, nickel-plated) E2 (Electromehcanical version "Time")
Special identification marking
Description Info Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=) per cylinder ATEX= Description Info II 2G Ex ib IIC T4 Gb Locking cylinders for Zone 1 hazardous areas per cylinder AB= Area of application Info 2 For profile knob, half and special cylinders per cylinder OF= Area of application Info MV For profile and locking lever cylinders per cylinder V2= Description Info OHNE AUDIT Cylinder without events list, frontal marking with symbol "§" per cylinder Housing colours for furniture olives
FB= Description BN similar to RAL 8017 DBL similar to RAL 5011 DGN similar to RAL 6012 DRT similar to RAL 3007 LGR similar to RAL 7035 HGR similar to RAL 9001 OL similar to RAL 6022 RT similar to RAL 3003 SW similar to RAL 9005 WS similar to RAL 9010 MV metal Certificates and attests
