ATEX
For use in explosion-prone areas

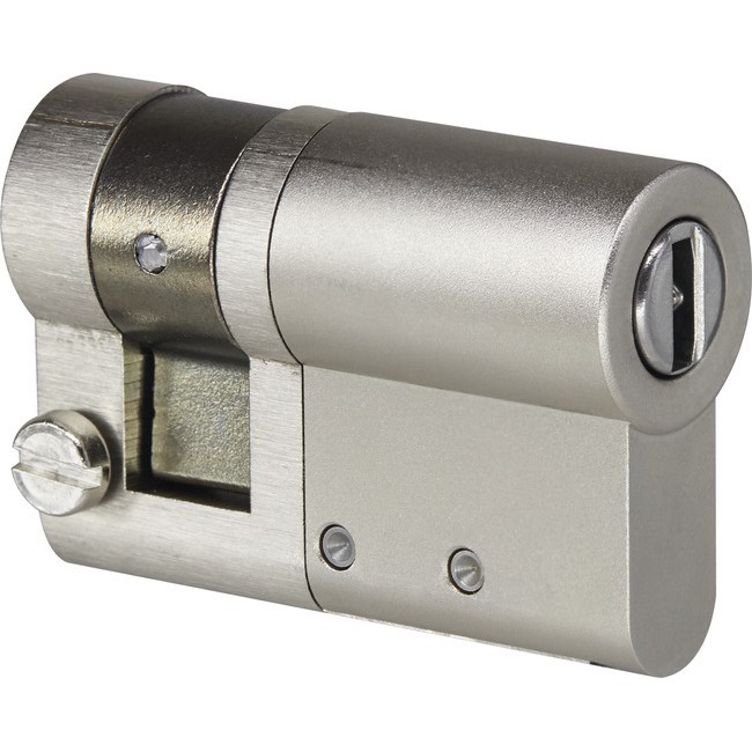

Switch cylinder eCLIQ N098
Half-switch cylinder - without key
Product description
- Available as electronical version (V=)
- Brass cylinder housing components
- Standard finish, satin nickel-plated (OF=MV)
- Steel cam
- Cam radius 17 mm
- Standard cam position 0° (SST=0)
- Optionally available with cam position 135° (SST=135)
- 2 rearward M4 drill holes
- 1 lateral M4 drilling for ground screw
- Fixed total length 47 mm
- Maintenance-free for up to 200,000 cycles
- Dust and rain cover available (SUR=3) IP55
- Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)
Scope of delivery
- 1 switch cylinder
- 1 ground screw M4
Security Card
Order number Product
N109,V=E1 Key eCLIQ N109,V=E2 Key eCLIQ N109,V=E3 Key eCLIQ N109,V=B1/B2/B3 Key eCLIQ
N109,V=PR/PSM/PN Key eCLIQ
Article number OF= (Surface) V= (Version) N098 MV (Matt, nickel-plated) E (Electronic version) ATEX= Description Info II 2G Ex ib IIB T4 Gb Locking cylinders for Zone 1 hazardous areas per cylinder V2= AUS3= Description Info ONLINE Cylinder with function "Online Open", frontal marking with symbol "@" per cylinder SEQUENCE Cylinder with function "two-man rule", frontal marking with symbol "&" per cylinder OHNE AUDIT Cylinder without events list, frontal marking with symbol "§" per cylinder OF= Area of application Info MV For profile and locking lever cylinders per cylinder MG For profile and locking lever cylinders per cylinder MP For profile and locking lever cylinders per cylinder MC For profile and locking lever cylinders per cylinder SUR= Area of application Info 3 For profile knob and double cylinder, double cylinder one side blind and half cylinder per cylinder
