ASSA ABLOY

Profile-half cylinder eCLIQ N532,VAR=R90A009

Without key

Product description

  • Available as rotary secured or electronical version (V=)
  • Enables sliding or lever handles to be locked without key (e.g. server racks)
  • Brass cylinder housing components
  • Standard finish, satin nickel-plated (OF=MV)

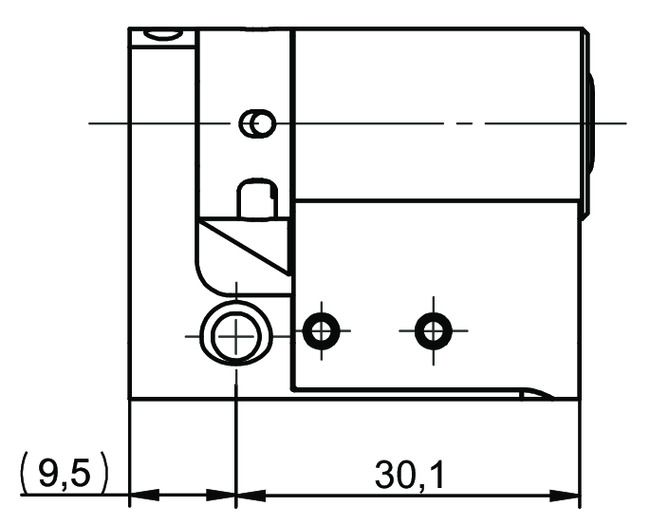

  • Basic cylinder length 31mm (L=30/-)
  • Cam position 45° left (SST=L) or 45° right (SST=R) blocking please specify when ordering
  • Spring-loaded cam, corrosion-resistant brass (satin nickel-plated)
  • Maintenance-free for up to 200,000 cycles
  • Dust and rain cover for one side available under (SUR=1)
  • Optionally available with anti drilling protection class 2 (AB=2)
  • Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)

Scope of delivery

  • 1 profile half-cylinder
  • 1 cylinder fixing screw M5 x 85 mm
ATEXATEX

ATEX

For use in explosion-prone areas

Security CardSecurity Card

Security Card
  •
    		 Order number
    		 Product

    		N109,V=E1 Key eCLIQ

    		N109,V=E2 Key eCLIQ

    		N109,V=E3 Key eCLIQ

    		N109,V=B1/B2/B3 Key eCLIQ

    		N109,V=PR/PSM/PN Key eCLIQ
  • Article numberV= (Version)OF= (Surface)L= (Length)
    N532,VAR=R90A009D (Rotary secured version)MV (Matt, nickel-plated)30
     E (Electronic version)MV (Matt, nickel-plated)30
