ASSA ABLOY

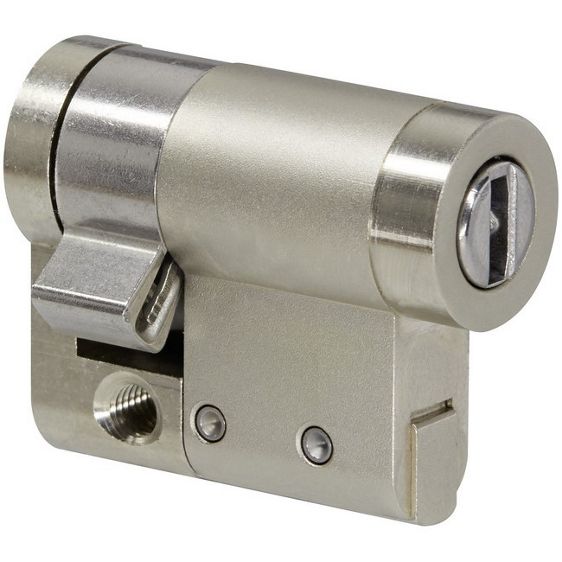

Profile-half cylinder eCLIQ N532,VAR=1901508-FRONT

Particularly suitable for use in operating panels, e.g. in lifts - without key

Overview of advantages

  • Particularly suitable for use in operating panels, e.g. in lifts

Product description

  • Available as rotary secured or electronical version (V=)
  • Brass cylinder housing components
  • Front surface shortened (5.95 mm)
  • Standard finish, satin nickel-plated (OF=MV)
  • Standard locking cam position 45°; differing locking cam positions available in 30° and 45° steps
  • Standard with rigid connection (VAR=STARR) and free adjustable locking cam set to 45° (SST=FLEX). Differing locking cam positions available
  • Free-wheeling function only without VAR=STARR
  • Cam made of break-proof, corrosion-resistant stainless steel
  • Maintenance-free for up to 200,000 cycles
  • Splash-proof IP54
  • Dust and rain cover available (SUR=3) IP55
  • Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G Ex ib IIC T4 Gb

Scope of delivery

  • 1 profile half-cylinder
  • 1 cylinder fixing screw M5 x 85 mm
ATEXATEX

ATEX

For use in explosion-prone areas

Security CardSecurity Card

Security Card
  •
    		 Order number
    		 Product

    		VZ03 Maintenance spray

    		VZ05 Maintenance spray
  •
    		 Order number
    		 Product

    		V109,V=M Key VERSO®CLIQ

    		V109,V=E1 Key VERSO®CLIQ

    		V109,V=E2 Key VERSO®CLIQ

    		V109,V=E3 Key VERSO®CLIQ

    		V109,V=B1/B2/B3 Key VERSO®CLIQ

    		V109,V=PR/PSM/PN Key VERSO®CLIQ
  • Article numberV= (Version)OF= (Surface)L= (Length)
    N532,VAR=1901508-5-FRONTD (Rotary secured version)MV (Matt, nickel-plated)30
     E (Electronic version)MV (Matt, nickel-plated)30
