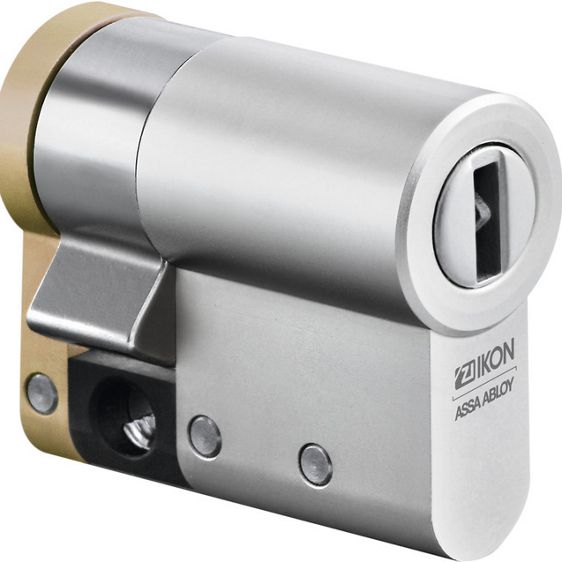

Profile-half cylinder eCLIQ N532
Without key
Product description
- Available as rotary secured or electronical version (V=)
- Brass cylinder housing components
- Standard finish, satin nickel-plated (OF=MV)
- Basic cylinder length of 30 mm (A) (L=30) - Other installation lengths available - Adaptable housing kit
- Optional, differing basic cylinder length of 28 mm (A) (L=28)
- Standard locking cam position 45°; differing locking cam positions available in 30° and 45° steps
- Standard with rigid connection (VAR=STARR) and free adjustable locking cam set to 45° (SST=FLEX). Differing locking cam positions available
- Optionally available with double locking cam (VAR=K901310-X-BIFFAR)
- Optional with SST=FZG possible
- Free-wheeling function only without VAR=STARR
- Optionally available with anti drilling protection class 2 (AB=2)
- Cam made of break-proof, corrosion-resistant stainless steel
- Maintenance-free for up to 200,000 cycles
- Dust and rain cover available (SUR=3) IP55
- Splash-proof IP54
- Optionally VdS★★★ (SZ=VDS-BZ+, AB=3)
- Optionally DIN EN 15684 with anti drilling protection class 2 (SZ=DIN, AB=2)
- Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)
Scope of delivery
- 1 profile half-cylinder
- 1 cylinder fixing screw M5 x 85 mm
PIV CERT
ATEX
For use in explosion-prone areas
Security Card
Order number Product
9M37,AUS=PZ VOR Mini safe
9M38,AUS=PZ VOR Mini safe
9M39,AUS=PZ VOR Mini safe
9M40,AUS=PZ VOR Mini safe Order number Product
N109,V=E1 Key eCLIQ N109,V=E2 Key eCLIQ N109,V=E3 Key eCLIQ N109,V=B1/B2/B3 Key eCLIQ
N109,V=PR/PSM/PN Key eCLIQ Article number OF= (Surface) L= (Length) V= (Version) N532 MV (Matt, nickel-plated) 30 D (Rotary secured version) MV (Matt, nickel-plated) 30 E (Electronic version)
AB= Description Area of application Info 2 Security category 2 drilling protection For profile knob, half and special cylinders per cylinder SZ= AB= Description Area of application Info DIN 2 DIN-tested profile cylinder For profile half and knob cylinders per cylinder VDS 3 VdS-approved profile cylinder For profile half cylinder per cylinder OF= Area of application Info MV For profile and locking lever cylinders per cylinder MG For profile and locking lever cylinders per cylinder MP For profile and locking lever cylinders per cylinder MC For profile and locking lever cylinders per cylinder SUR= Area of application Info 3 For profile knob and double cylinder, double cylinder one side blind and half cylinder per cylinder Cam position and free wheeling function
SST= Description 90-270 90-270 degrees 270-90 270-90 degrees 270-0 270-0 degrees 0-90 0-90 degrees 180-90 180-90 degrees 270-180 270-180 degrees 135-180 135-180 degrees 135-225 135-225 degrees 90-180 90-180 degrees 180-270 180-270 degrees 270-30 270-30 degrees 330-90 330-90 degrees FZG Freewheeling cylinder for gear locks SST= Area of application Description K901179 Mul-T-Lock type Diameter 24 mm / Module 2 / 10 teeth K901180 VIRO/IKON .138 type Diameter 30 mm / Module 1,5 / 18 teeth K901188 Italian type Diameter 27 mm / Module 1,5 / 16 teeth K901293 Laperche type Diameter 24 mm / Module 1,5 / 14 teeth Special identification marking
Description Info Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=) per cylinder ATEX= Description Info II 2G Ex ib IIB T4 Gb Locking cylinders for Zone 1 hazardous areas per cylinder V2= AUS3= Description Info ONLINE Cylinder with function "Online Open", frontal marking with symbol "@" per cylinder SEQUENCE Cylinder with function "two-man rule", frontal marking with symbol "&" per cylinder OHNE AUDIT Cylinder without events list, frontal marking with symbol "§" per cylinder Installation lengths of half cylinders
L_A= 28 30 35 40 45 50 55 60 65 70 75 80 VAR= Description Area of application Info 1901229+3+2MAL M4 Fixing bore M4 For profile half cylinder per cylinder K901310-X-BIFFAR Double cam with 2 outputs arranged 180° from each other For profile cylinder per cylinder
