ATEX
For use in explosion-prone areas

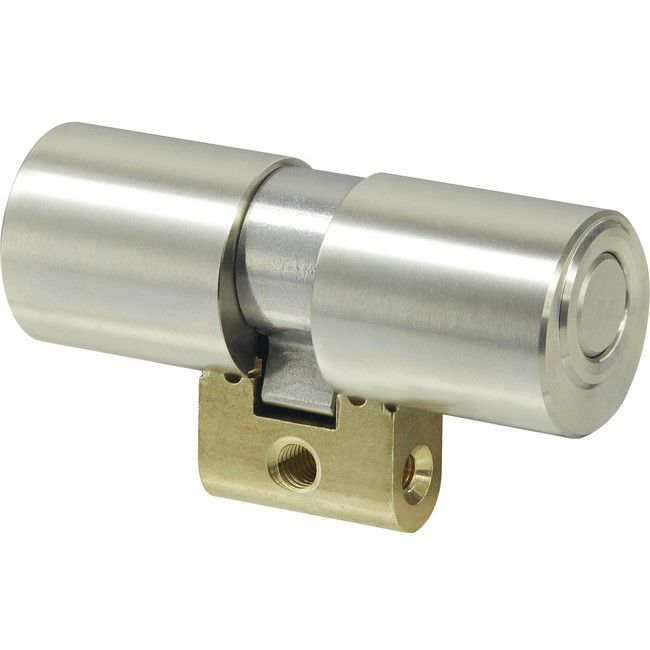

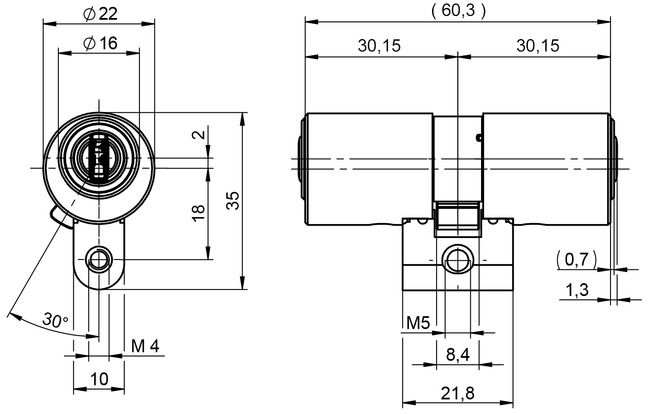

CH profile double cylinder eCLIQ N488
One side required locking action (A), one side dummy (B) - without key
Product description
- Available as rotary secured or electronical version (V=)
- Brass cylinder housing components
- Standard finish, satin nickel-plated (OF=MV)
- Basic cylinder length 61 mm (C) - A/B (L=30/30) - other installation lengths available - flexible modular system
- Standard locking cam position (SST=30°); differing locking bit position available
- Optionally available with anti drilling protection class 2 (AB=2)
- Both side locking (GE=BS) and 360° free-wheeling function as standard
- Cam made of break-proof, corrosion-resistant stainless steel
- Maintenance-free for up to 200,000 cycles
- Splash-proof IP54
- Dust and rain cover for one side available (SUR=1) IP55
- Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)
Scope of delivery
- 1 cylinder fixing screw M5 x 85 mm
Article number OF= (Surface) L= (Length) V= (Version) N488 MV/MV (Matt, nickel-plated) 30/30 D (Rotary secured version) MV/MV (Matt, nickel-plated) 30/30 E (Electronic version)
Special identification marking
Description Info Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=) per cylinder AB= Description Area of application Info -/2 Security category 2 drilling protection For profile double cylinders per side 2/2 Security category 2 drilling protection For profile double cylinders per cylinder 2/- Security category 2 drilling protection For profile double cylinders per side ATEX= Description Info II 2G Ex ib IIB T4 Gb Locking cylinders for Zone 1 hazardous areas per cylinder OF= Area of application Info MC For profile and locking lever cylinders per cylinder MP For profile and locking lever cylinders per cylinder MV For profile and locking lever cylinders per cylinder MG For profile and locking lever cylinders per cylinder ../.. For profile double and knob cylinders per cylinder SUR= Area of application Info 3/- For profile double cylinders per side -/3 For profile double cylinders per side Cam position and free wheeling function
SST= Description 270-90 270-90 degrees 270-0 270-0 degrees 90-270 90-270 degrees 270-180 270-180 degrees 135-180 135-180 degrees 0-90 0-90 degrees 180-90 180-90 degrees 180-270 180-270 degrees 135-225 135-225 degrees 90-180 90-180 degrees 330-90 330-90 degrees FZG Freewheeling cylinder for gear locks 270-30 270-30 degrees V2= AUS3= Description Info OHNE AUDIT Cylinder without events list, frontal marking with symbol "§" per cylinder ONLINE Cylinder with function "Online Open", frontal marking with symbol "@" per cylinder SEQUENCE Cylinder with function "two-man rule", frontal marking with symbol "&" per cylinder Installation lengths of double and knob cylinders
