ASSA ABLOY

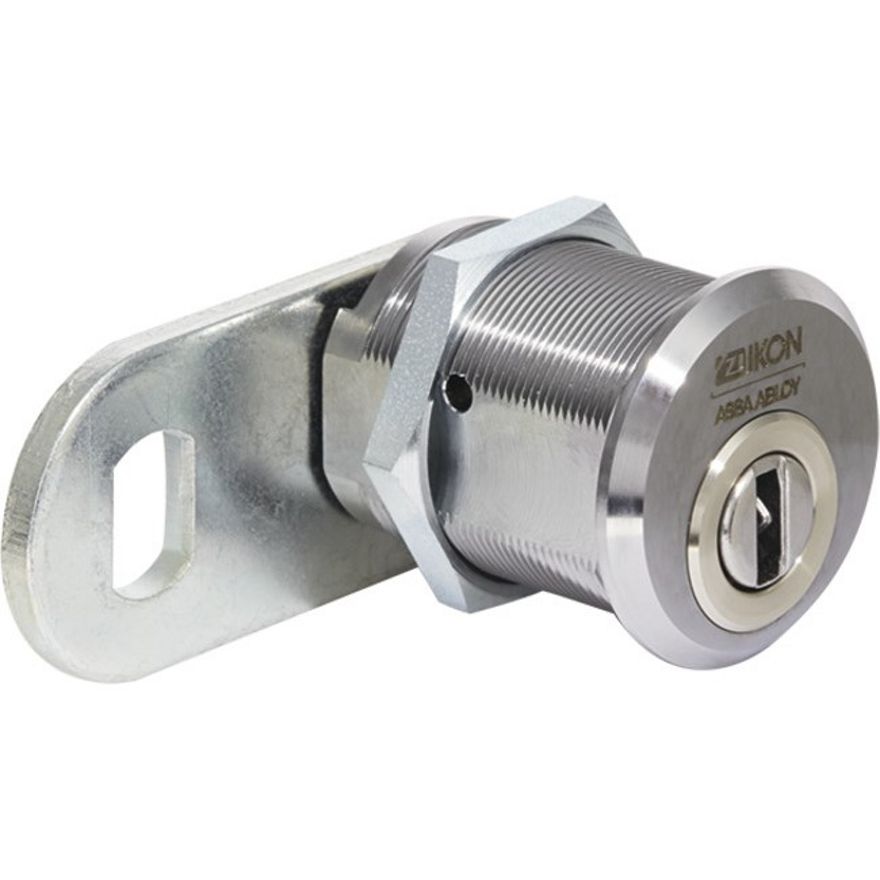

Locking lever cylinder eCLIQ N923

25 mm diameter, laterally flattened to 22 mm - without key

Product description

  • Available as rotary secured or electronical version (V=)
  • Brass cylinder housing components
  • Standard finish, matt chrome-plated (OF=MC)
  • Dimension in mm A, L, B: 38, 29, 21
  • Fixing with M25 x 0.75 housing nut
  • Standard locking lever (SLHB=1645009)
  • Locking path and locking lever path 90º left or right
  • Key withdrawal when locking lever is closed
  • Maintenance-free for up to 200,000 cycles
  • Dust and rain cover available (SUR=1) IP55
  • Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)

Scope of delivery

  • 1 locking lever cylinder
  • 1 housing nut M25 x 0.75 x 4
  • 1 core nut, M8 x 0,75 x 3

Ordering Information

  • Please include the desired locking path (SST=) in your order.
ATEXATEX

ATEX

For use in explosion-prone areas

Security CardSecurity Card

Security Card
  •
    		 Order number
    		 Product

    		N109,V=E1 Key eCLIQ

    		N109,V=E2 Key eCLIQ

    		N109,V=E3 Key eCLIQ

    		N109,V=B1/B2/B3 Key eCLIQ

    		N109,V=PR/PSM/PN Key eCLIQ
  • Article numberOF= (Surface)V= (Version)
    N923MC (Satin chrome brass)D (Rotary secured version)
     MC (Satin chrome brass)E (Electronic version)
