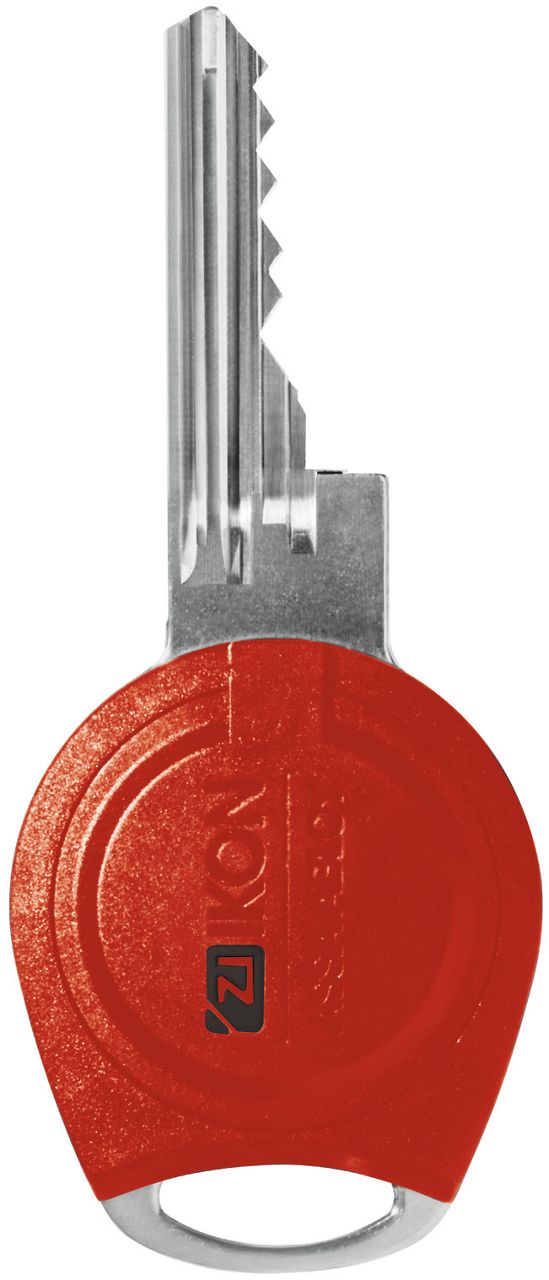

Key +CLIQ S130,V=PR/PSM/PN

Programming key - no locking function

Product description

• Transfers up to 3,000 programming steps to cylinders
• Can read out up to 6,000 events from the cylinders and transmit these to software
• Electronic authorisation confirmation within the software
• Protected by a 6-digit individual PIN code
• Unique and locking system encryption
• Optical display and acoustic signalling for access authorisation und battery status
• The data and power transmission to the cylinder is contact based
• The data transmission to the cylinder is highly encrypted
• Temperature range 0° C to +70° C
• Splash-proof
• Power supply via commercially-available lithium battery (CR2032) approx. 2 year shelf life
• The battery can be easily changed by the user without tools

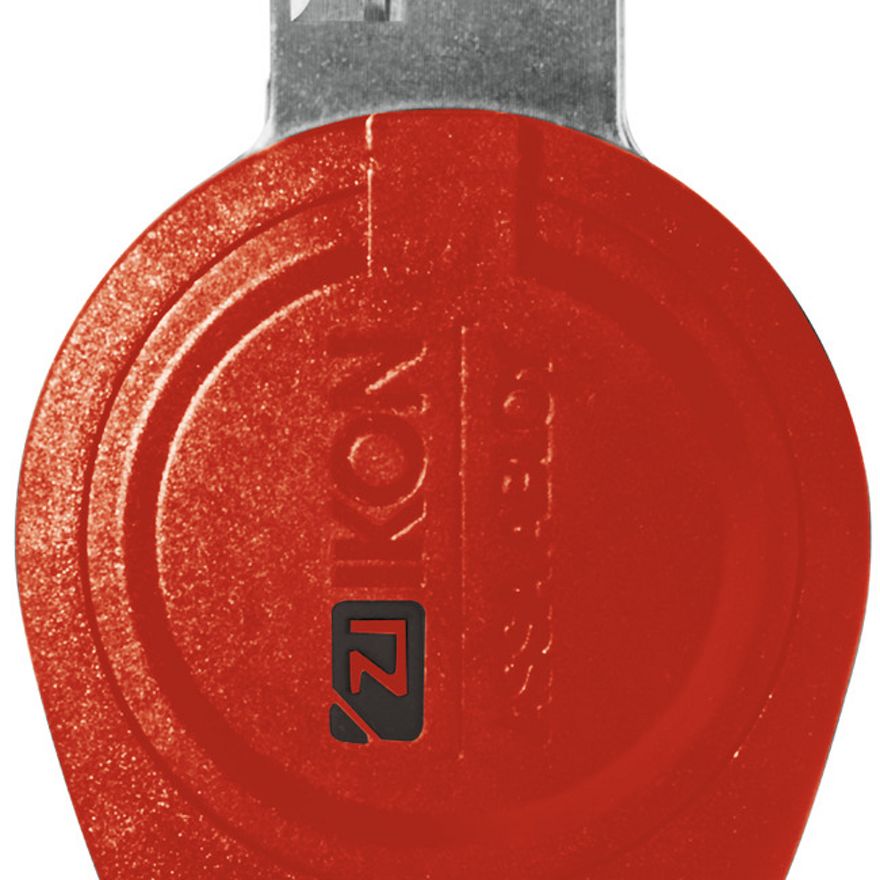

• Battery cover colour - red (FB=RT)
• Further subordinate programming keys (S130,V=PSM sub-programming-key with the ability to reprogram ) are optionally available for a locking system
• Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G EX IB IIB T4 Gb

Scope of delivery

• 1 programming key incl. battery
