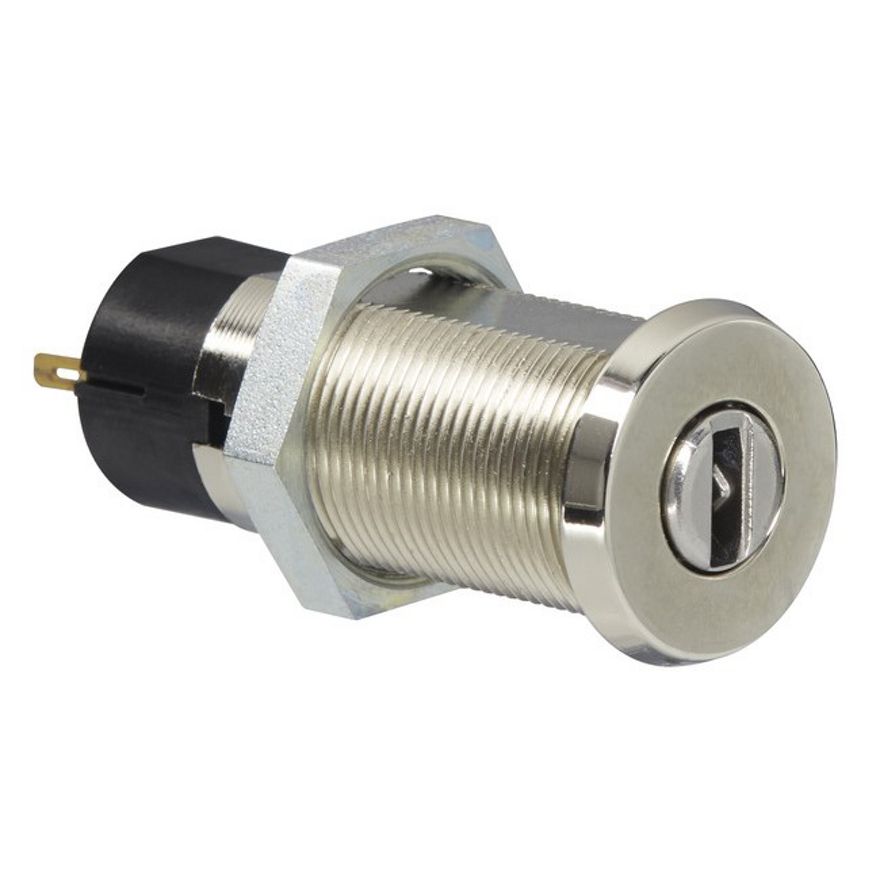

Switch cylinder CLIQ® Go NT04,SERVICE=CLIQGo
19 mm Diameter, laterally flattened to 16 mm - without key
Product description
- Available as electronical version (V=)
- Switch cylinder with one key withdrawal position at 0° and one scanning position at 60° (AUS=OFF)
- Optionally with 2 key withdrawal positions at 0° and 60° (AUS=ON/OFF)
- Brass cylinder housing components
- Maintenance-free for up to 200,000 cycles
- Splash-proof IP54
- Dust and rain cover available (SUR=1) IP55
- Key rotation 60°
- A rotation actuates a switch device (e.g. underground car parks, etc.).
- One microswitch F4T6-GP UL (Burgess) (VAC 48 V/ resistive load 5A, VAC 48 V/ inductive load 0.5 A)
- Fixing with M19 x 1 x 5 housing nut
Scope of delivery
- 1 switch cylinder
- 1 housing nut M19 x 1 x 5
Article number OF= (Surface) V= (Version) NT04,SERVICE=CLIQGo MV (Matt, nickel-plated) E (Electronic version) Special identification marking
Description Info Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=) per side OF= Area of application Info MV For profile and locking lever cylinders per cylinder SUR= Area of application Description Info 0 Deviating from the standard cap per cylinder 1 For special cylinders per cylinder V= E D Downloads for Product
