ATEX
For use in explosion-prone areas

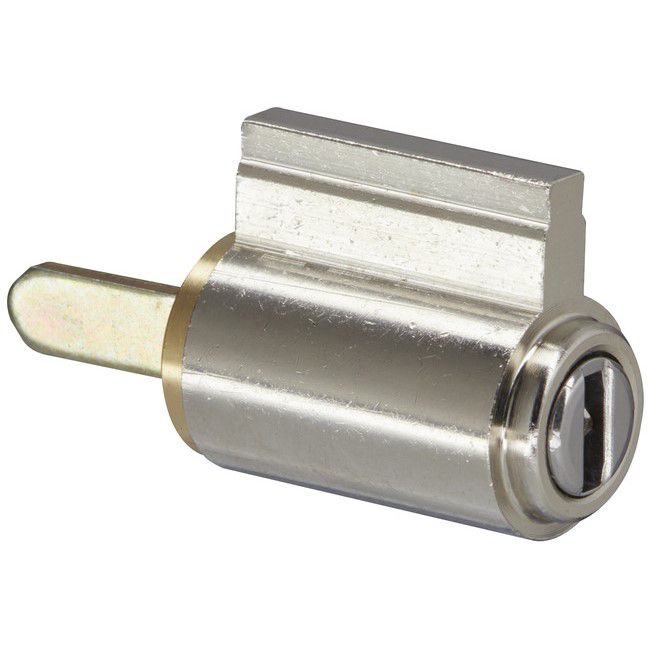

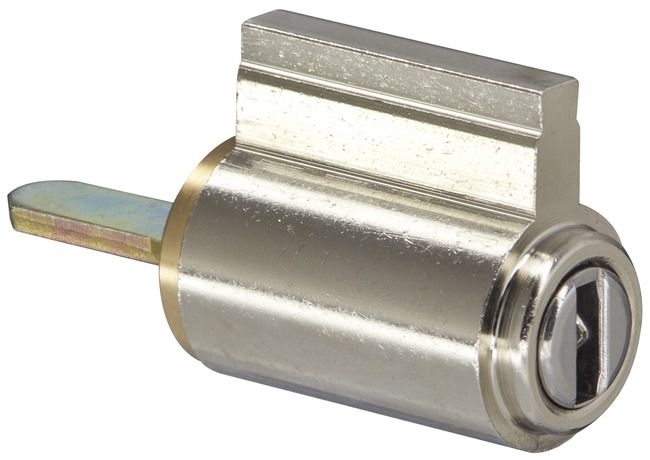

KIK Cylinder CLIQGo NT08,SERVICE=CLIQGo
Without key
Product description
- KIK (Key In Knob) cylinders are special cylinders designed specifically for use in lockable knobs, levers and handles. They are also used in LFIC (Large Format Interchangeable Core) cylinders as interchangeable sets in various applications such as padlocks, mortise locks, rim locks, etc.
- Available as rotary secured or electronical version (V=)
- Standard with horizontal output (ABTR=HOR), optional with vertical output (ABTR=VER)
- Brass cylinder housing components
- Standard finish, satin nickel-plated (OF=MV)
- Maintenance-free for up to 200,000 cycles
- Dust and rain cover available (SUR=1) IP55
- Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)
Scope of delivery
- 1 KIK Cylinder
Security Card
Article number OF= (Surface) V= (Version) NT08,SERVICE=CLIQGo MV (Brass, satin nickel-plated) D (Rotary secured version) MV (Brass, satin nickel-plated) E (Electronic version) Special identification marking
Description Info Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=) per side OF= Area of application Info MV For profile and locking lever cylinders per cylinder SUR= Area of application Description Info 0 Deviating from the standard cap per cylinder 1 For special cylinders per cylinder V= E D Downloads for Product
