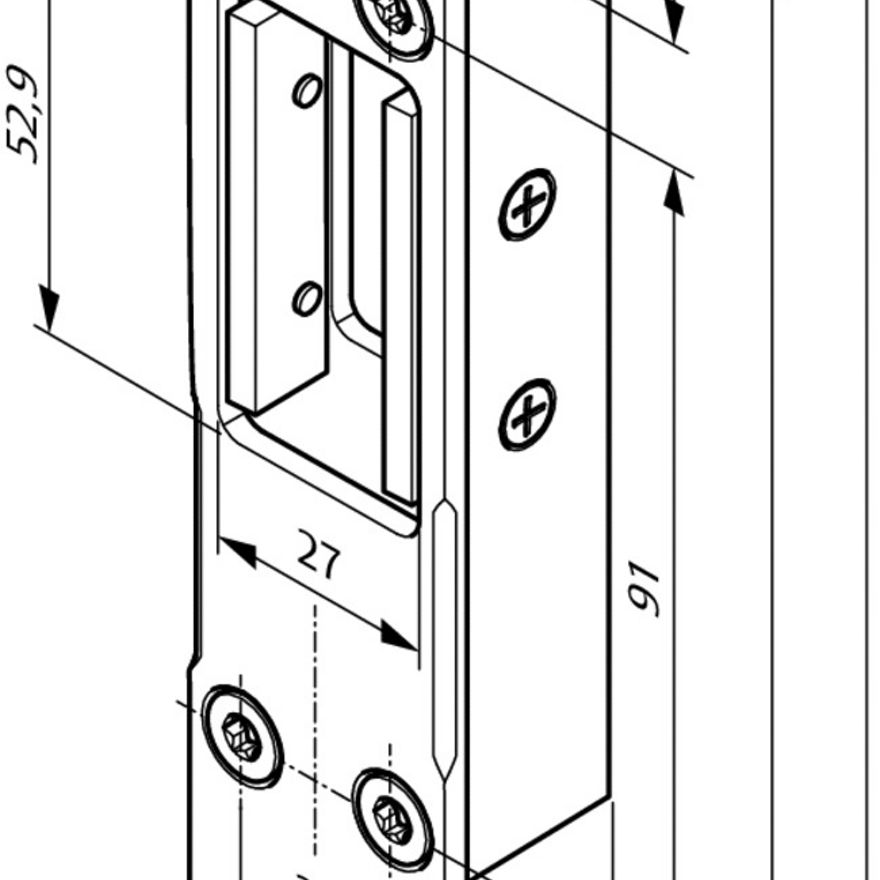

Striking plate L4 (adjustable, universal)
Product description
Adjustable L4 striking plate with integrated magnets suitable for Technilock® L4
Overview of advantages
- DIN left and right usable
Scope of delivery
- 1 piece striking plate
Note
- *= material thickness + bolt pocket build-up
Version Adjustable Length 265 mm Width 34 mm Thickness 3 mm Case depth 3 + 18 mm* Color Stainless steel Material EST: 1.4301 DIN-direction Universal Product Order Number Striking plate L4 - Adjustable, DIN Universal 844L4SBL3----01
