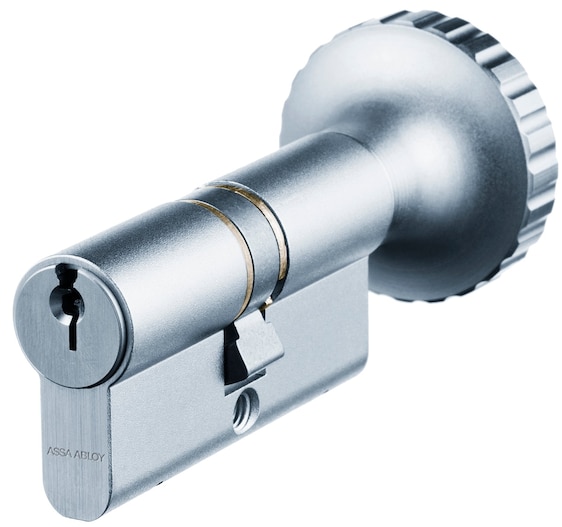

P621 - Single cylinder with large round turn

Article number: 711244*

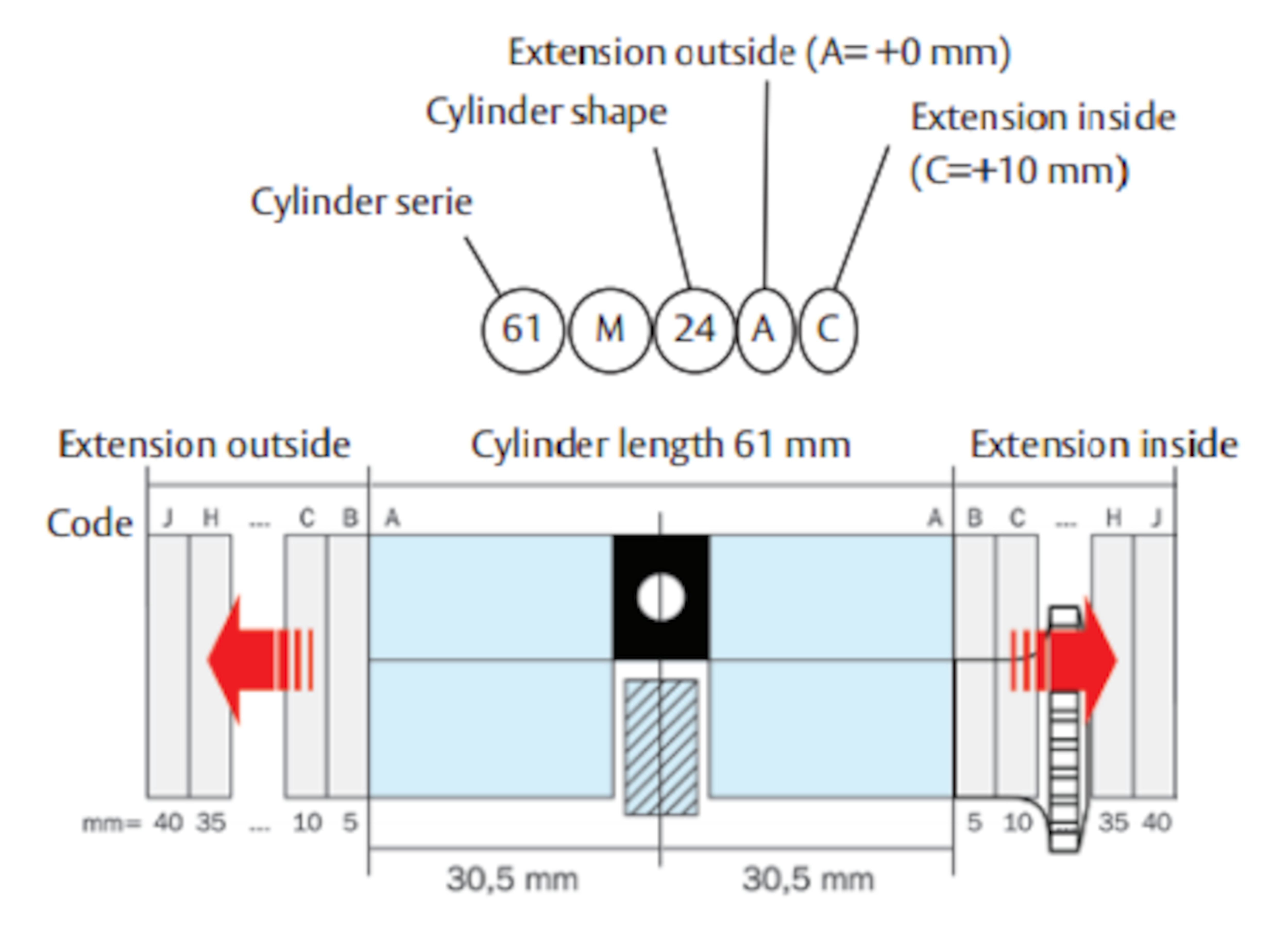

*ASSA cylinders article numbers consist of a six numbered code followed by a three numbered variation code followed by a three numbered surface treatment code.

Only a full article number is valid ex. XXXXXX-YYY-ZZZ.

Application

For use with locks accepting Euro profile cylinders.

Specification

Cylinders are supplied with fixing screw.

Standard lengths are 61mm and 71mm.

Extended length cylinders are also available.

Decorative and security accessories are available: see Door Furniture section.

Optional functions:

A1 - Classroom, clockwise

B1 - Classroom, anticlockwise

C1 - Clutch

DA1 - Dual action

Surface treatment

• Satin Chrome (213)
• Polish Chrome (211)
• Polish Brass (220)
• Satin Brass (221)
• Brown oxid (044)

Warranty

ASSA warrants its cylinders against defective workmanship or wear under normal use and with regular maintenance.

Article number: 711259*

*ASSA cylinders article numbers consist of a six numbered code followed by a three numbered variation code followed by a three numbered surface treatment code.

Only a full article number is valid ex. XXXXXX-YYY-ZZZ.

Application

For use with locks accepting Euro profile cylinders.

Specification

Cylinders are supplied with fixing screw.

Standard lengths are 40mm and 45mm.

Extended length cylinders are also available.

Decorative and security accessories are available: see Door Furniture section.

Optional functions:

A1 - Classroom, clockwise

B1 - Classroom, anticlockwise

C1 - Clutch

DA1 - Dual action

Surface treatment

• Satin Chrome (213)
• Polish Chrome (211)
• Polish Brass (220)
• Satin Brass (221)
• Brown oxid (044)

Warranty

ASSA warrants its cylinders against defective workmanship or wear under normal use and with regular maintenance.

Article number: 711264*

*ASSA cylinders article numbers consist of a six numbered code followed by a three numbered variation code followed by a three numbered surface treatment code.

Only a full article number is valid ex. XXXXXX-YYY-ZZZ.

Application

For use with locks accepting Euro profile cylinders.

Specification

Cylinders are supplied with fixing screw.

Standard lengths are 61mm and 71mm.

Extended length cylinders are also available.

Decorative and security accessories are available: see Door Furniture section.

Optional functions:

A1 - Classroom, clockwise

B1 - Classroom, anticlockwise

C1 - Clutch

DA1 - Dual action

Surface treatment

• Satin Chrome (213)
• Polish Chrome (211)
• Polish Brass (220)
• Satin Brass (221)
• Brown oxid (044)

Warranty

ASSA warrants its cylinders against defective workmanship or wear under normal use and with regular maintenance.

Article number: 711289*

*ASSA cylinders article numbers consist of a six numbered code followed by a three numbered variation code followed by a three numbered surface treatment code.

Only a full article number is valid ex. XXXXXX-YYY-ZZZ.

Application

For use with locks accepting Euro profile cylinders.

Specification

Cylinders are supplied with fixing screw.

Standard lengths are 61mm and 71mm.

Extended length cylinders are also available.

Decorative and security accessories are available: see Door Furniture section.

Optional functions:

A1 - Classroom, clockwise

B1 - Classroom, anticlockwise

C1 - Clutch

DA1 - Dual action

Surface treatment

• Satin Chrome (213)
• Polish Chrome (211)
• Polish Brass (220)
• Satin Brass (221)
• Brown oxid (044)

Warranty

ASSA warrants its cylinders against defective workmanship or wear under normal use and with regular maintenance.
