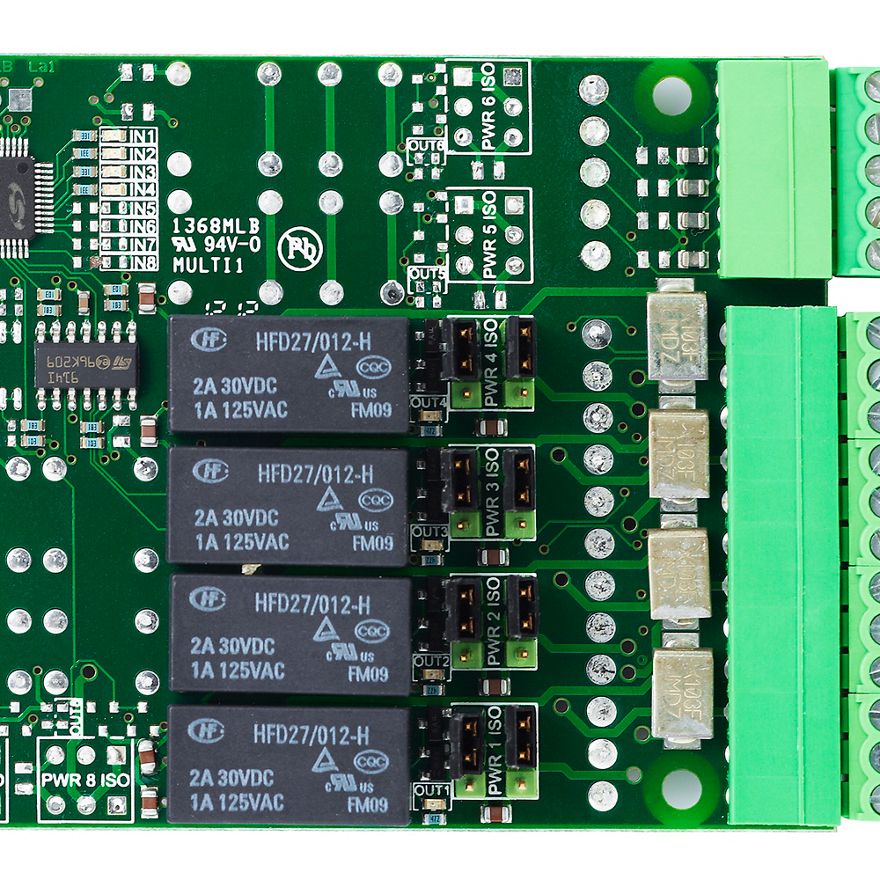

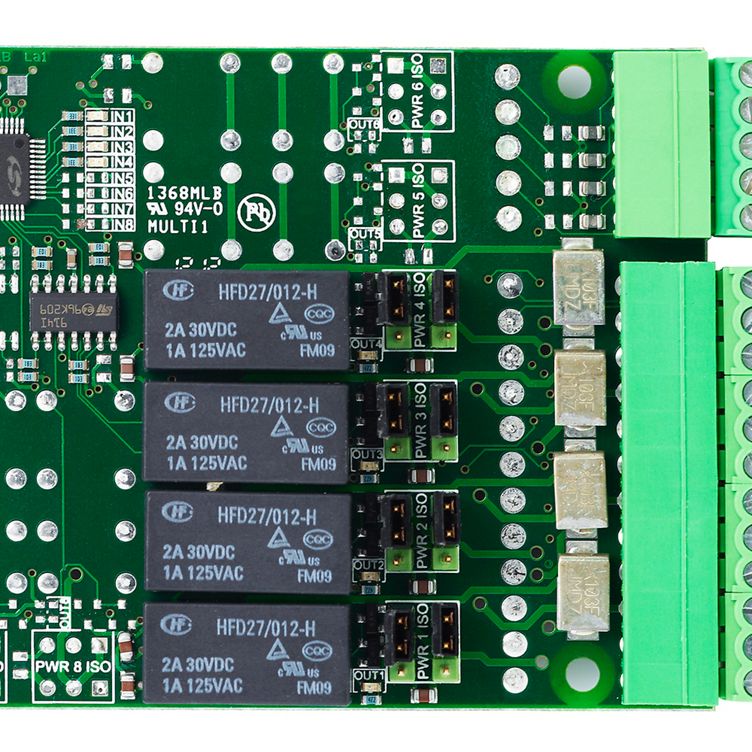

Styra I/0 4400 | ASSA ABLOY

Accessory for installation on Styra 3000

Features and advantages

Four independently programmable relay outputs (switching function).
Four independently programmable inputs,
(BS, dry contact or impulse metering as per SO).
LED for indication of input status.
LED for indication of output status.
Outputs protected by thermal fuse (PTC).
Burglar, fire, motion or leakage sensors, door contacts, open buttons, encoders etc. can be connected to one of the inputs.
Electric striking plate, motor lock, siren, laundry equipment controls, elevator controls etc. can be connected to the relay outputs.
Max. two Styra I/O 4400 concurrently per control unit.

ELECTRICAL DATA
Power supply V DC:	24/12
Consumption Watts:	min 0,24 max 1,44 at 24V
Amp:	min 0,010 max 0,060 for 24V
ENVIRONMENT
Temperature ˚C:	-0 to +40
Humidity %:	10 to 90

OUTPUTS
Number of outputs:	4
Contact data relay:	28V, 1A
Relay function:	Switching
Fuse:	1A PTC per relay
PWR/ISO:	Adjustable for each relay
LysdLED indicates when output is active:	Yes

INPUTS
Number of inputs:	4
Detection of dry contact/breaker:	Yes
Supports connection of double balanced sensors:	Yes
Configuration of threshold values from Multiaccess:	Yes
Impulse meter function as per S0:	Yes
LEDs for indication of input status:	Yes

COMMUNICATION
Communication to Styra 3000:	RS 485 (A485) internal, in control unit.
Mått i mm
Height:	65
Width:	98
Depth:	18
Net weight in kg:	0,10
