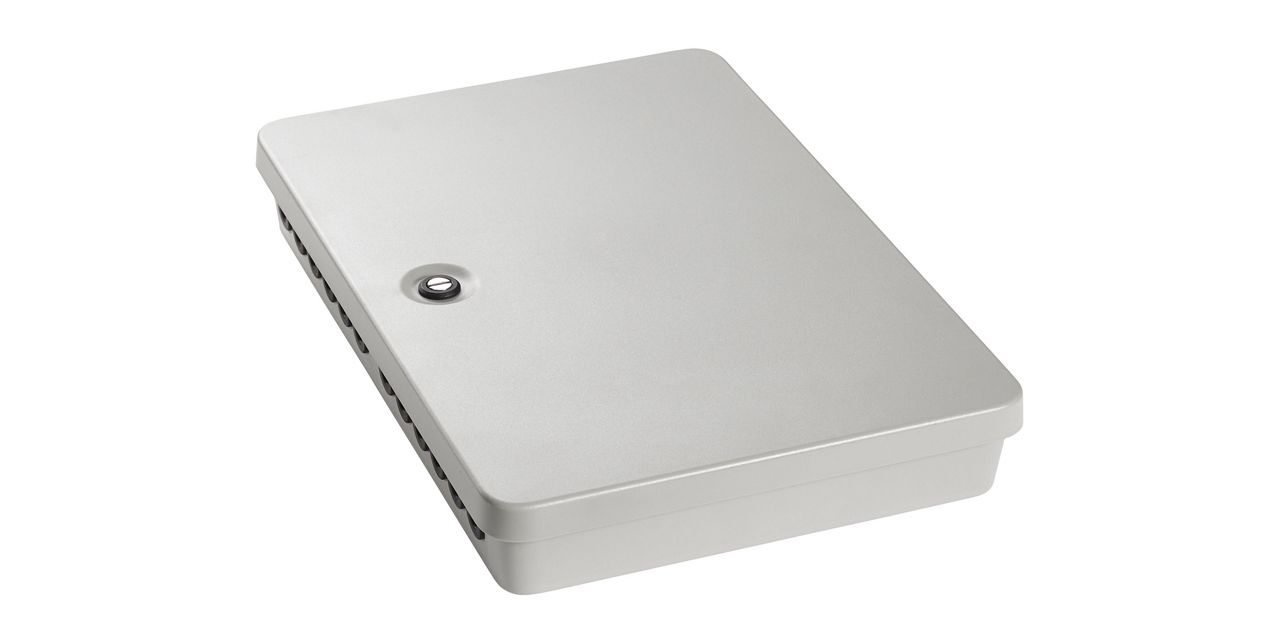

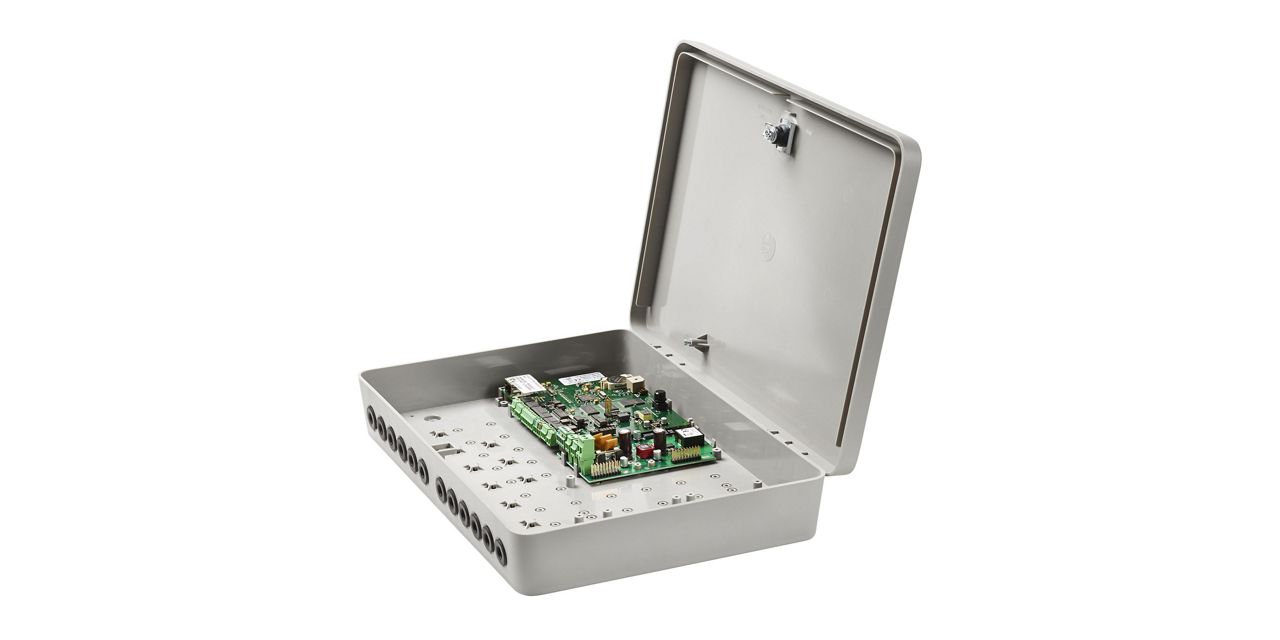

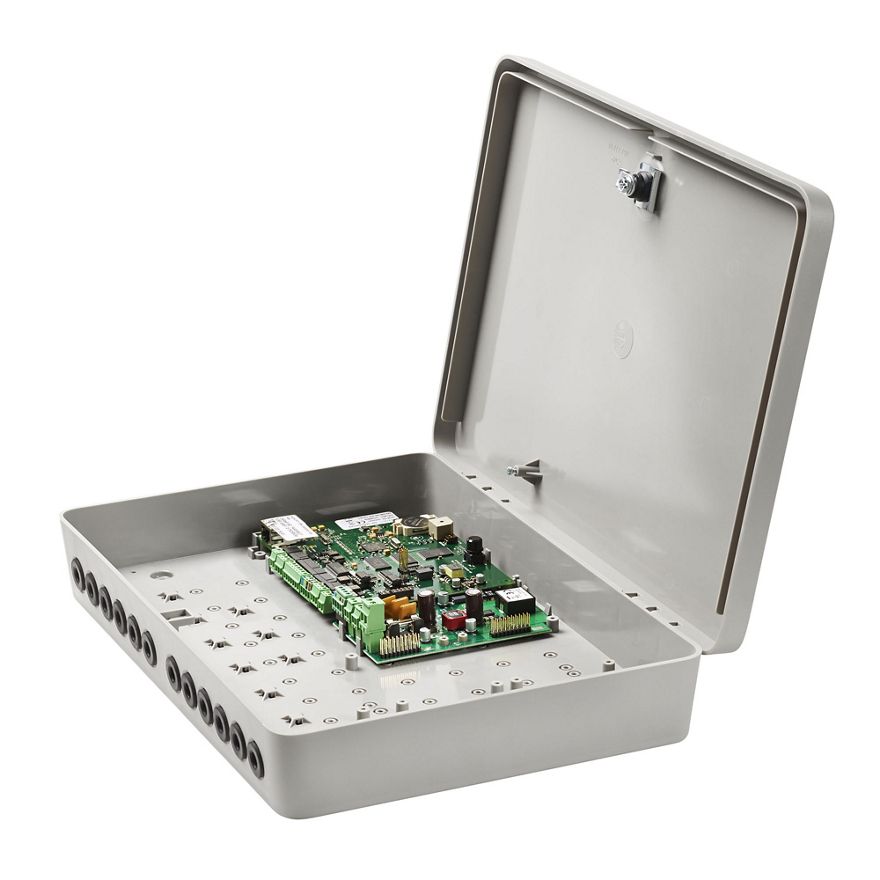

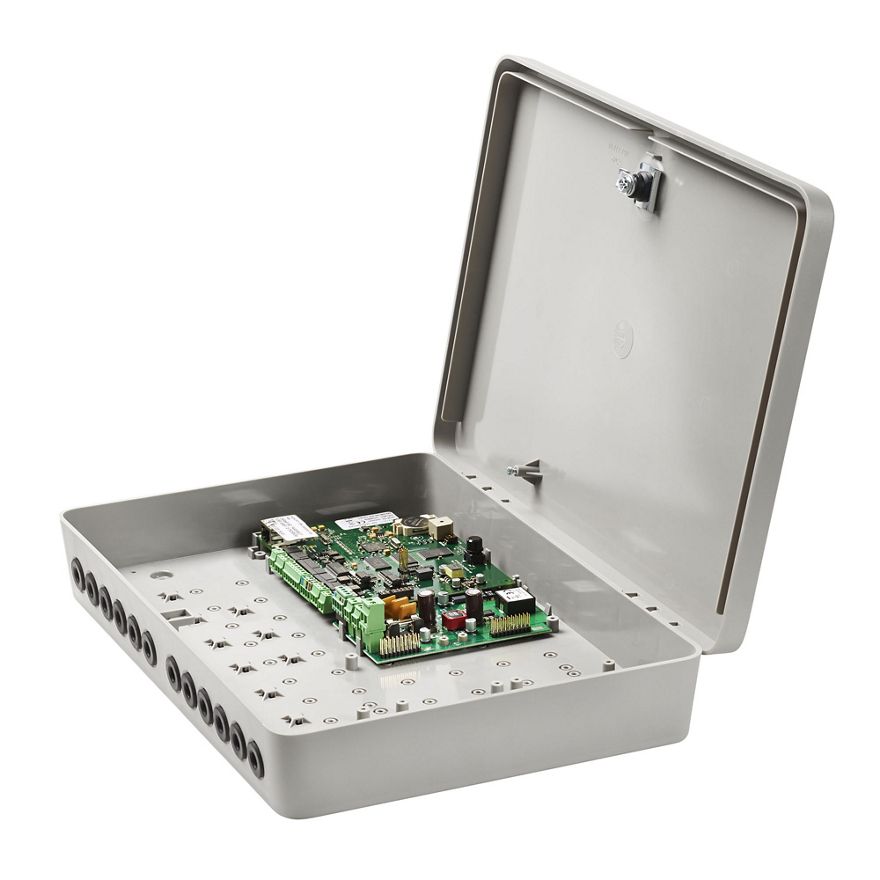

Control unit for access, booking, entrance phone, alarm and energy systems.
*) Cannot be combined with entry phone.
**) Requires Styra Porttelefonkort 4400.
***) Requires AXI2O16.
Electrical data | ||||||||||
Power supply V DC: | 24/12 | |||||||||
Consumption Watt: | min. 1,6 max. 2,3 at 24V | |||||||||
Amp: | min. 0,065 max. 0,095 at 24V | |||||||||
Environment | ||||||||||
Temperature ˚C: | -0 to +40 | |||||||||
Humidity % Rh: | 10 to 90 | |||||||||
Product data | ||||||||||
Number of users max. | 65 535 | |||||||||
Number of customers max. | 9000 | |||||||||
Registration of events / alarms | 24 000 / 2000 | |||||||||
Registration of meter readings | 64 points, 768 values/ point /32 days 384 | |||||||||
Number of time zones | 384 | |||||||||
Number of booking items | 16 | |||||||||
Booking boards (Booking) | 4 | |||||||||
INPUTS/OUTPUTS (BASE CARD) | ||||||||||
Transistor output., e.g. for lock opening | 1 | |||||||||
Inputs for dry contact connection for e.g. door indication, open button or Impulse metering | 2 | |||||||||
COMMUNICATION | ||||||||||
Communication between master and PC | Ethernet, Modem and RS 232 (AES128) | |||||||||
Communication between master unit and slave unit | Ethernet, RS 485 (AES128) | |||||||||
Communication with reader, door unit, motor lock etc. | RS 485 (A485) | |||||||||
EXPANSION OPTIONS (internal) | ||||||||||
Inputs, optional use , BS | 16 (requires 2 Styra I/O 8800) | |||||||||
Relay outputs, optional use, switching terminal | 16 (requires 2 Styra I/O 8800) | |||||||||
A485 doors, fused and protected | 8 (e.g. with 2 Styra Komkort 4000) | |||||||||
EXPANSION OPTIONS (external) | ||||||||||
By connecting external units to the control unit, more functions can be added such as: | ||||||||||
Inputs | 64 totalt | |||||||||
Outputs | 96 | |||||||||
Bus for 1-wire sensor | Yes | |||||||||
Mbus | Yes | |||||||||
Control of building mailboxes | Yes | |||||||||
Communication with laundry equipment | Yes | |||||||||
Dimensions in mm | ||||||||||
Height: | 239 | |||||||||
Width: | 357 | |||||||||
Depth: | 62 | |||||||||
Net weight in kg: | 2,5 |
