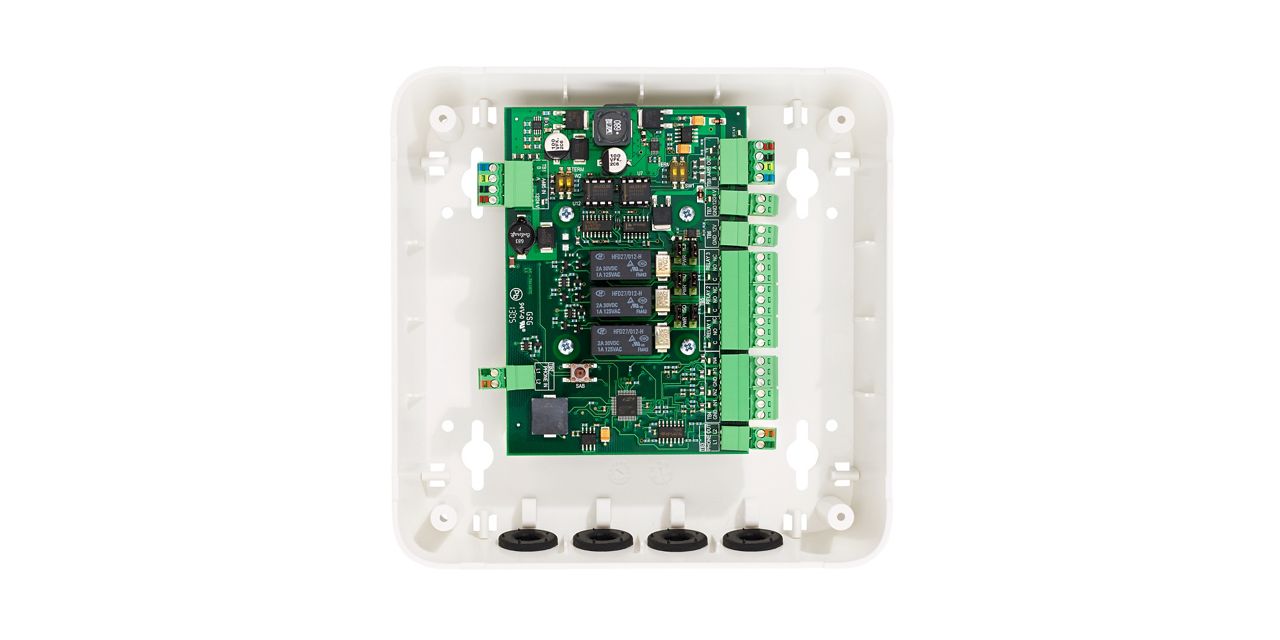

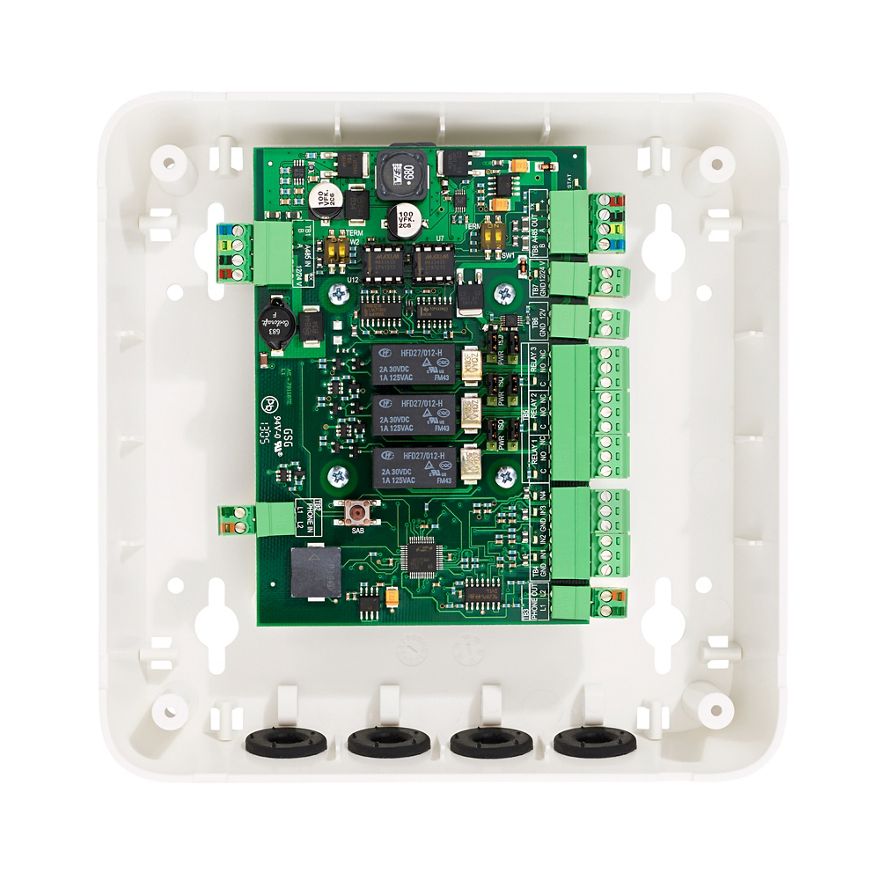

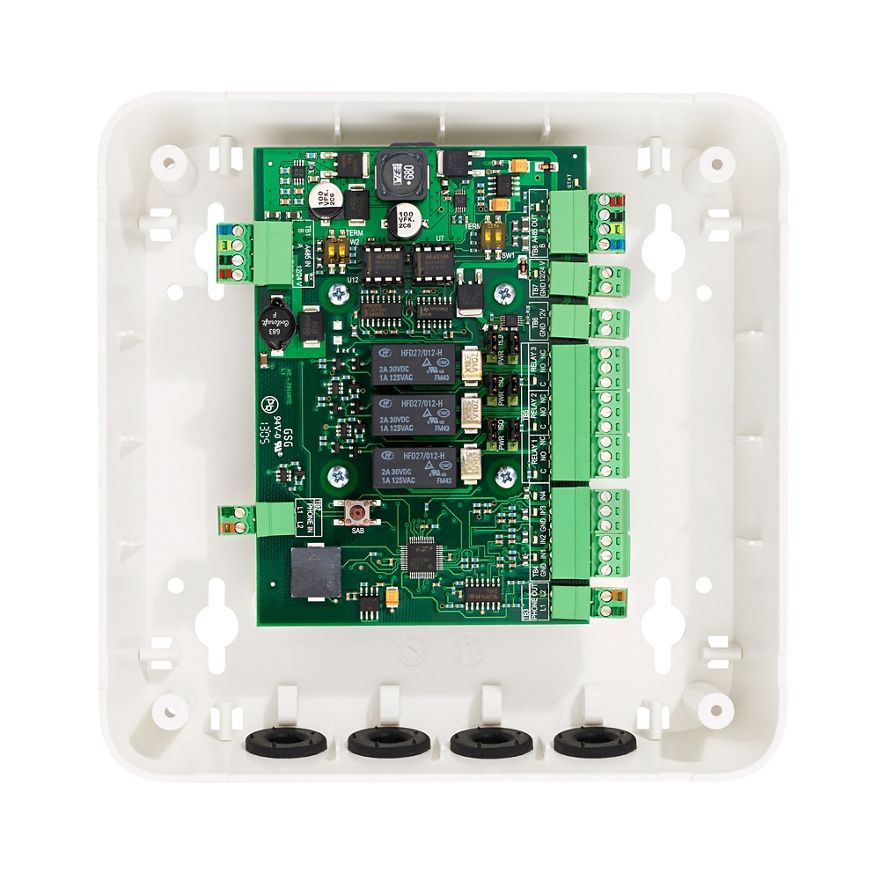

Door unit for access, booking, entry phone, alarm and energy systems. Koppla 4300 has 4 double balanced inputs and three outputs.
ELECTRICAL DATA | ||||||||||
Power supply V DC | 24/12 | |||||||||
Consumption Watts | min 0,48 max 5,04 at 24V | |||||||||
Amp | min 0,02 max 0,21 for 24V | |||||||||
ENVIRONMENT | ||||||||||
Temperature ˚C | -0 to +40 | |||||||||
Humidity % | 10 to 90 | |||||||||
PRODUCT DATA | ||||||||||
Number of A485 ports | 2 (unit side, door side) | |||||||||
A485 repeater, unit side -> door side | Yes | |||||||||
Fused output voltage A485 port | 1,0 A (12V) | |||||||||
Automatic fuse reset | Yes | |||||||||
LEDs for indication of communication status | Yes | |||||||||
LysdioLEDs for indication of fuse status | Yes | |||||||||
Blown fuses logged to Multiaccess | Yes | |||||||||
OUTPUTS | ||||||||||
Number of outputs | 3 | |||||||||
KontaContact data relay | 28V, 1A | |||||||||
Relay function | Switching | |||||||||
Fuse | 1A PTC per relay | |||||||||
PWR/ISO | Adjustable for each relay | |||||||||
LED indicates when output is active | Yes | |||||||||
Sequential startup | Yes | |||||||||
INPUTS | ||||||||||
Number of inputs | 4 | |||||||||
Detection of dry contact/breaker | Yes | |||||||||
Supports connection of double balanced sensors | Yes | |||||||||
Configuration of threshold values from Multiaccess | Yes | |||||||||
Impulse meter function as per S0 | Yes | |||||||||
LEDs for indication of input status | Yes | |||||||||
EXTERNAL POWER SUPPLY | ||||||||||
12 V | Yes, shares 1 A fuse with A485 out | |||||||||
24V | Yes, fused 2A | |||||||||
COMMUNICATION | ||||||||||
Communication to Styra 3000 | RS 485 (A485) | |||||||||
Communication with reader, motor lock etc | RS 485 (A485) | |||||||||
DIMENSIONS, mm | ||||||||||
Height | 163 | |||||||||
Width | 163 | |||||||||
Depth | 40 | |||||||||
Net weight in kg | 0,4 |
