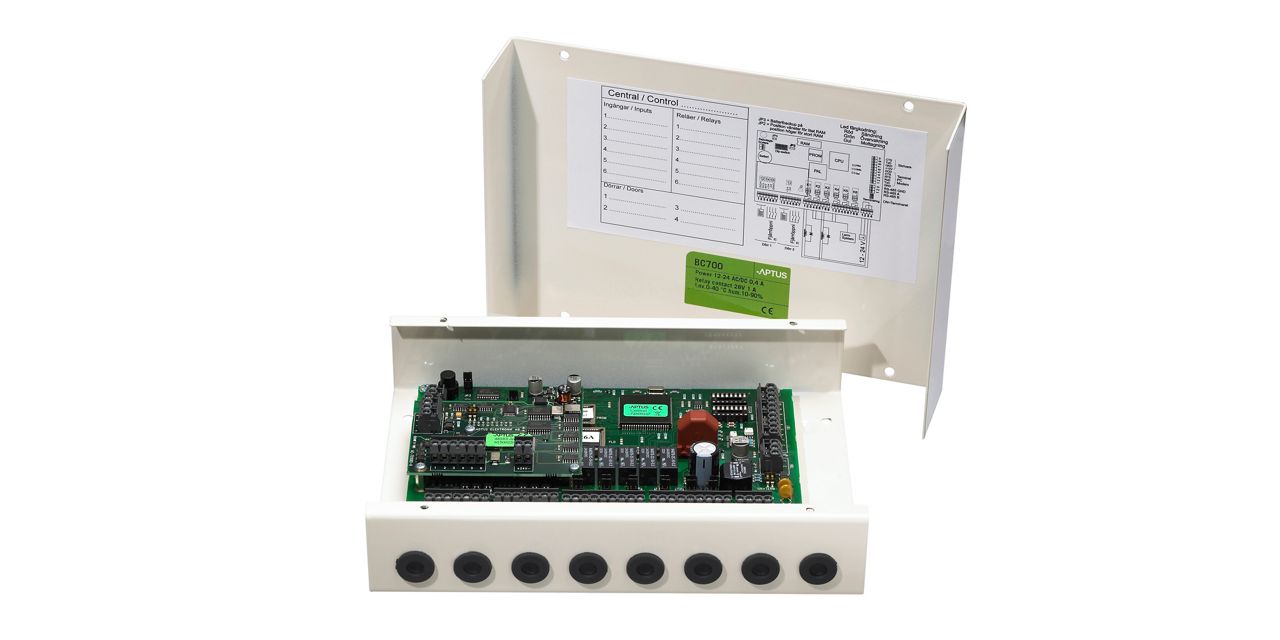

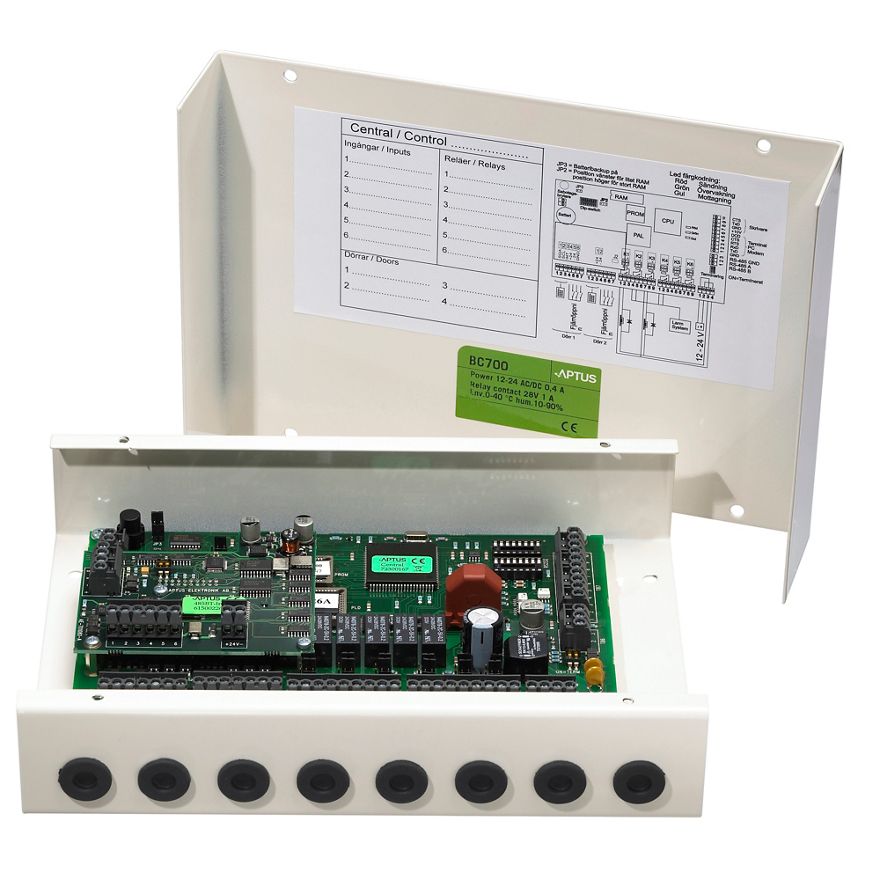

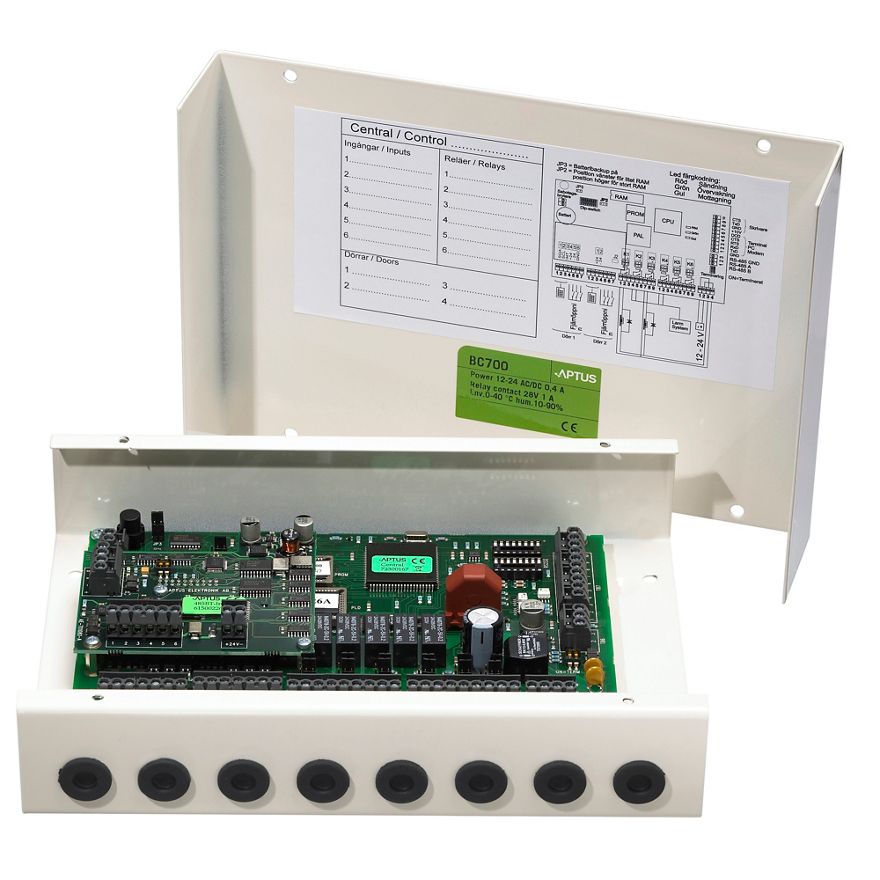

BC 700S Boka

Slave unit for booking system (four doors, one booking board)

Features and advantages

Communication between the computer and control unit is encrypted using 128-bit keys.
Communication between the control unit and reader is encrypted using 32-bit keys.
Control unit with dynamic memory.
Up to 30,000 users.*
Registration of up to 6,500 events.*
Up to 255 time zones.*
Integrated real-time clock.
Control unit for Boka booking board.
Capable of controlling four doors.
Two readers can be connected per door (in and out readers).
Six independently programmable relay outputs.
Six independently programmable inputs.
All relays can be set to dry contact or for use of control unit power supply.
Battery back-up (memory) and tamper switch.
Can be set via Windows software (Multiaccess).
Centralized communications with MultiServer via master.
Functions: door access, booking functions, (for information on booking functions see product sheet Boka 1316), alarm bypass, group alarm bypass, alarm reconnection, anti-passback, interlock system, duress code, lists people in building, acknowledgement of external alarm/panic alarm.
Time zone functions: Time and input controlled, reader controlled and booking list times.
Compatible with AD 6X XX, AD 7X XX and Öppna series readers.
If AD 7X XX readers, Låsa 1169 or Öppna readers are selected, a total of four doors can be connected.
If AD 6X XX readers are selected, only two door environments can be connected.
