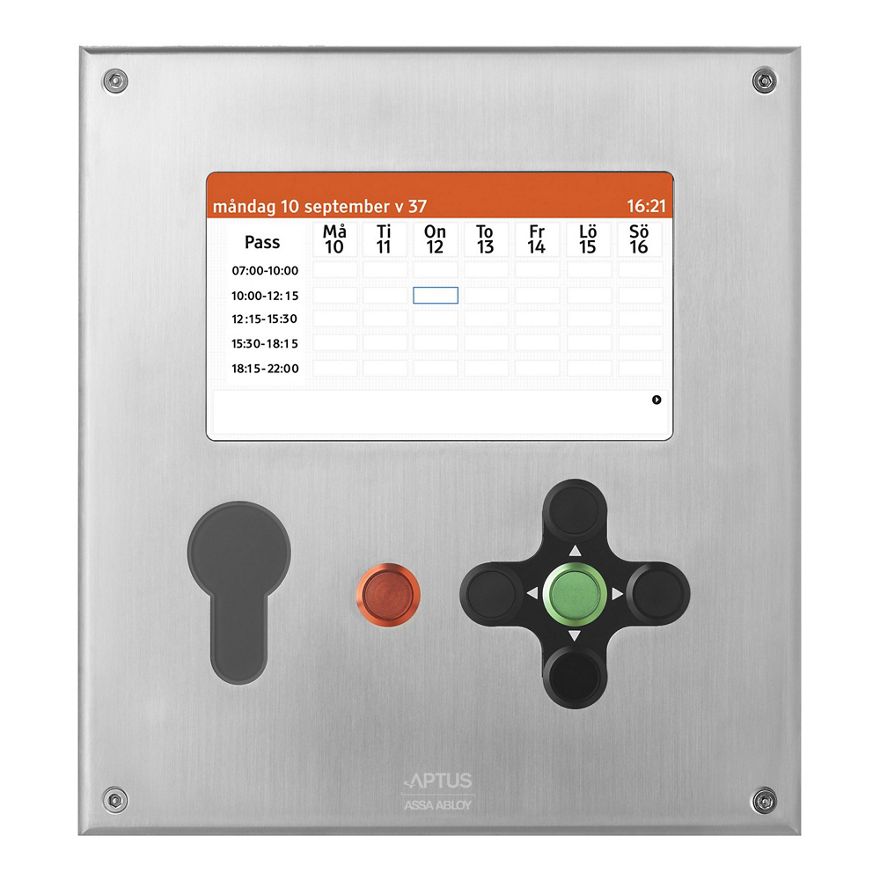

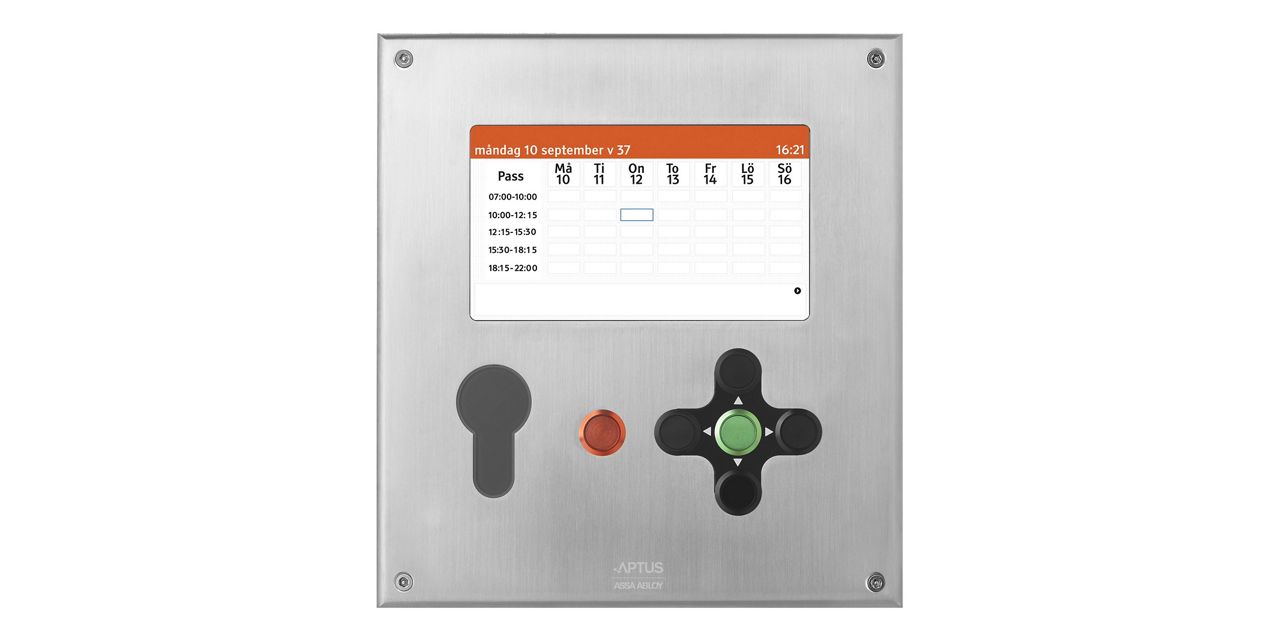

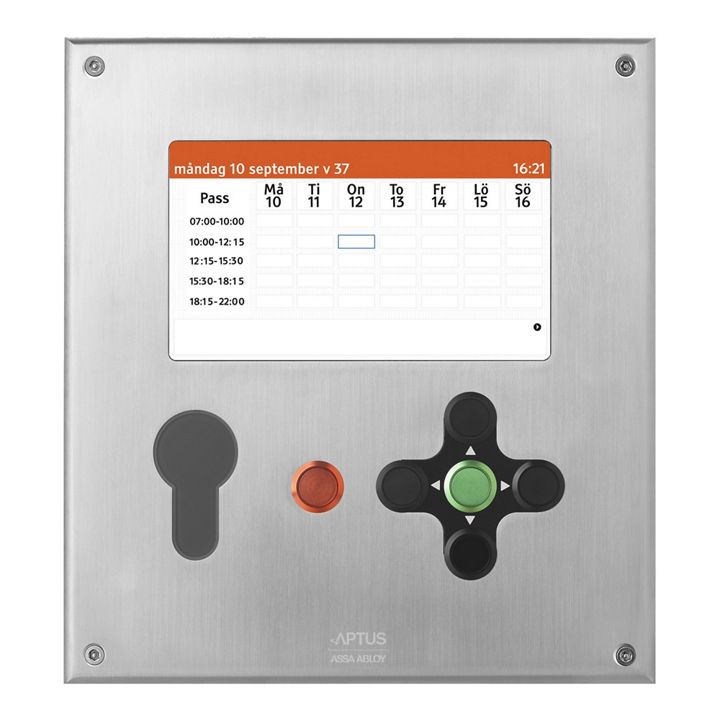

Recessed reservation board and reader that are easy to use and able to take punishment. The board is manufactured in stainless steel and the display is protected by security glass.
ELECTRICAL DATA | |||
Power supply V DC | 12-24, supplied by control unit | ||
Consumption, Watts | Min 2.2 max 9.6 at 24 V | ||
Amp: | Min 0.09 max 0.4 at 24 V | ||
ENVIRONMENT | |||
Temperature ˚C: | 0 to +40 | ||
Humidity, %: | 10 to 90 | ||
CAPABILITIES | |||
Item grouping | Yes | ||
Random allocation | Yes | ||
Automatic cancellation | Yes | ||
Limit number of bookings | Yes | ||
"Punch ticket function" | Yes | ||
Booking via internet | Yes | ||
Booking via communication board | Yes | ||
Booking via mobile phone | Yes | ||
Booking via administration PC | Yes | ||
Generate statistics | Yes | ||
Export files to Excel or XML | Yes | ||
Remote upgrade via Styra 3000 | Yes | ||
Language support, two languages, via Styra 3000 | Yes | ||
CARD DATA | |||
-EM4102 / EM4200 | |||
Connection to control unit | |||
500XX, 600XX, MC1 | No | ||
700XX Version R2 or later | Yes | ||
Styra 3000 Version C0 or later | Yes | ||
Multiaccess Version 7.3 or later | Yes | ||
DIMENSIONS, mm | |||
Height | 308 | ||
Width | 280 | ||
Depth | 50 | ||
Recess height | 233 | ||
Recess width | 237 | ||
Recess depth | 43 | ||
Surface mounting | 8 | ||
Net weight in kg | 2.3 | ||
Display | 8 inch in 16:9 landscape format | ||
Installation height (central point of cable inlet) | 1347,5 |
