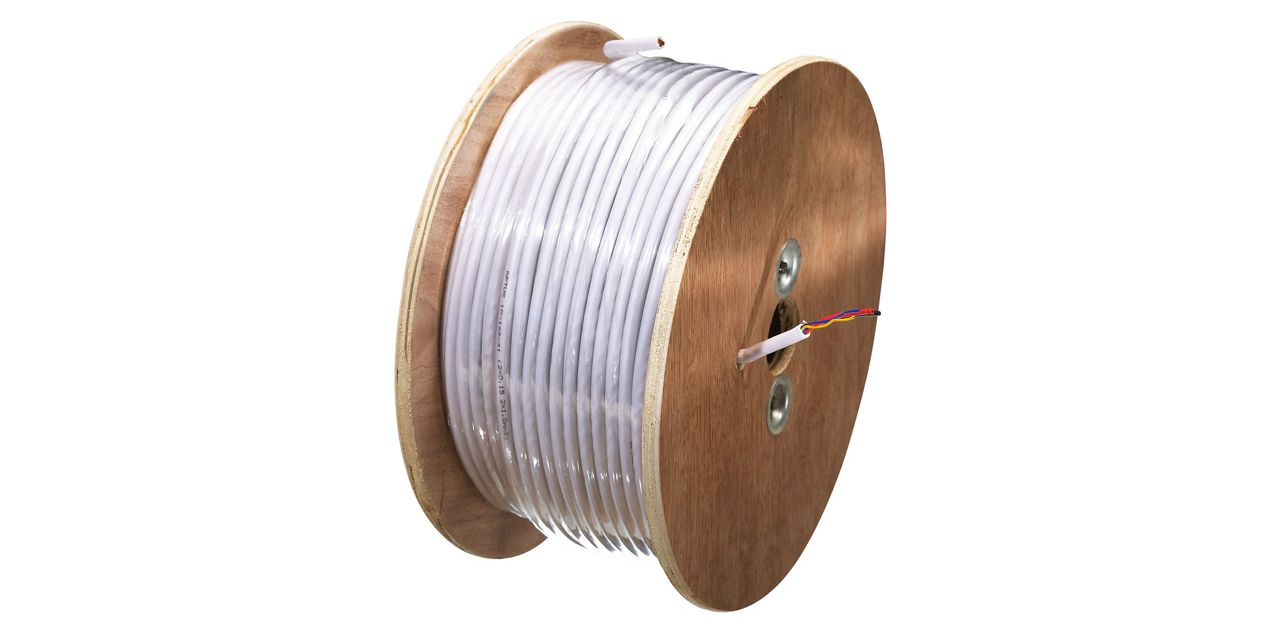

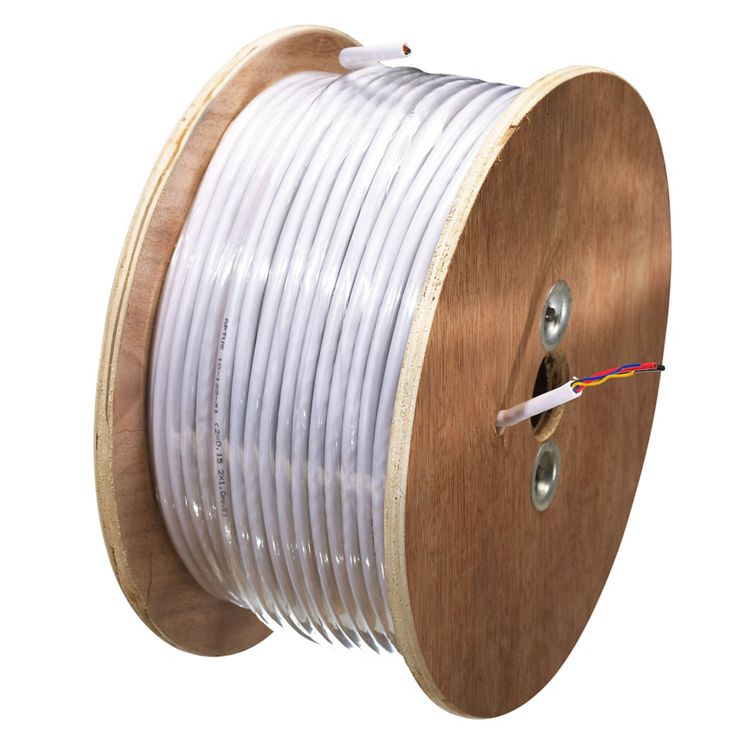

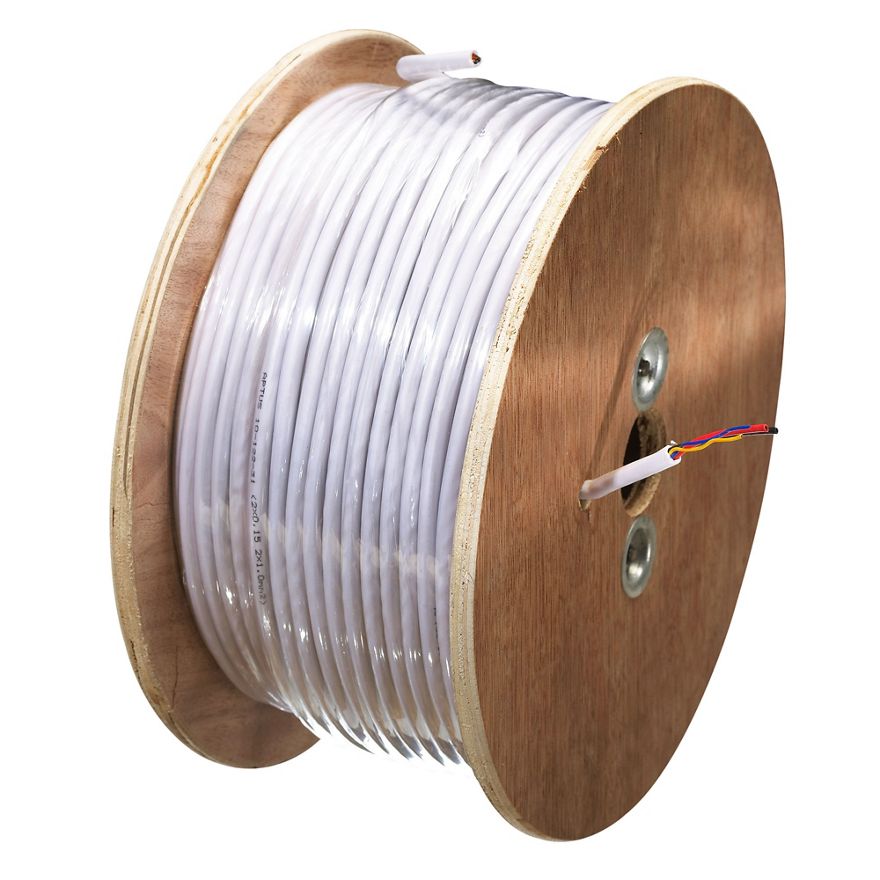

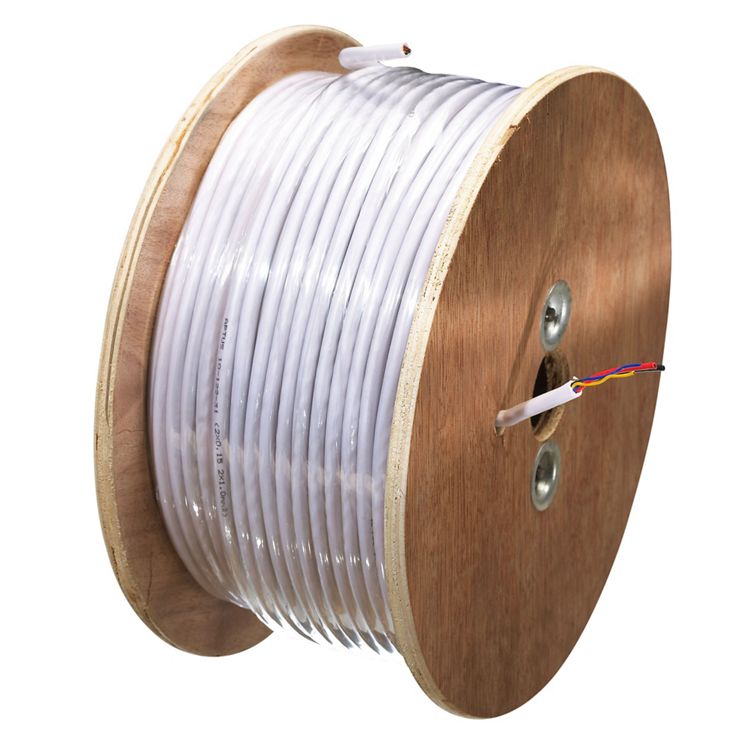

Twisted pair cable for Aptus485 bus and power supply and extra pair of data cables.
Product data | |
Nominal voltage V: | 125 |
Minimum bend radius mm: | 72 |
Conductor material: | Extra multifaceted |
Configuration: | 2x1 + 2x0,15 |
Color marking: | Red/Black + Yellow/Blue + Green/Orange |
Shielding pairs: | Data pairs shielded with al. foil. Should not be connected. |
Fire classification according to the CPR: | Dca,s1,d1,a1 |
DOP-nummer (Declaratation of performance) | BK013850101 |
Environment | |
Temperature ˚C: | -20 to +70 |
Humidity %: | 10 to 100 |
Dimensiones | |
Length: | 100m / 500m |
Diameter: | 7,2mm |
Net weight: | 65 kg/km |
