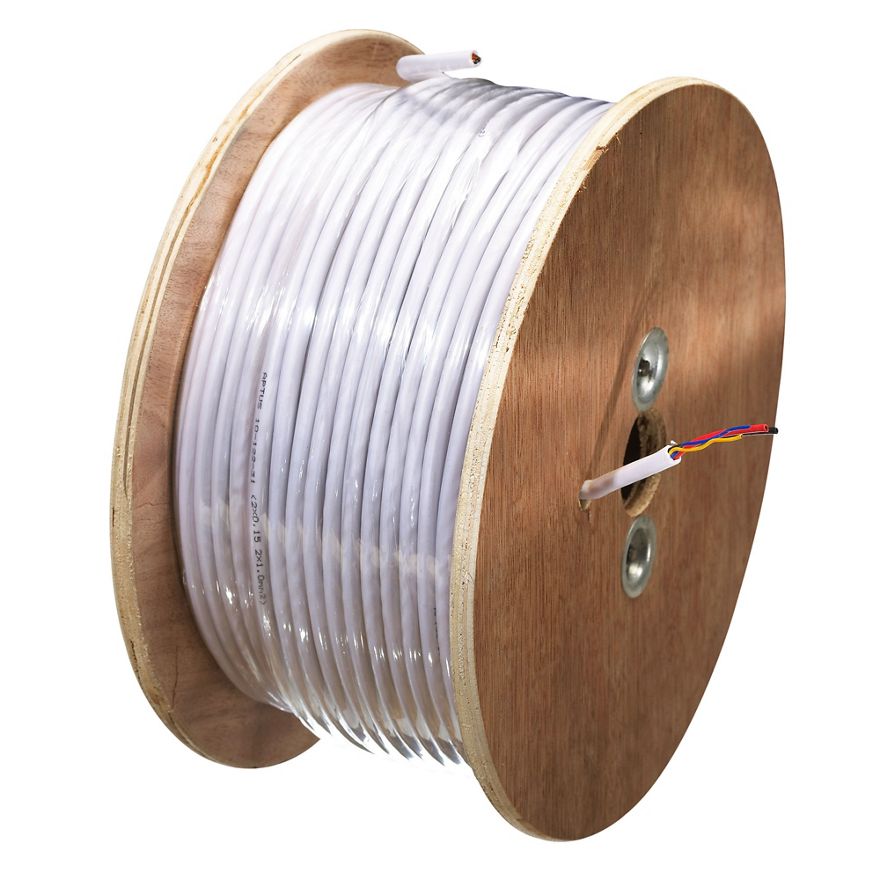

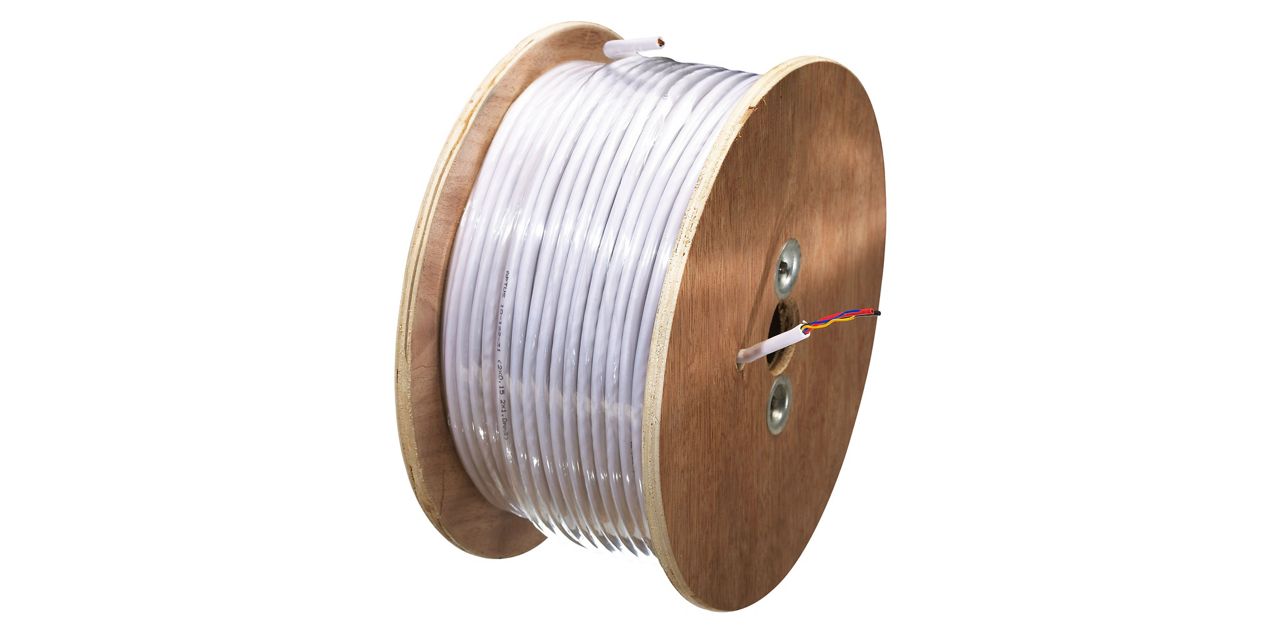

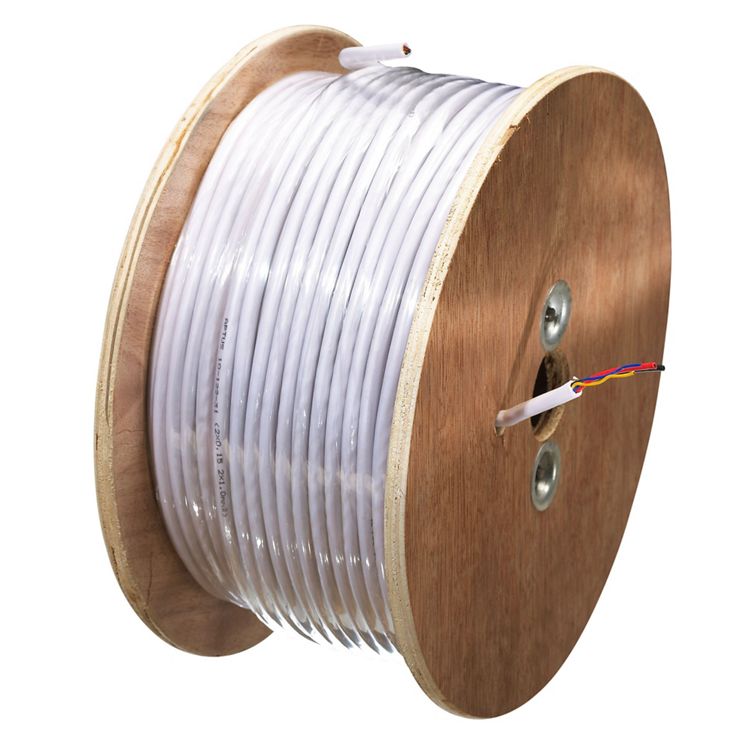

Aptuskabel 1 CPR
Twisted pair cable for Aptus485 bus and power supply and extra pair of data cables.
Twisted pair cable for Aptus485 bus and power supply and extra pair of data cables.
FEATURES AND ADVANTAGES
- One thicker pair for power supply, 1.0 mm.
- Two pairs for data, 0.15 mm.
- Simplified installation with clear color markings: Red/Black = +/-; Yellow/
- Blue=A/B, Green/Orange.
- Recommended for installation of Ringa, where the extra pair can be used for audio.
- Halogen-free cable.
- Extra multi-stranded.
- The cable is intended for indoor installation.
Product dataNominal voltage V: 125 Minimum bend radius mm: 60 Conductor material: Extra multifaceted Configuration: 2x1 + 2x0,15 Color marking: Red/Black + Yellow/Blue + Green/Orange Shielding pairs: Data pairs shielded with al. foil. Should not be connected. Fire classification according to the CPR: Dca,s1,d1,a1 DOP-nummer (Declaratation of performance): BK013850101
EnvironmentTemperature ˚C: -20 to +70 Humidity%: 10 to 100
Mått i mmLength: 100m / 500m Diameter: 6,0mm Net weight: 4,8
