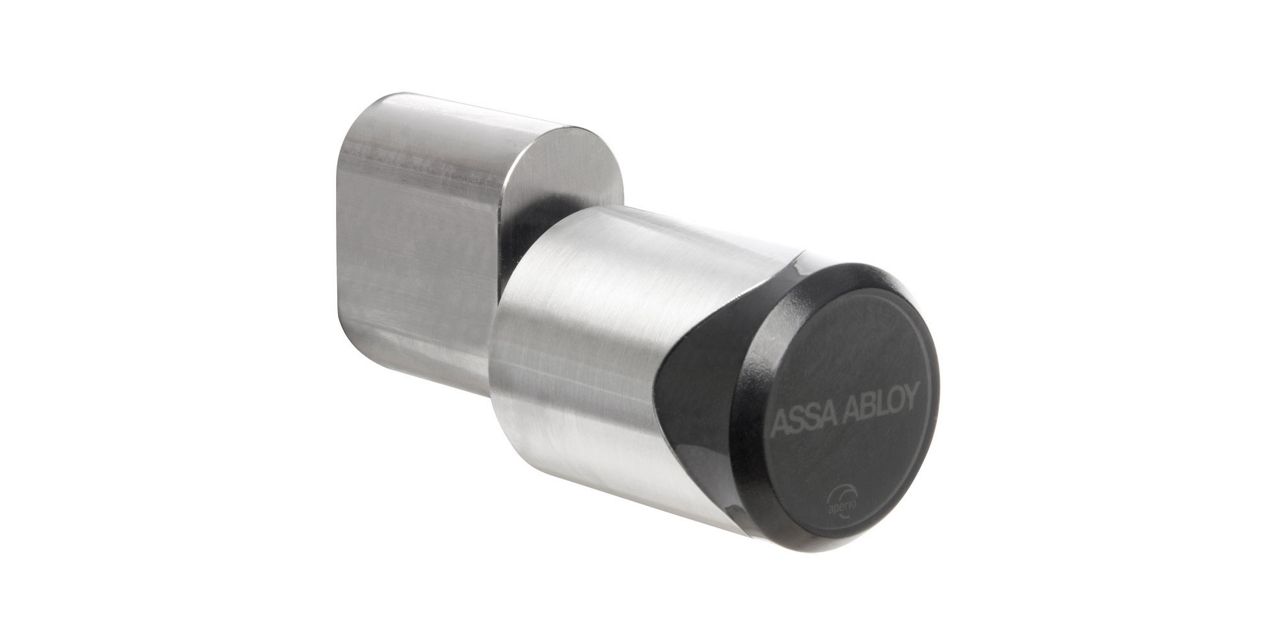

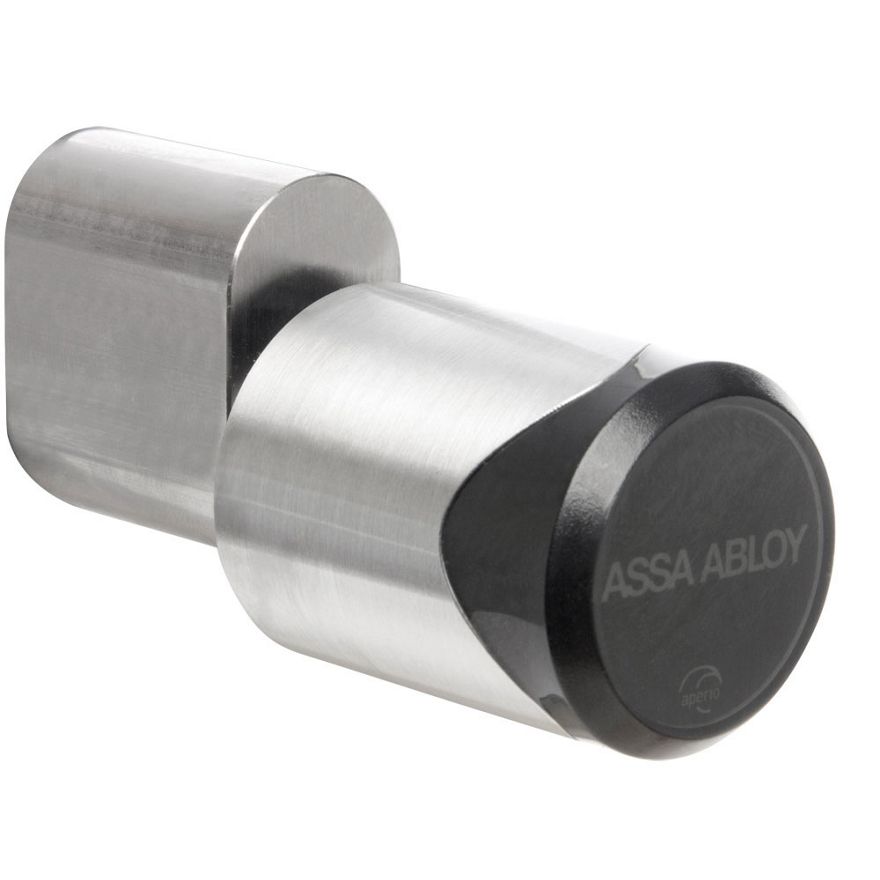

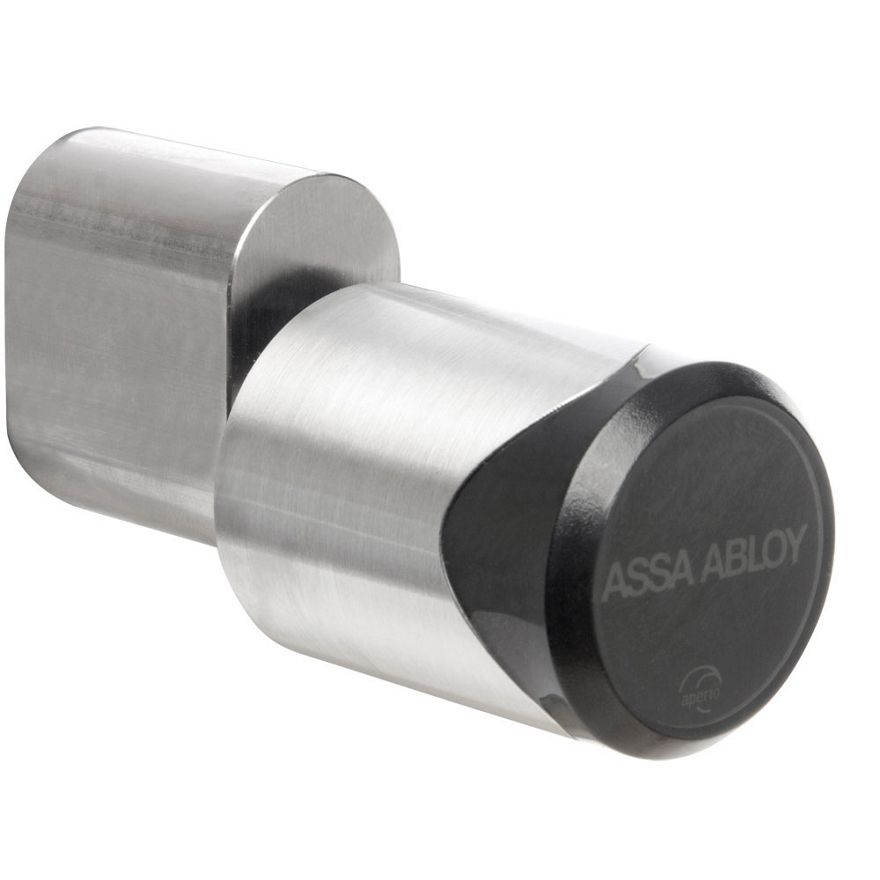

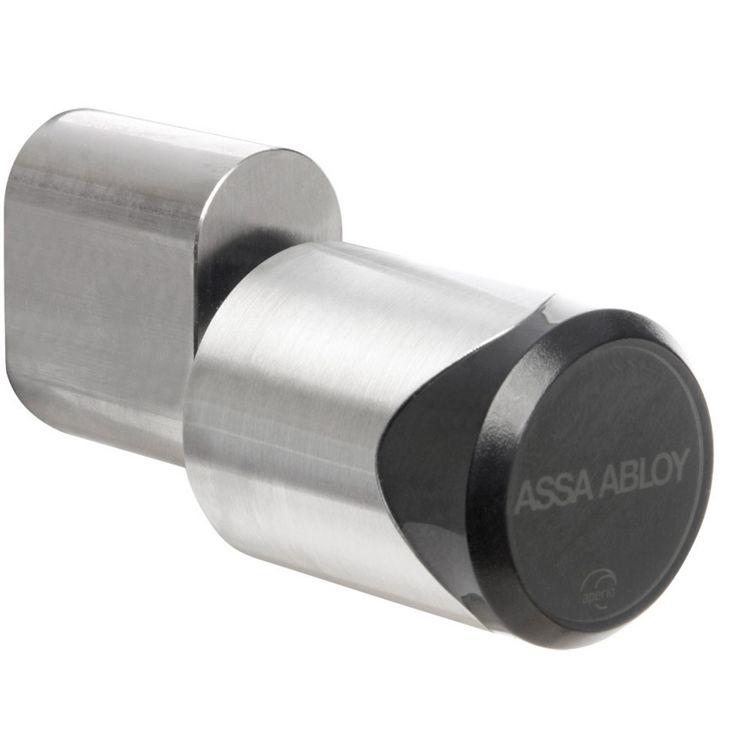

C100 S
Door unit for radio communication with lock.
Door unit for radio communication with lock.
Features and advantages
- Wireless connection to the lock: Yale Doorman för Aptus.
- Up to eight locks per Koppla 0020.
- Connect your lock to the system via Koppla 0020.
- Manages encrypted radio traffic with radio module installed in the lock.
- Koppla 0010 can be paired with lock via Multiaccess or directly in Koppla 0020 using a push button.
- Use cable, Aptuskabel 1, from control unit to door unit.
- Tamper switch, logged to Multiaccess Styra.
Technical dataApprovals (CERTIFICATION=) CE Battery 1 x Lithium CR2 Battery life > 40 000 cycles (for max. 3 years) Radio standard IEEE 802.15.4 (2.4 GHz) Encryption (radio communikation) AES 128 bits Distance between the Reader
and Koppla 00205 m or 25 m depending on the hub
type and building environmentsClass of protection IP 55 Operating temperature range 0–50 °C Status LED (red/green/orange) RFID technology MIFARE™ classic; MIFARE™ DESFire™ EM410x RFID reading UID / Sektor / Block / Application / Scanning range < 4 cm Knob versions (VERSION=) Fix or
demountable knob versions with or without RFID-ReaderKnob dimensions 43 x 33 mm (L x Ø) Knob surface Stainless steel Cylinder finish (FINISH=) Brass cylinder with standard finish stainless steel (RFL) Fixing screw (SCREW LENGTH=) 60 or 85 mm
