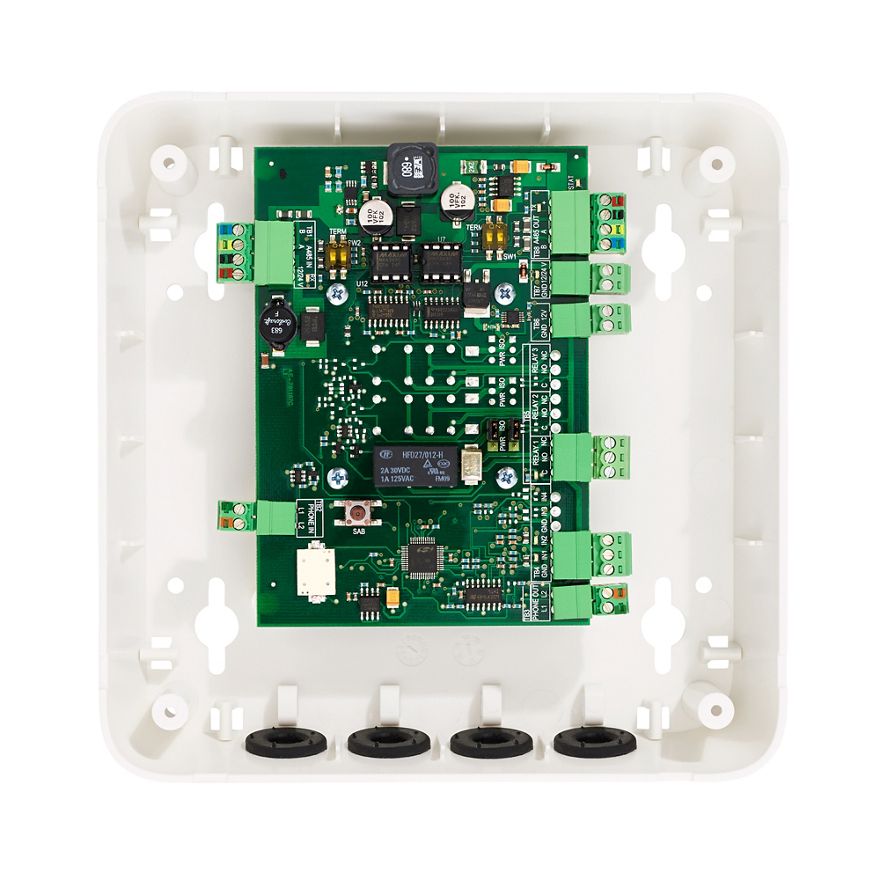

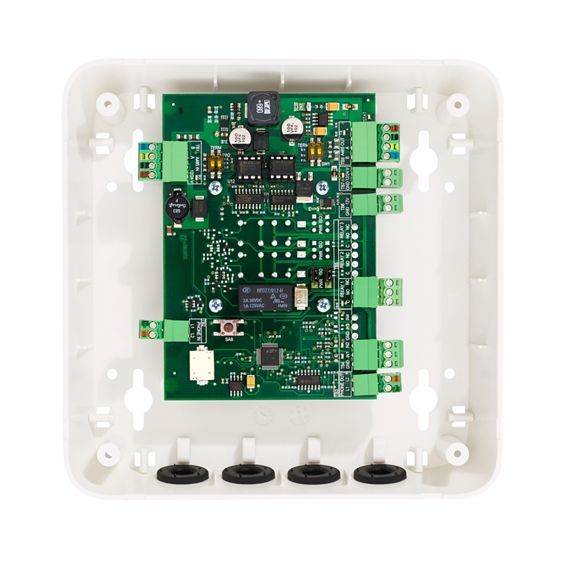

Apartment control unit for access control, energy metering and alarms.
ELECTRICAL DATA | ||||||||||
Power supply V DC | 24/12 | |||||||||
Consumption Watts | min 0,48 max 3,6 at 24V | |||||||||
Amp | min 0,02 max 0,15 for 24V | |||||||||
ENVIRONMENT | ||||||||||
Temperature ˚C | -0 to +40 | |||||||||
Humidity % | 10 to 90 | |||||||||
PRODUCT DATA | ||||||||||
Number of A485 ports | 2 (unit side, door side) | |||||||||
A485 repeater, unit side -> door side | Yes | |||||||||
Fused output voltage A485-port, on door side | 1,0 A (12V) | |||||||||
Automatic fuse reset | Yes | |||||||||
LEDs for indication of communication status | Yes | |||||||||
LEDs for indication of fuse status | Yes | |||||||||
Blown fuses logged to Multiaccess | Yes | |||||||||
OUTPUTS | ||||||||||
Number of outputs | 1 | |||||||||
Contact data relay | 28V, 1A | |||||||||
Relay function | Switching | |||||||||
Fuse | 1A PTC per relay | |||||||||
PWR/ISO | Adjustable for each relay | |||||||||
LED indicates when output is active | Yes | |||||||||
Sequential startup | Yes | |||||||||
INPUTS | ||||||||||
Number of inputs | 2 | |||||||||
Detection of dry contact/breaker | Yes | |||||||||
Supports connection of double balanced sensors | Yes | |||||||||
Configuration of threshold values from Multiaccess | Yes | |||||||||
Impulse meter function as per S0 | Yes | |||||||||
LEDs for indication of input status | Yes | |||||||||
EXTERNAL POWER SUPPLY | ||||||||||
12 V | V Yes, 1A fuse shared with A485 out | |||||||||
24V | Yes, fused 2A | |||||||||
COMMUNICATION | ||||||||||
Communication to Styra 3000 | RS 485 (A485) | |||||||||
Communication with reader, motor lock etc. | RS 485 (A485) | |||||||||
DIMENSIONS, mm | ||||||||||
Height | 163 | |||||||||
Width | 163 | |||||||||
Depth | 40 | |||||||||
Net weight in kg | 0,38 |
