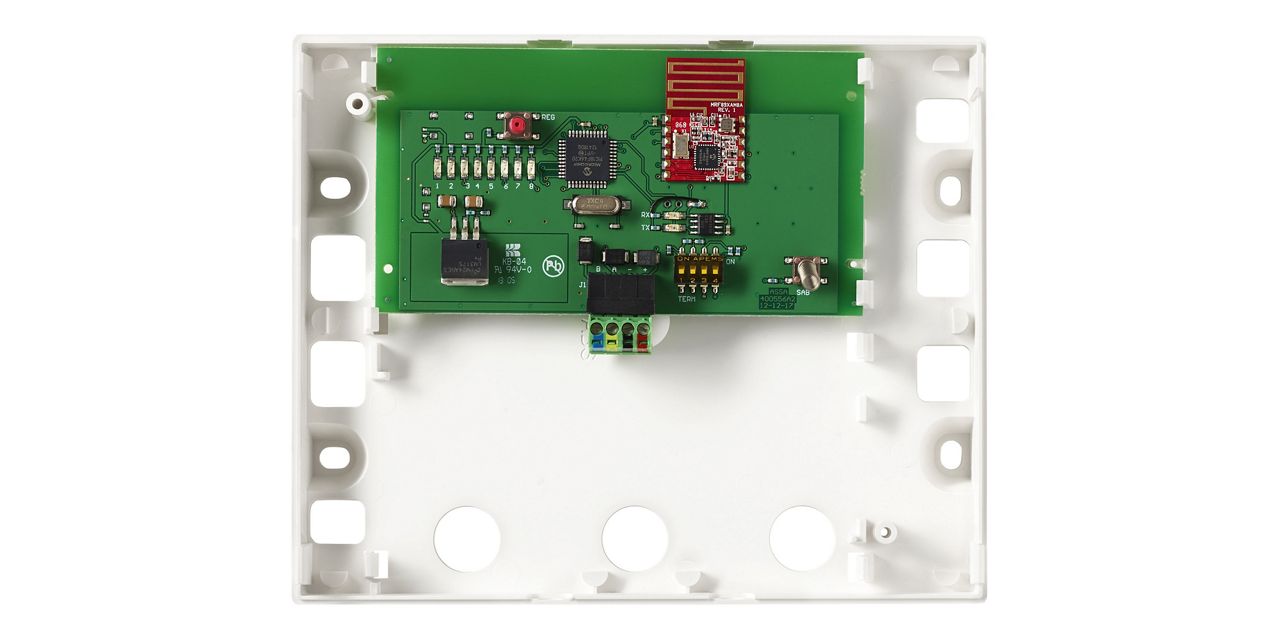

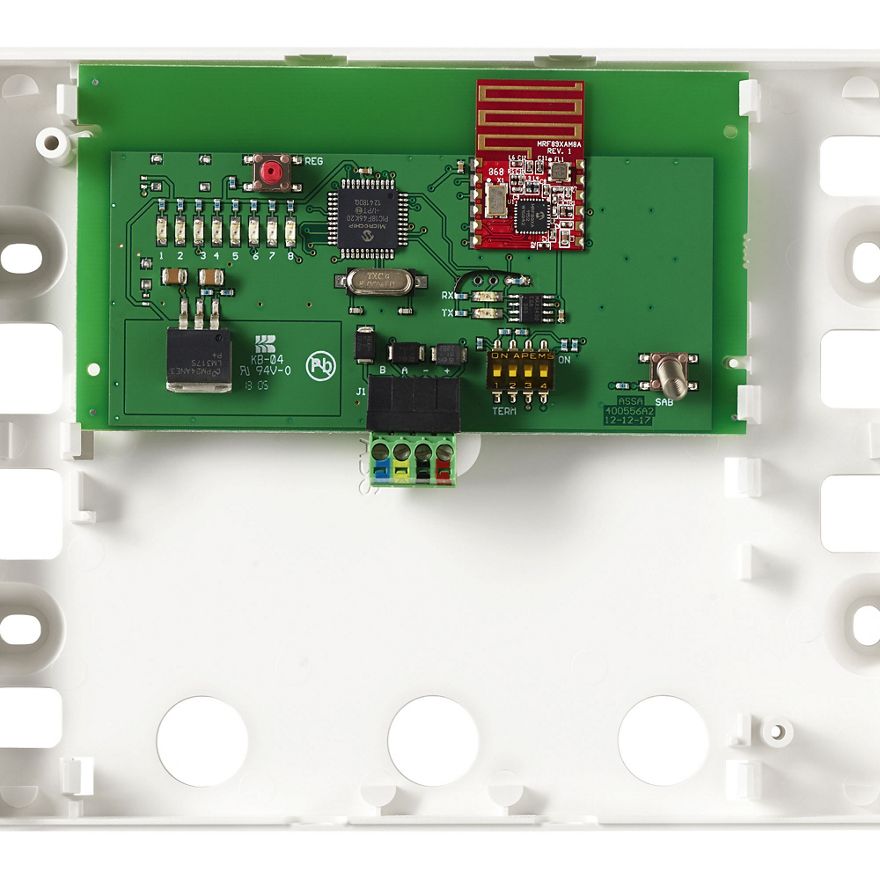

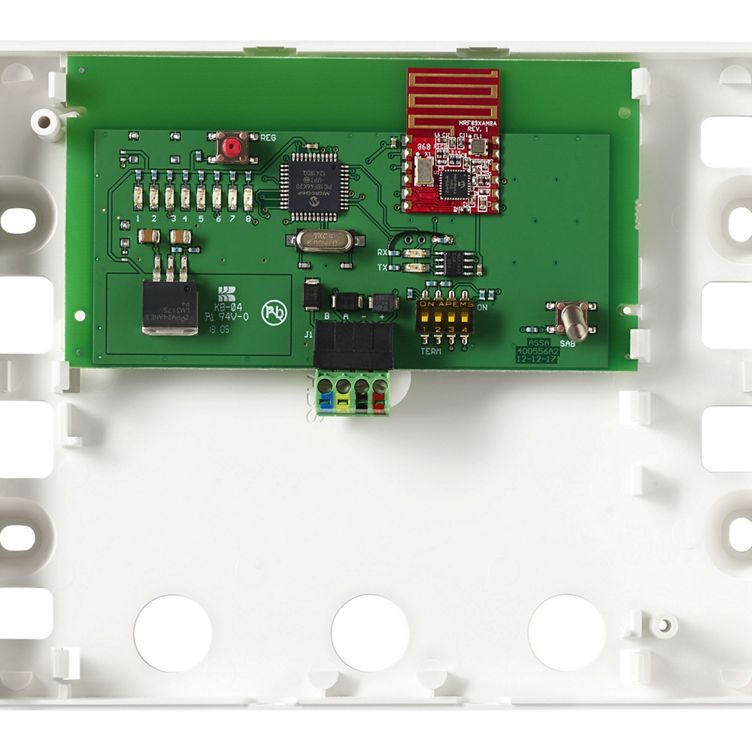

Koppla 0010
Door unit for radio communication with lock.
Door unit for radio communication with lock.
Features and advantages
- Wireless connection to the lock: Yale Doorman för Aptus.
- Up to eight locks per Koppla 0010.
- Connect your lock to the system via Koppla 0010.
- Manages encrypted radio traffic with radio module installed in the lock.
- Koppla 0010 can be paired with lock via Multiaccess or directly in Koppla 0010 using a push button.
- Use cable, Aptuskabel 1, from control unit to door unit.
- Tamper switch, logged to Multiaccess Styra.
ELECTRICAL DATAPower supply V DC 24/12 Consumption Watts min 0,6 max 0,72 at 24V Amp min 0,025 max 0,030 at 24V
ENVIRONMENTTemperature ˚C -30 to +60 Humidity % Rh 10 to 100
PRODUCT DATANumber of A485 ports 1 (to control unit) LEDs for indication of communication status Yes LEDs for indication of position of paired lock Yes, 8 Number of Koppla 0010 per Styra 3000 Any number, up to total number of resources:
Styra 3000 handles up to 255 resources,
Koppla 0010 requires 10 resources.Number of locks per Styra 3000 32 Number of locks per Koppla 0010 8
RADIOFrequency band MHz 868 Number of channels 4 Reach, m Free air: 25, through wall / door: 15 Encryption AES 128-bit EAX mode
COMMUNICATIONCommunication with Styra 3000 RS 485 (A485) Communication with Yale Doorman för Aptus Radio
DIMENSIONS, mmHeight 128 Width 156 Depth 41 Net weight in kg 0,19
