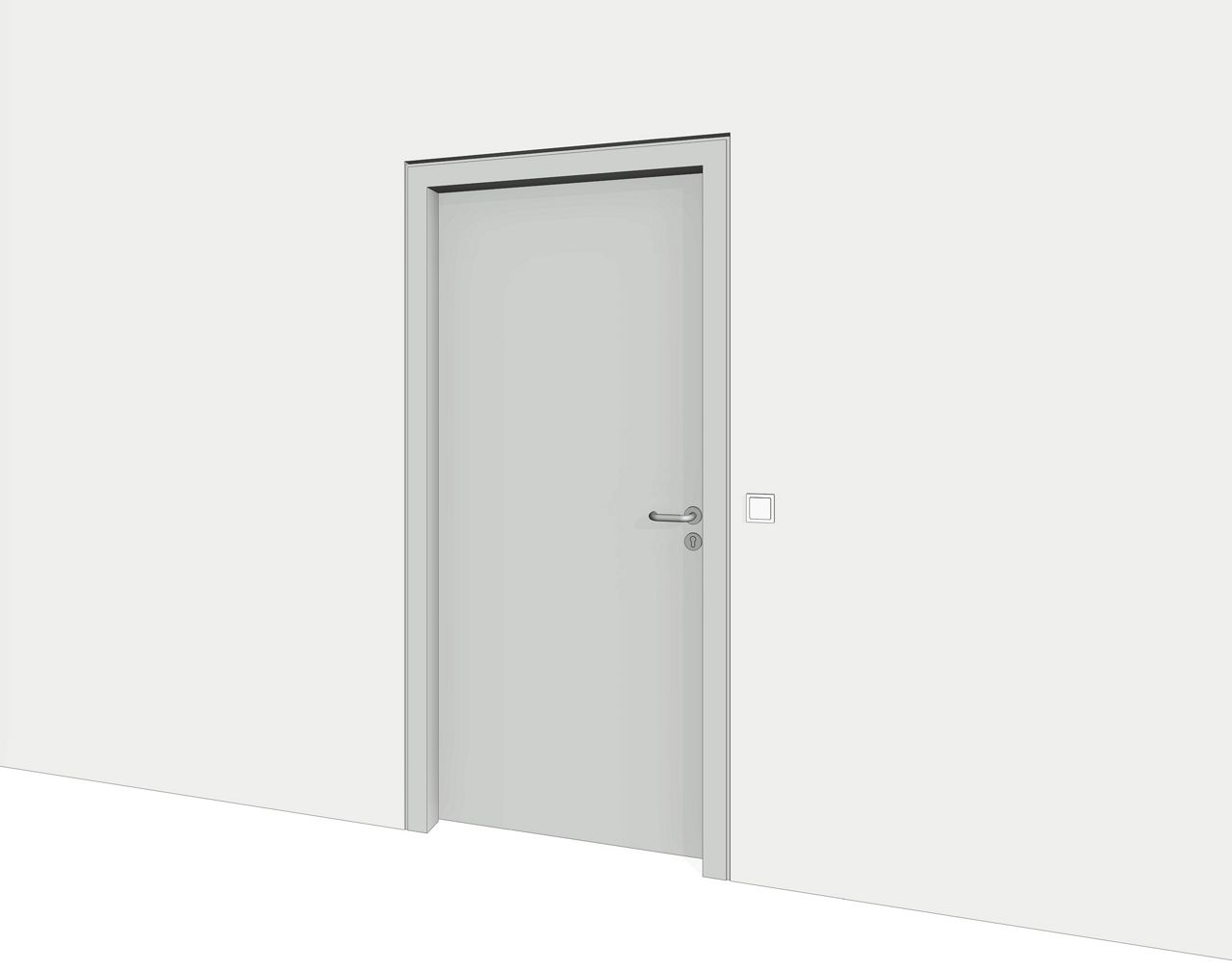

Steel fireproof door EI60 / Access control

Solution family: Interior Door Solutions/Exterior Door Solutions

Solution group: Single-Steel-Access control

ASSA ABLOY Poland solution for interior or exterior fireproof doors, comprising of a one point mechanical lock and electric strike above, by ASSA ABLOY Mercor Doors.

Solution ensures both side access control. The electric strike is set as fail-unlocked, which opens when voltage is unapplied. Suitable for spaces with fire resistance requirements where exit control is required.

Typical application markets

Education, Energy, Utilities, Enterprise, Manufacturing, Office, Finance, Banking, Entertainment, Government, Public sector, Healthcare, Hospitality, Hotel, Residential, Retail, Travel, Transportation

Specification

  • ALPE Sp 60-1, door leaf made of two pressed galvanised steel sheets 1,25mm thick. Filled with mineral wool glued to the sheets with polyurethane adhesive. Door with 3-sided thin rebate. Stainless steel hinges with 3D regulation. Mechanical durability – class C5 according to PN-EN 16034:2014. Mechanical strength – class 4 according to PN-EN 1192:2001. Welded steel block frame, made of galvanised sheet 1,5mm thick.

    • Door closer DC500/DC700, Cam-Motion®, by ASSA ABLOY Standard: EN 1154, EN 15804
    • Mortice lock case N1050 One System (mechanical), by ASSA ABLOY, Standard: EN 12209
    • Electric strike 138F (fail-unlocked), FaFix®, by EffEff
    • Mortise latch bolt lock 807-10, by EffEff
    • Euro profile cylinder SK6 Radius, by IKON, Standard: EN 1303
    • Door handles with rosettes set, by ASSA ABLOY, Standard: EN 1906
    • Card reader SIGNO20, by HID, Standard: CE
