Steel Security Door, RC3, Rw(dB)=41 / Access control

Solution family: Interior Door Solutions/Exterior Door Solutions

Solution group: Double-Steel-Access Control

ASSA ABLOY Poland high security solution for interior or exterior double-leaf doors, comprising of a electromechanical multi-point lock which deadlocks automatically when the door closes (there is no need to lock it with a key), by Donimet.

Doors with one-sided access control. The locks can be electrically controlled by access control system or by a remote control system such as timer, keypad or push button. Automatic locking ensures facility protection with medium risk of burglary.

Typical application markets

Enterprise, Energy, Utilities, Finance, Banking, Government, Public sector, Hotel, Retail, Military facilities, Museums, Prisons, Travel, Transportation

Specification

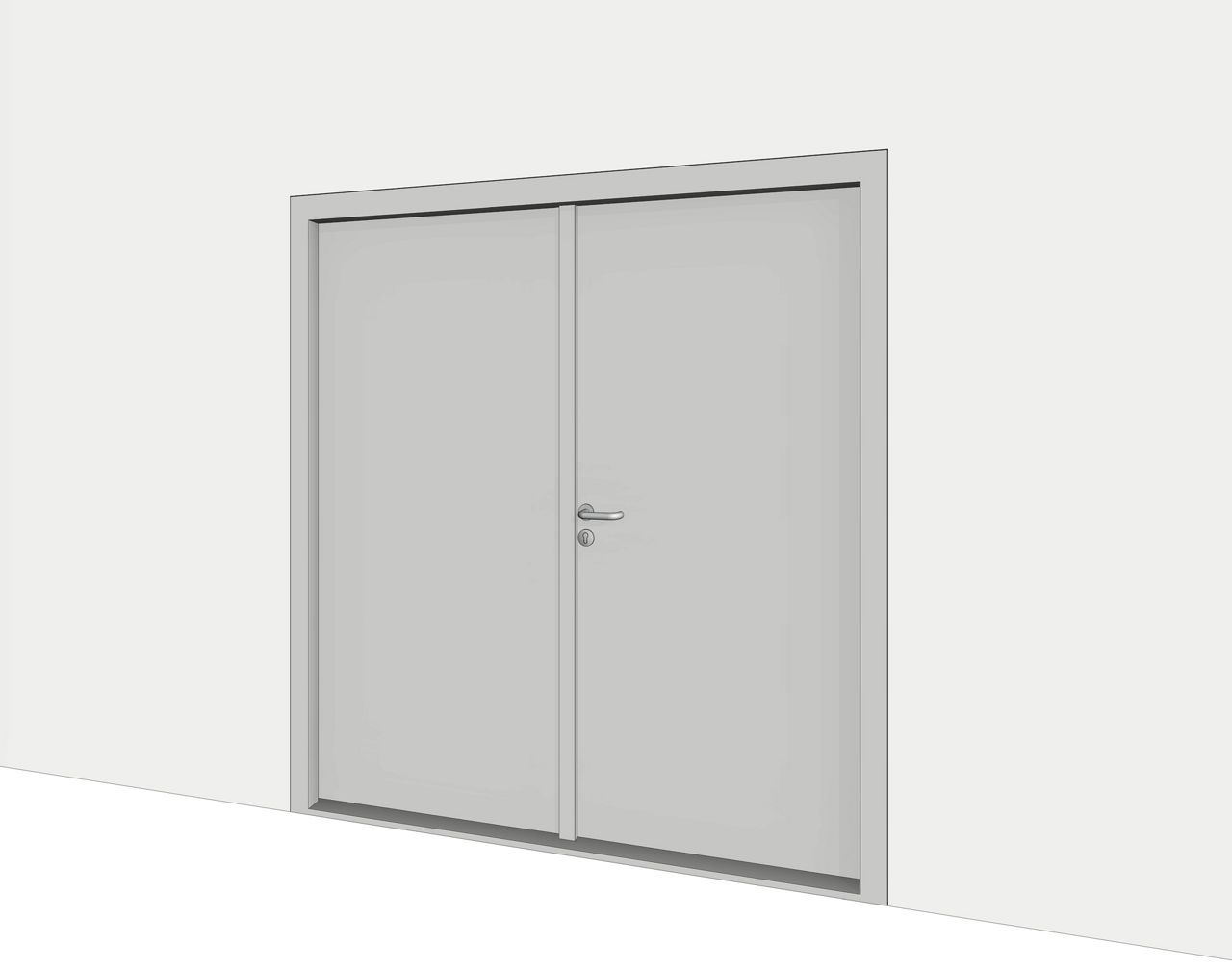

  • DL 1.3/2 DRAGON, door leaf made of two pressed zinc-plated steel sheets 1,0mm thick. Reinforced with "C" profiles and filled with mineral wool. Door with 4-sided thick rebate with gasket. Operating forces – class 3 according to EN 12217:2005. Mechanical strength – class 4 according to EN 1192:2001. Thermal transmittance Uw=1,2W/m²K according to EN ISO 10077-1:2007. Burglary resistance – class RC3 according to EN 1627:2012. Acoustic rating - Rw=41dB according to PN-EN ISO 717-1:2013-08. Hinges with ball bearings, main lock: multipoint class 4 according to EN 12209, three anti-burglary bolts, two manual flush bolts on the passive leaf. Welded steel C-shaped frame made of zinc-plated steel sheet 3mm thick with EPDM gasket. 20mm fixed threshold. Optional: low threshold or drop-down seal.

    • Door closer DC500/DC700, Cam-Motion®, by ASSA ABLOY Standard: EN 1154, EN 15804
    • Electromechanical mortice lock case EL566 (multipoint), by ABLOY, Standard: CE, EN 14846, EN 179, EN 1125
    • Automatic flush bolt 2396, by ASSA ABLOY
    • Euro profile cylinder Protec2 (disc technology), by ABLOY, Standard: EN 1303
    • Door handles with round rosettes set Presto 3-20/042 (U-shape), by ABLOY, Standard: EN 1906
    • Defender CH101, by ABLOY
    • Card reader SIGNO20, by HID, Standard: CE
