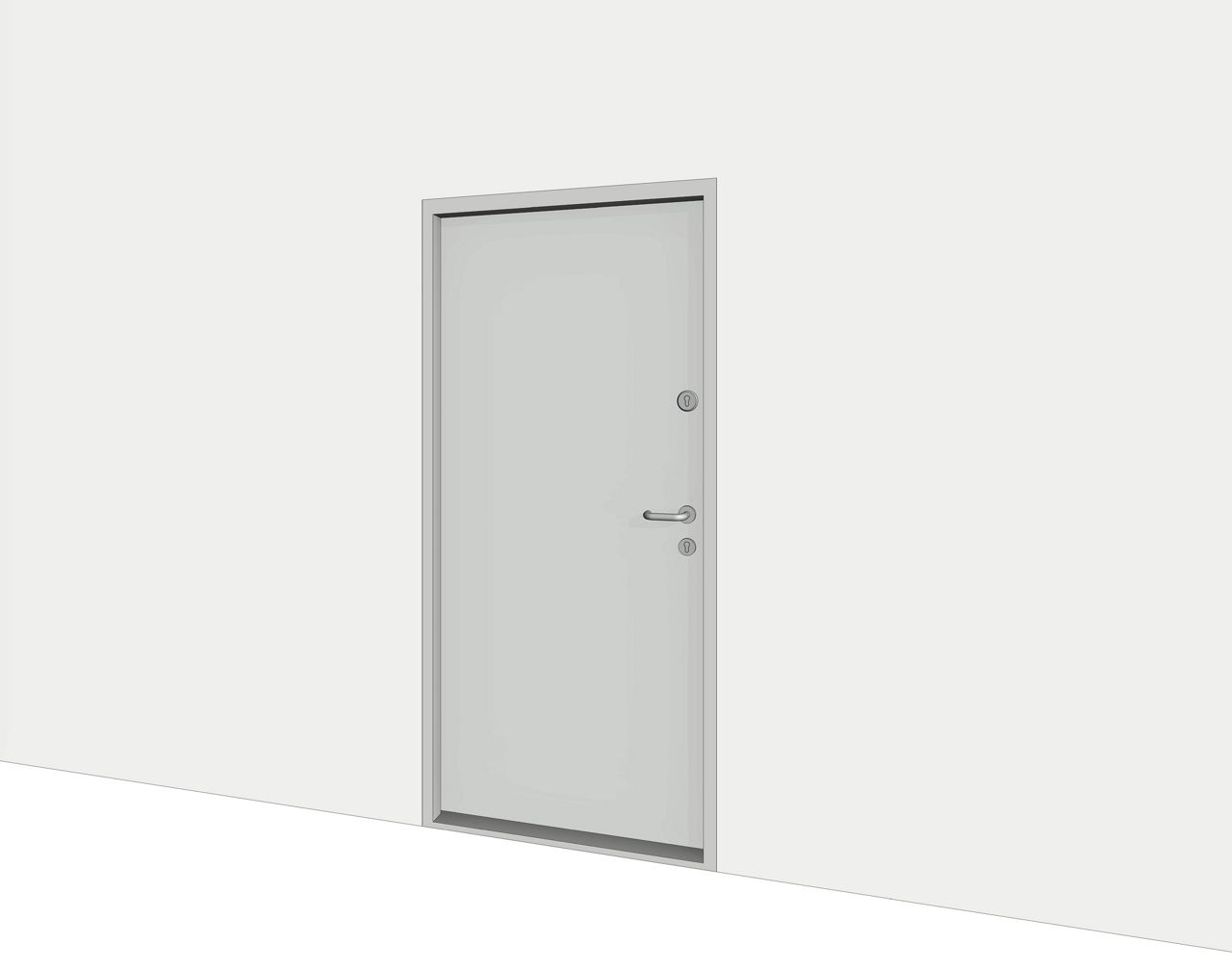

Steel Security Door, RC3, Rw(dB)= 46

Solution family: Interior Door Solutions/Exterior Door Solutions

Solution group: Single-Steel

ASSA ABLOY Poland high security solution for interior or exterior doors, comprising of a multi-point mechanical lock which deadlocks automatically when the door closes, by Donimet.

Automatic locking ensures facility protection with medium risk of burglary.

Typical application markets

Enterprise, Energy, Utilities, Finance, Banking, Government, Public sector, Hotel, Retail, Military facilities, Museums, Prisons, Travel, Transportation

Specification

  • DL1.3 DRAGON, door leaf made of two pressed zinc-plated steel sheets 1,0mm thick. Reinforced with "C" profiles and filled with mineral wool. Door with 4-sided thick rebate with gasket. Operating forces – class 3 according to EN 12217:2005. Mechanical strength – class 4 according to EN 1192:2001. Thermal transmittance Uw=1,3W/m²K according to EN ISO 10077-1:2007. Burglary resistance – class RC3 according to EN 1627:2012. Acoustic rating - Rw=46dB according to PN-EN ISO 717-1:2013-08. Hinges with ball bearings, main lock: multipoint class 4 according to EN 12209, three anti-burglary bolts. Welded steel corner frame made of zinc-plated steel sheet 3mm thick with EPDM gasket. 20mm fixed threshold. Optional: low threshold or drop-down seal.

    • Door closer DC500/DC700, Cam-Motion®, by ASSA ABLOY Standard: EN 1154, EN 15804
    • Mortice lock case EL166 (mechanical multipoint), by Abloy, Standard: EN 179, EN 1125
    • Euro profile cylinder SK6 Radius, by IKON, Standard: EN 1303
    • Door handles with round rosettes set TL4106SS (U-shape), by ASSA ABLOY, Standard: EN 1906
    • Defender MT22(Bizon), by LOB ASSA ABLOY, Standard: EN 1906
