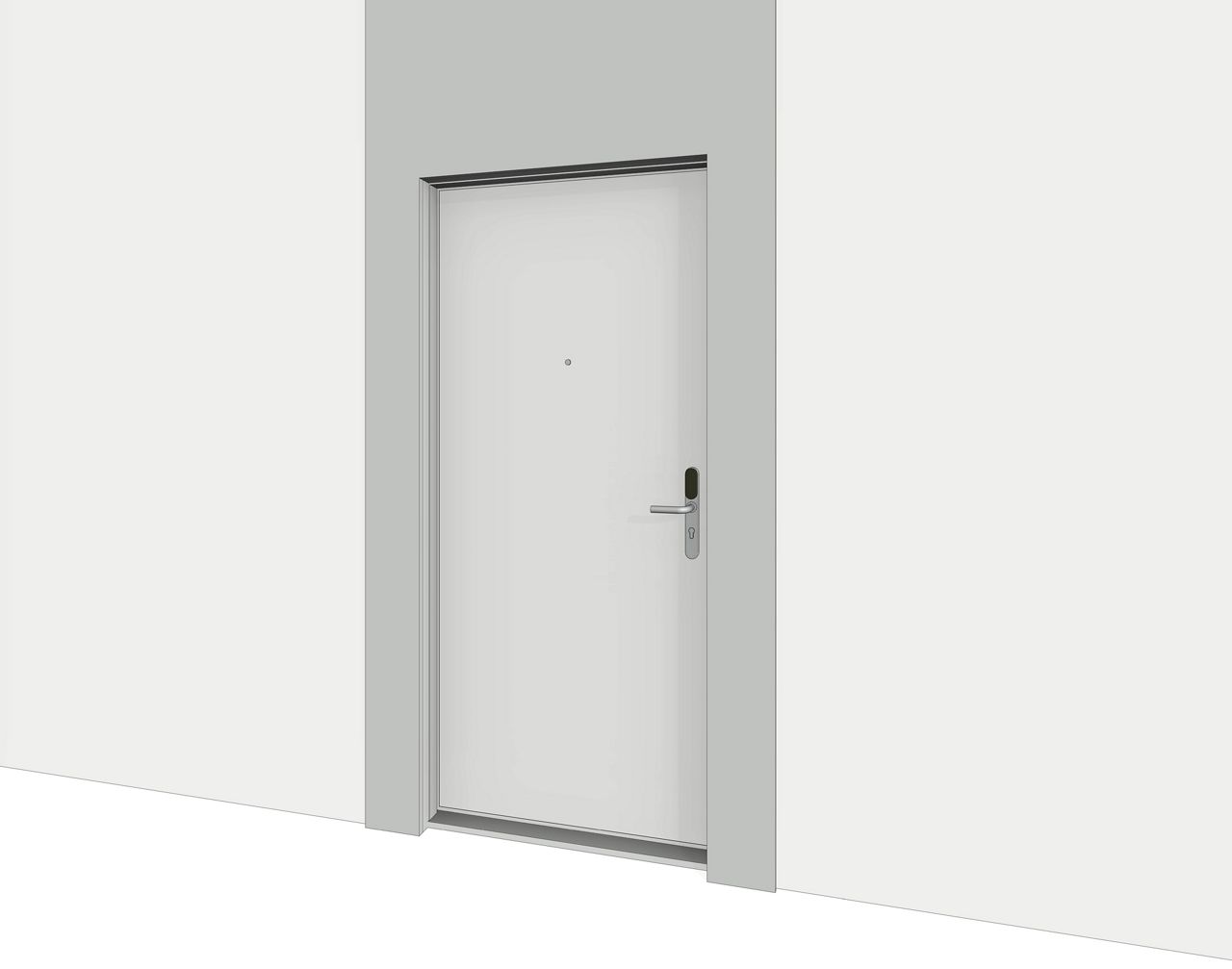

Entrance door to hotel room, NFR-EI30 / Wireless access control

Solution family: Interior Door Solutions/Exterior Door Solutions

Solution group: Single-Steel-Access Control

ASSA ABLOY Poland solution for interior or exterior doors, comprising of a mechanical lock which deadlocks automatically when the door closes, wireless electronic lock solution and replaceable cladding panels, by ASSA ABLOY Mercor Doors.

The lock/door is automatically deadlocked as soon as the door is shut. The electronic wireless solution can be controlled via card or keypad.

Typical application markets

Hotel, Hospitality

Specification

  • DL1.3 PP30 RAPTOR, leaf made of galvanized steel sheets 1,0mm or 0,75mm thick, four-side rebated. External cladding made of 6mm thick HDF/MDF panels. Door equipped with 4 hinges painted in RAL with 3-dimmension adjustment, includng 1 self-closing R-spring, three anti-burglary pins on the hinge side and a panoramic viewer. Operational forces - 2 class according to PN-EN 12217:2005. Mechanical strenght - 4 class according to PN-EN 1192:2001. Acoustic rating - Rw=42-47dB according to PN-EN ISO 717-1:2013-08.  Thermal transmittance - Ud = 1,3 W/m2K. Corner galvanized steel frame 1,5mm thick, equipped with fixed threshold 20 mm height.

    • Door closer DC500/DC700, Cam-Motion®, by ASSA ABLOY Standard: EN 1154, EN 15804
    • Mortice lock case EL160 (mechanical), by Abloy, Standard: EN 12209, EN 179, EN 1125
    • Wireless electronic lock i-max, by Tesa, Standard: CE
    • Euro profile cylinder SK6 Radius, by IKON, Standard: EN 1303
    • Door handles with rosette security sets, by ASSA ABLOY, Standard: EN 1906
