Steel non-rebated door evacuation door (EN 1125)

Solution family: Interior Door Solutions

Solution group: Single-Steel-Non rebated-Evacuation (EN 1125)

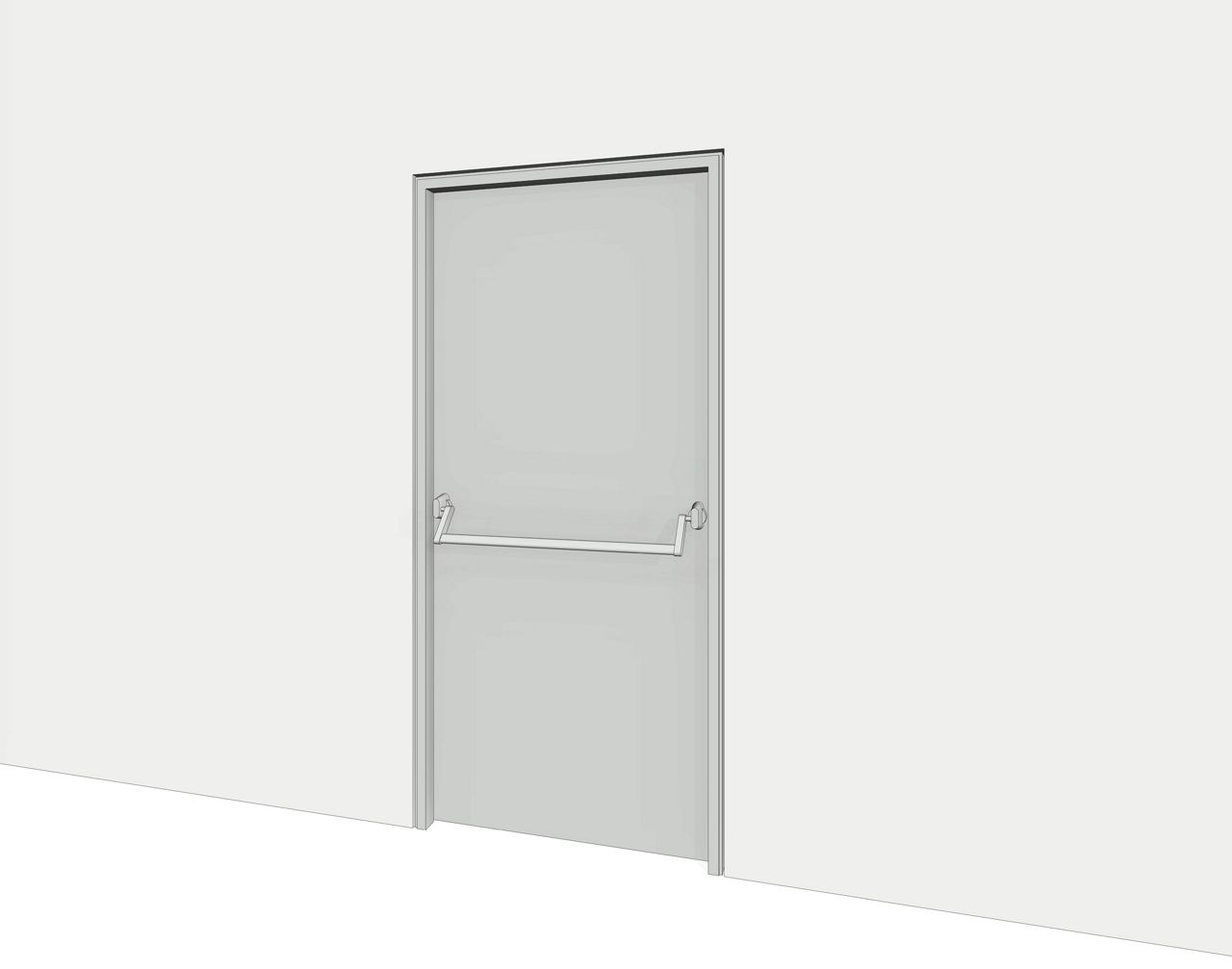

ASSA ABLOY Poland solution for interior non-rebated doors, comprising of a one point mechanical panic lock and a panic bar (typ A), by ASSA ABLOY Mercor Doors.

The panic lock with split spindle ensures evacuation despite locked deadbolt by pressing a panic bar. In non-rebated doors leaf and frame create on surface visible on the side of door opening.

Typical application markets

Enterprise, Office, Finance, Banking, Government, Public sector, Healthcare, Hospitality, Hotel, Retail, Travel, Transportation

Specification

ALPE PLUS Sp 60-1, door leaf made of two pressed galvanised steel sheets 1,25mm thick, reinforced with steel profile. Filled with mineral wool glued to the sheets with polyurethane adhesive. Non-rebated door. Stainless steel hinges with 3D regulation. Mechanical durability – class C5 according to PN-EN 16034:2014. Mechanical strength – class 4 according to PN-EN 1192:2001. Welded steel corner frame, made of galvanised sheet 1,8mm thick.

Door closer DC500/DC700, Cam-Motion^®, by ASSA ABLOY Standard: EN 1154, EN 15804
Panic mortice lock case N11xx One System (mechanical), by ASSA ABLOY, Standard: EN 12209, EN 179, EN 1125
Euro profile cylinder SK6 Radius, by IKON, Standard: EN 1303
Panic device N2000 One System, type A (crossbar), by ASSA ABLOY, Standard: EN 1125
Door handle with round rosette set H704 (U-shape), by ASSA ABLOY, Standard: EN 1906, EN 179
