Steel fireproof door EI120 / Access control

Solution family: Interior Door Solutions

Solution group: Double-Steel-Access Control

ASSA ABLOY Poland solution for interior fireproof double-leaf doors, comprising of a one point mechanical lock (opening by cylinder is possible) and electric strike, by ASSA ABLOY Mercor Doors.

Solution ensures one side access control. The electric strike is set as fail-locked, which opens when voltage is applied. Suitable for spaces with high fire resistance.

Typical application markets

Enterprise, Manufacturing, Energy, Utilities, Retail, Public sector, Military facilities

Specification

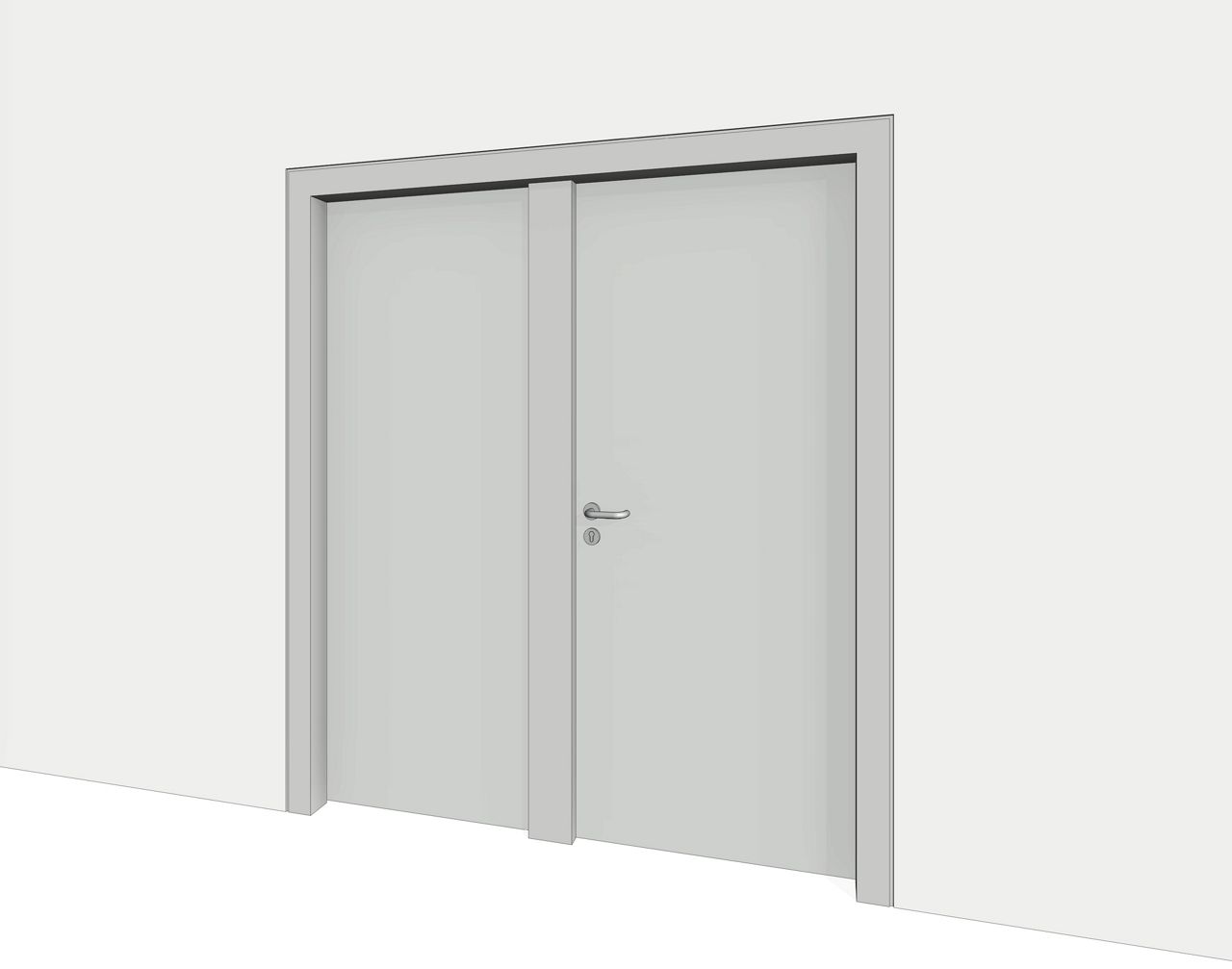

  • ALPE Sp 120-2, door leaf made of two pressed galvanised steel sheets 1,25mm thick. Filled with mineral wool glued to the sheets with polyurethane adhesive. Door with 3-sided thick rebate. Stainless steel hinges with 3D regulation. Mechanical durability – class C5 according to PN-EN 16034:2014. Mechanical strength – class 4 according to PN-EN 1192:2001. Welded steel corner frame, made of galvanised sheet 1,8mm thick.

    • Door closer DC500/DC700, Cam-Motion®, by ASSA ABLOY Standard: EN 1154, EN 15804
    • Mortice lockcase N1050 One System (mechanical), by ASSA ABLOY, Standard: EN 12209
    • Electric strike 118F (fail-locked), FaFix®, by EffEff, Standard: CE, EN 14846
    • Central flush bolt N4572 (semi-automatic), by Corni
    • Euro profile cylinder, by ASSA ABLOY, Standard: EN 1303
    • Door handles with rosettes set, by ASSA ABLOY, Standard: EN 1906
    • Card reader SIGNO20, by HID, Standard: CE
