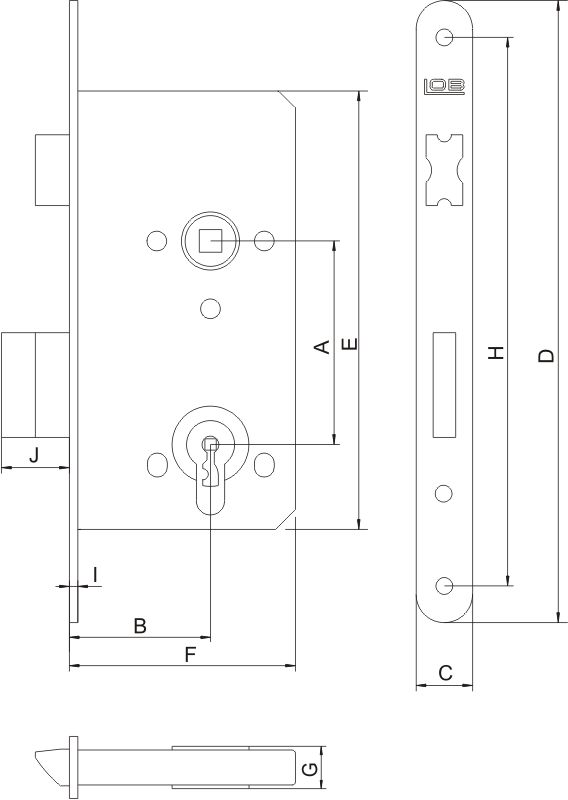

Product code | Dimensions (mm) | |||||||||
A | B | C | D | E | F | G | H | I | J | |
Z76B | 72 | 60 | 20 | 220 | 155 | 90 | 15 | 194 | 3 | 2x12 |
Z76Z | 72 | 60 | 20 | 220 | 155 | 90 | 15 | 194 | 3 | 2x12 |
Z76C | 72 | 60 | 20 | 220 | 155 | 90 | 15 | 194 | 3 | 12 |
Main features | |
Available colors | yellow zinc, other colors available on request |
Available types | cylinder (B), strike (Z), WC (C) |
Mounting side | adaptable |
