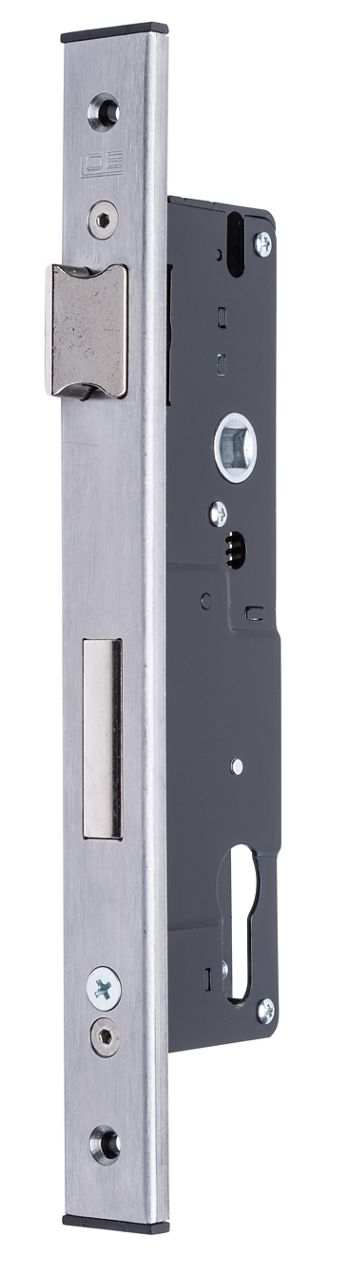

Main narrow lock

Type of strike plate

Product code

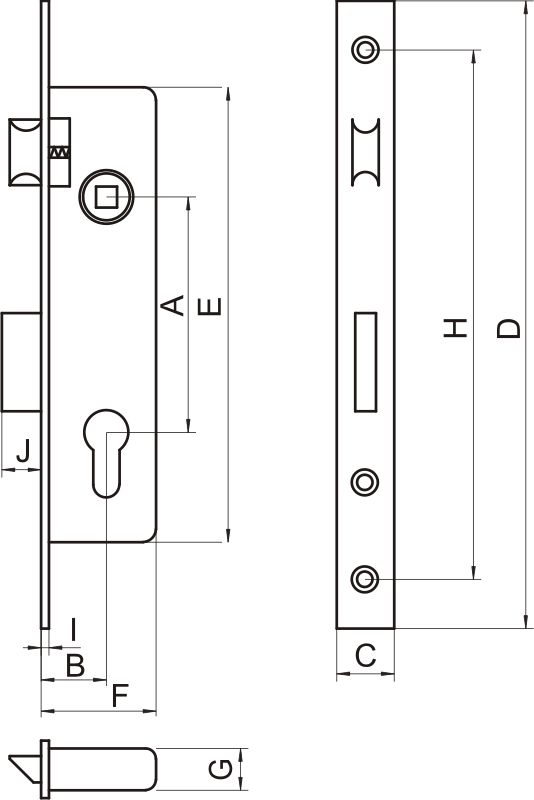

Dimensions (mm)

A

B

C

D

E

F

G

H

I

J

K

flat

Z9220B-2-K1

92

20

22

240

174

37

16

210

3

16

-

Z9225B-2-K1

25

42

Z9230B-2-K1

30

47

Z9235B-2-K1

35

52

Z925B-2-K1

90

25

42

Z930B-2-K1

30

47

Z935B-2-K1

35

52

u-shaped

Z9230B-2UK1

92

30

24

47

6.5

2

Z9235B-2UK1

35

52

Z930B-2UK1

90

30

47

Z935B-2UK1

35

52
